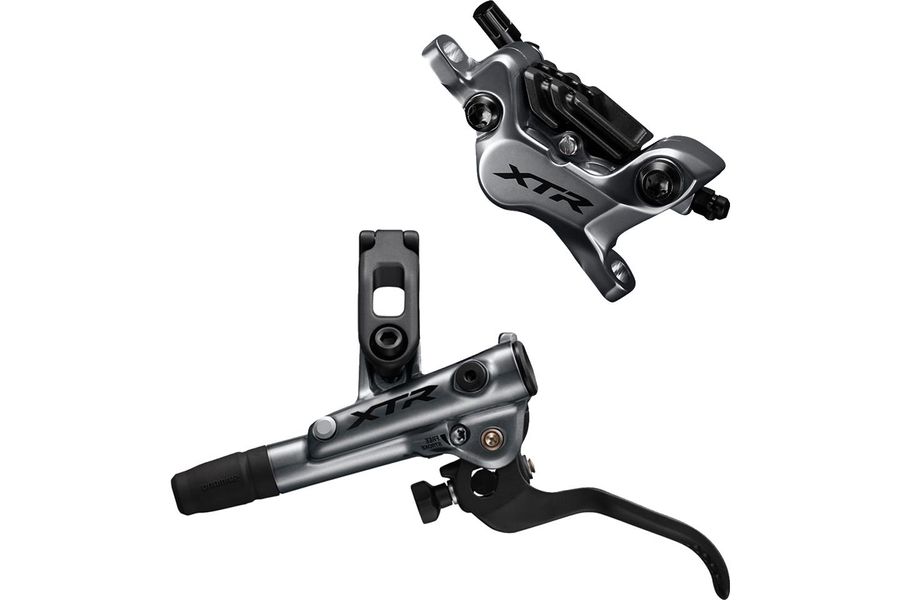

Shimano XTR M9120 Trail (front) 4-piston

Shimano - XTR M9120 Trail (front) (4-piston)

SHIMANOs XTR Trail lever offers in combination with the new Trail brake caliper with 4 pistons Rider Tuned tuned braking power for modern mountain bikes with high power reserves. With the tool-free grip width adjustment and SHIMANOs new I-spec EV standard, the BL-M9120 lever raises the bar again for modern mountain bike brakes a bit higher.

Functional features

• Shorter response times to brake actuation for continuous riding concentration
• Increased flexibility and action-optimized cockpit layout
• Updated brake lever shape
• 8% stiffer than M9000 even at high temperatures
• Faster brake response with shorter idle travel

Product Specification Lever

• Model number: BL-M9120
• Group: XTR M9100 group
• Color: Standard color
• Average weight: 97
• Brake line kit: SM-BH90-SBM
• Brake type: Hydraulic disc brake
• Line connection: Straight
• Compatible shift lever mount: I-SPEC EV
• Idle travel adjustable: yes
• Funnel venting: yes
• J-Kit specification (for OEM): yes
• Lever size (finger): 2
• Oil: SHIMANO Mineral
• Grip width adjustment_tool-less: yes
• SERVO WAVE: yes
• Adjustment range for shift lever rotation angle (I-SPEC EV; degrees): 60

Product Specifications Saddle

• Model number: BR-M9120
• Group: XTR M9100 group
• Average weight: 262
• Caliper Suitable For Ice Technologies pad: Yes
• Brake line kit: SM-BH90-SBM
• Line connection: Banjo
• Pistons: 4
• Recommended brake disc: RT-MT900
• Brake pad standard 1: N03A-Rf resin (With cooling fins)
• Brake pad standard 2: N04C-Mf Metal (With cooling fins)

Scope of delivery

• BL-M9120 lever left
• BR-M9120 4-piston caliper
• Cable 1000mm filled
• 1x set ICE Tech pad with cooling fins
