Park Tool PCS-10.3 Repair Stand

Park Tool PCS-10.3 Repair Stand

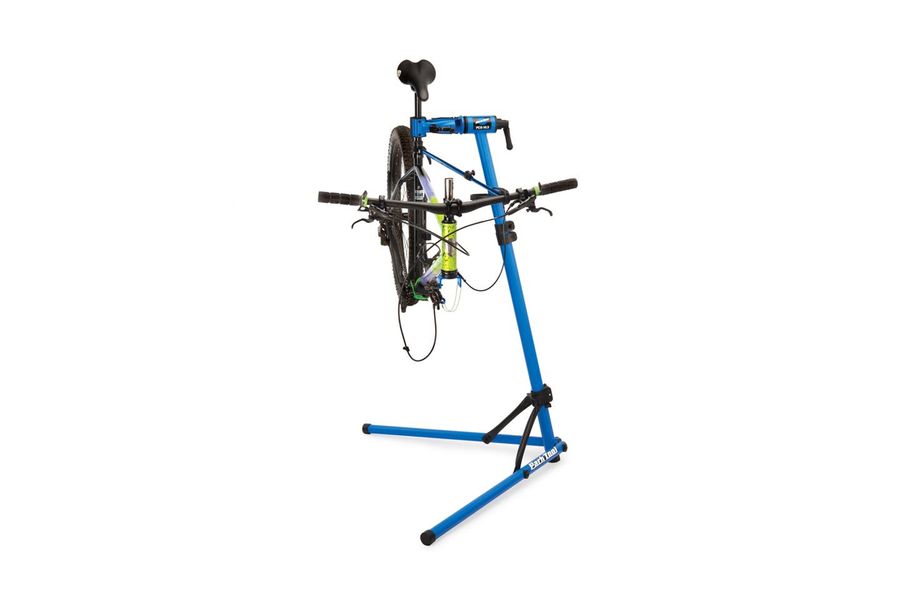

A fully equipped bicycle repair stand, designed and built for the home mechanic. The PCS-10.3 features Park Tool's proven micro-adjustable lever-operated clamp, which allows for quick one-handed entry and exit, as well as a quick-release lever for clamp adjustment for easy and secure adjustment. With 460 mm (18") of height adjustment and 360-degree rotation of the clamp, all parts of the bicycle are accessible to any mechanic, whether sitting or standing.

The steel construction of the stand with teardrop-shaped tubes ensures maximum rigidity and stability, with teardrop-shaped support struts, a lockable support bracket and improved fittings for added reliability. The PCS-10.3 can support up to 36 kg (80 lbs.). The 36 kg capacity provides compatibility for virtually all pedal-powered two-wheeled bicycles, including fat bikes and most e-bikes.

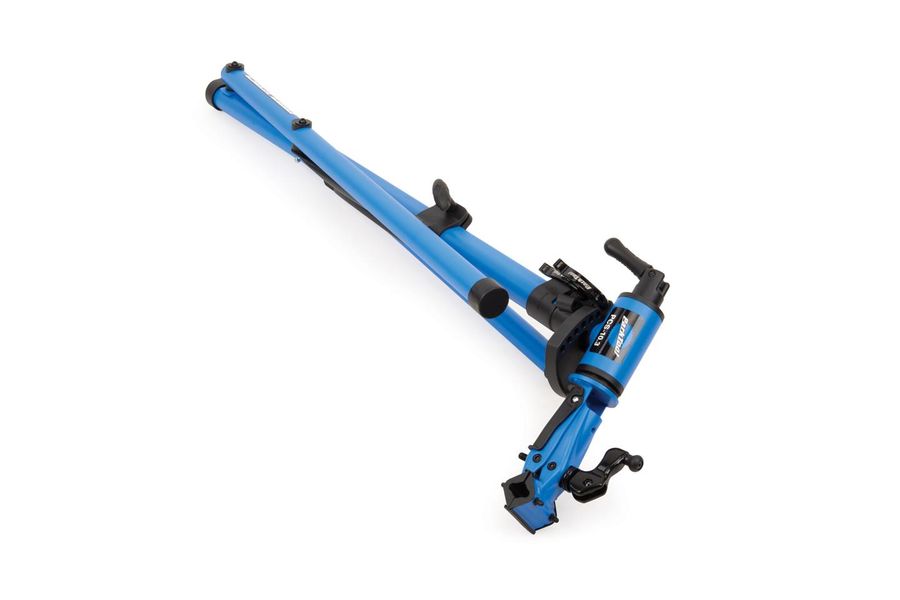

The PCS-10.3 features an integrated, height-adjustable parts tray and accessory ports for the Park Tool #106 Work Tray or PTH-1 Paper Roll Holder (both sold separately), so your tools and small parts are always within reach. The PCS-10.3 folds down quickly for storage and transport. The smooth-operating leg support system pulls both legs up with a simple motion.

The PCS-10.3 is the perfect way to upgrade your home workshop – a stable way to keep almost any bicycle off the ground for adjustments, cleaning and repairs.

Highlights

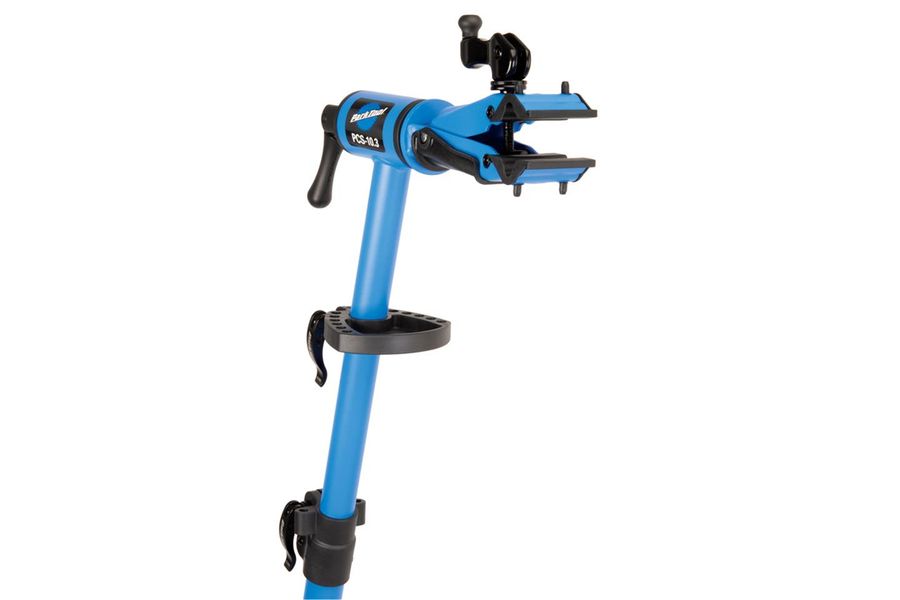

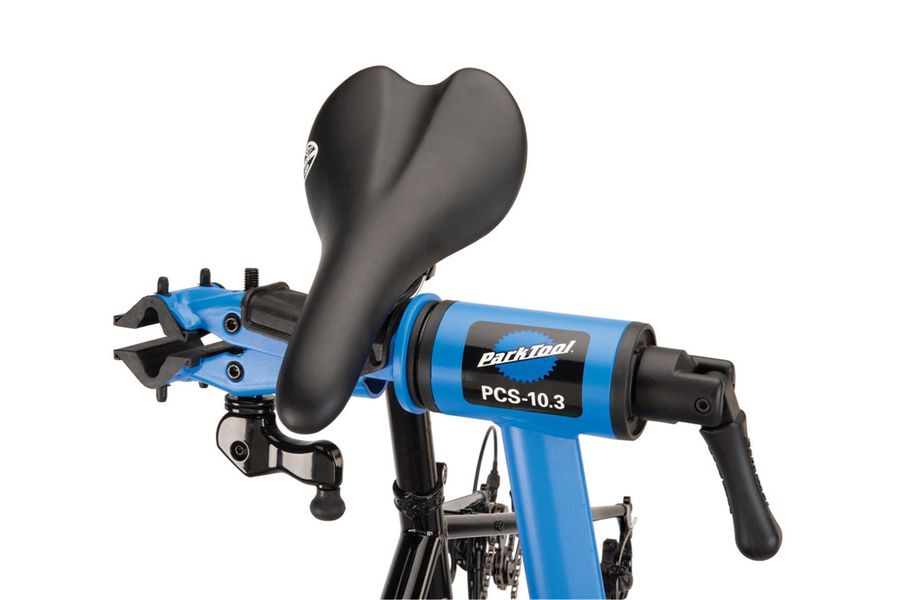

• The world-renowned, cam-operated, micro-adjustable Park Tool clamp allows for quick entry and exit and fits tubes and seat posts with a diameter of 1‘ to 3’ (25mm-76mm) in any shape and material

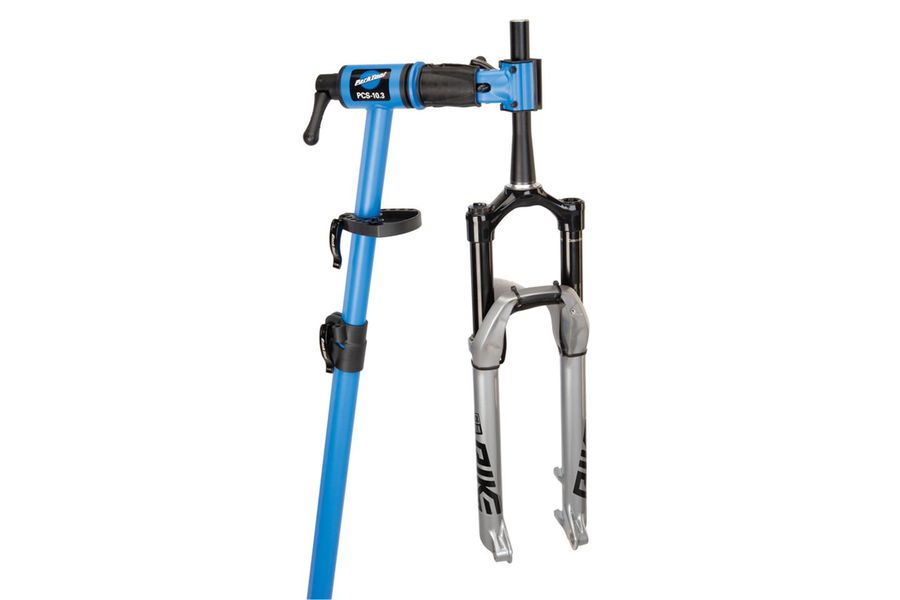

• Narrow clamp jaws (2.7"/7cm) fit in tight spaces or on short seat posts.

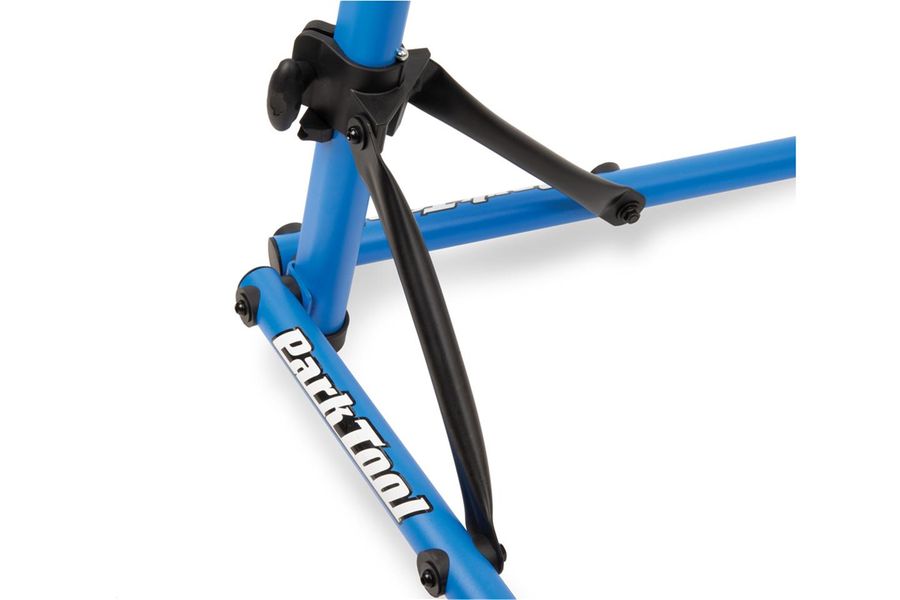

• Teardrop-shaped tubes increase strength and ensure perfect positioning during use and folding.
• Includes height-adjustable compact tray for holding small parts, some tools and the PTH-1 paper towel holder. (optional accessory)

Note: The maximum load capacity of the PCS-10.2 is 80 lbs. (36 kg). This assumes that the weight is centred over the legs.

Details

• Durable, textured powder coating
• Integrated, height-adjustable parts tray
• Maximum weight capacity*: 80 lbs. (36 kg)
• Height adjustable from 990 mm to 1450 mm (39‘ to 57’) with quick-release lever
• When open, forms a triangle measuring 920 mm x 920 mm x 1210 mm (36‘ x 36’ x 48")
• Folds down to 1140 mm x 370 mm (45‘ x 14.5’)

Dimensions

• Weight: 7.20 kg
