Ortlieb Seat-Pack QR (13 litres)

Ortlieb Seat-Pack QR

The waterproof Seat-Pack QR from Ortlieb is the perfect companion for every bike adventure, whether on single trails, Alpine passes or gravel routes. With the innovative Seat-Lock fastening system, the bag made of abrasion-resistant nylon fabric is not only super sturdy, but can also be mounted and removed quickly and without leaving any residue.

Thanks to the adapter clamp, the Seat-Pack QR is even suitable for dropper seat posts and takes up very little space on the dropper post. The internal stiffening and five compression straps ensure that the contents are securely and firmly packed. A valve with a grip loop helps to compress the pack volume, while an elasticated cord on the outside allows you to attach additional equipment. The protective plate on the underside of the Seat-Pack QR not only serves as a mudguard replacement, but also prevents damage in the event of contact with the tyres. So nothing stands in the way of a carefree and well-equipped bike adventure.

Measurements

• Volume: 13 litres
• Dimensions (WxHxD): 48x28x22cm
• Weight: 625g
• Load capacity: 3 - 5kg (depending on mounting position)

Further details

• Waterproof saddle bag with roll closure
• Seat-lock fastening system for quick mounting
• Bag has internal stiffening and four compression straps; thus the contents are very well fixed to the saddle and seat post
• Compatible with standard seatposts between 22 and 35 mm diameter
• Compatible with lowerable seatposts thanks to additional adapter clamp (height: 4.3cm)
• Mounting via lever on the saddle rail and via strong Velcro fastener
• Lightweight, robust PU-coated nylon fabric
• Elastic cord fixings on the upper outside for quick stowage of additional equipment
• Protective plate on the underside prevents damage from tyre contact
• Removable without residue

Compatibility note

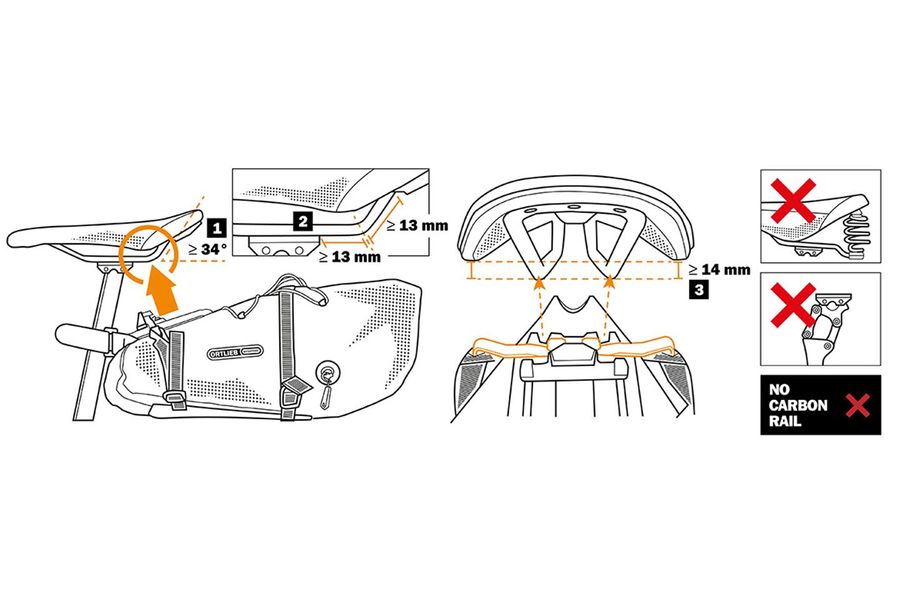

To ensure that your saddle is compatible, check the following points (see illustration):

• The saddle frame must have an incline of at least 34° at the bend point.
• There should be a distance of at least 13 mm from the articulation point of the saddle rails to the saddle clamp and the saddle base.
• The lateral lower edge of the saddle should be at least 14 mm higher than the lower edge of the saddle frame (measured at the articulation point).
• Not compatible are

Carbon saddles

• Suspension seat posts
• Saddles with unusual saddle rails (e.g. SQLab Active, Brooks B67, see point 2)
• Electronic Vario seatposts (e.g. Rock Shox Reverb AXS, Magura Vyron)
• If you still encounter problems during initial assembly, push the Seat Lock System as far forwards as possible towards the seat post and loosen the four locking screws of the system to make it easier to fit the bag. Further information can be found in the operating instructions.

Scope of delivery

• Saddle bag with Seat-Lock fastening system
• Adapter clamp for lowerable seatposts
