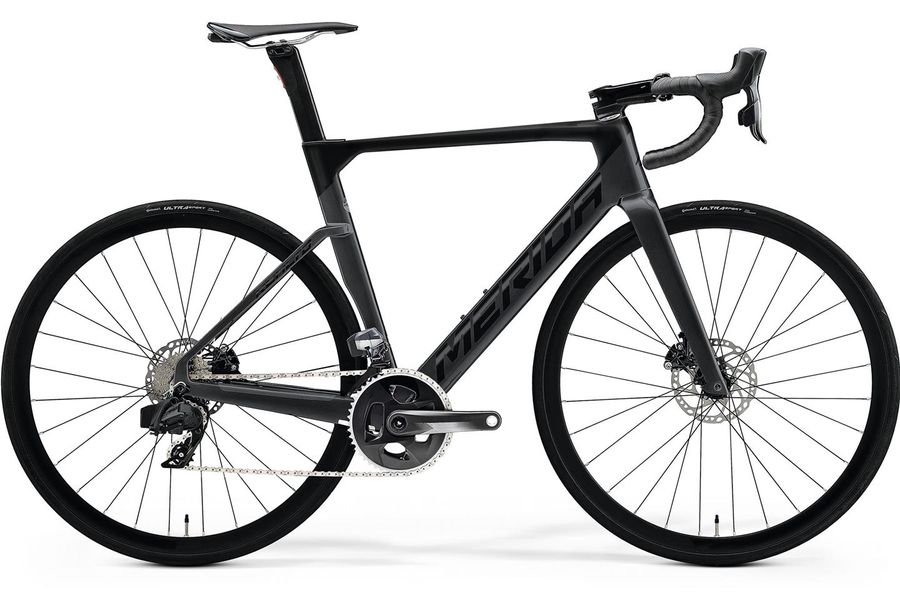

Merida Reacto Rival-Edition (2023)
The REACTO RIVAL EDITION integrates the new wireless Rival group from SRAM and sets standards in terms of lines. While all cables and cables run neatly through the FSA stem and the aero carbon frame, thanks to the wireless setup, there are also no cables on the two rear derailleurs. Perfect aerodynamics paired with impressive handling and remarkable aero bike comfort make the RIVAL EDITION a true aero bike all-rounder.
Highlights
Frame
Carbon
Fork
Carbon
Tires
Continental Grand Sport Race, 700x25C
Wheelset
Fulcrum Racing 800 DB (34mm)
Shifter
Sram Rival eTap AXS (2x12)
Brakes
Sram ED Rival eTap AXS
Additional Information
| General | |
| Bike category | Road Bike |
|---|---|
| Colour | glossy black/matt black |
| Frame | |
| Frame | REACTO CF3 IV, carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard |
| Fork | REACTO CF3 IV Disc, carbon, 700x30C max. wheelsize |
| Headset | FSA ACR |
| Frame type | Diamond |
| Drive | |
| Shift / brake unit | Sram Rival eTap AXS |
| Rear derailleur | Sram Rival eTap AXS |
| Front derailleur | Sram Rival eTap AXS |
| Crank | Sram Rival eTap AXS, 48-35 teeth, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL |
| Chain rings | 48/35 |
| Cassette | CS XG 1250 D1, 10-36 teeth, 12 speed |
| Chain | Sram Rival 12s |
| Brakes | |
| Brake | Sram ED Rival eTap AXS, Hydraulic Disc |
| Wheels | |
| Wheel set | Fulcrum Racing 800 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 34mm height, Centerlock, aluminium, Tubeless ready |
| Tires | Continental Grand Sport Race, 700x25C |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | MERIDA EXPERT CW, aluminium, 380mm (XXS) 400mm (XS-S) 420mm (M) 440 (L-XL) |
| Stem | FSA SMR ACR, aluminium, -6° stem angle, 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL |
| Grips | MERIDA ROAD Expert |
| Seat | |
| Saddle | MERIDA EXPERT SL, V-mount, incl. MERIDA minitool |
| Seatpost | MERIDA TEAM CW, Aero shape, 15mm setback, Carbon |
| Saddle clamp | MERIDA REACTO Aero |
| Other | |
| Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | MERIDA & CENTURION Germany GmbH |
