Mavic Ksyrium 30 Disc Center Lock Shimano
A brand new 30mm deep tubeless friendly rim that’s light and dynamic, laced with double butted spokes on the state-of-the-art Infinity hubs. All the Mavic quality and performance within reach.
Mavic Allroad Disc Center Lock Shimano
The Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating.
By removing the tube, we’ve also removed friction, so there’s less rolling resistance, which means it requires less energy to reach higher speeds.

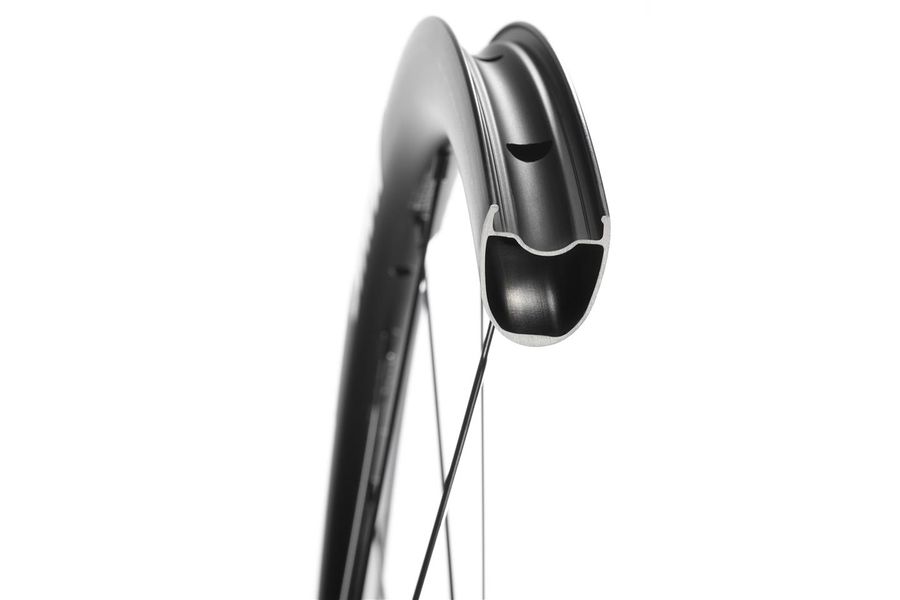

The 30mm deep rim optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. Mavic does this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.
The bladed straight pull spokes are laced to the high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about. The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.
Highlights
- Dynamic and agile thanks to double butted spokes and Infinity hub platform
- Light and aero 30mm deep rims?
- Light double butted flat spokes
Weight
- Total weight : 1796 g
- Front weight : 833 g
- Rear weight : 963 g
Intented use
- Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
- Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)

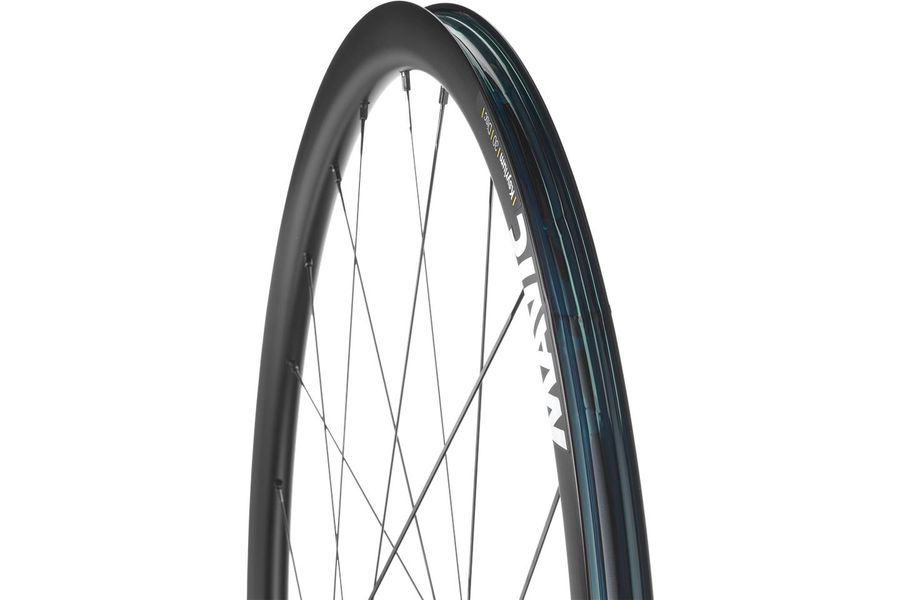

Rims
- Material: Maxtal
- Height: 30 mm
- Joint: SUP welding technology
- Internal width: 19 mm
- Drilling: traditional (front/rear 24 holes)
- Braking: disc
- ETRTO size: 622x19TC
- Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
Spokes
- Material: steel
- Shape: straight, extra-flat, constricted, antirot (front and rear)
- Nipples: steel, ABS, black
- Lacing: crossed 2 (front and rear)

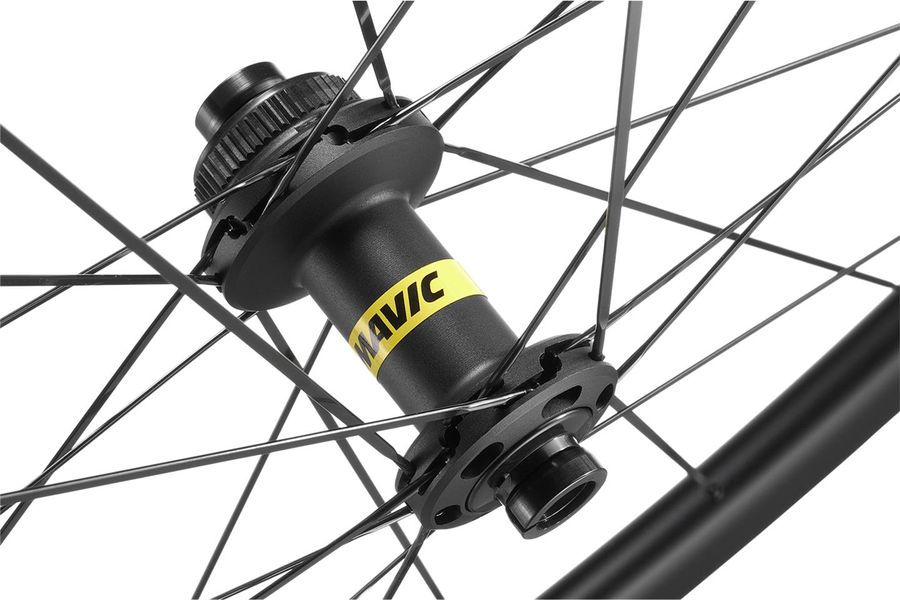

Hubs
- Body material: aluminium
- Body design: INFINITY
- Disc standard: Center Lock® only
- Axle material: aluminum
- Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not included)

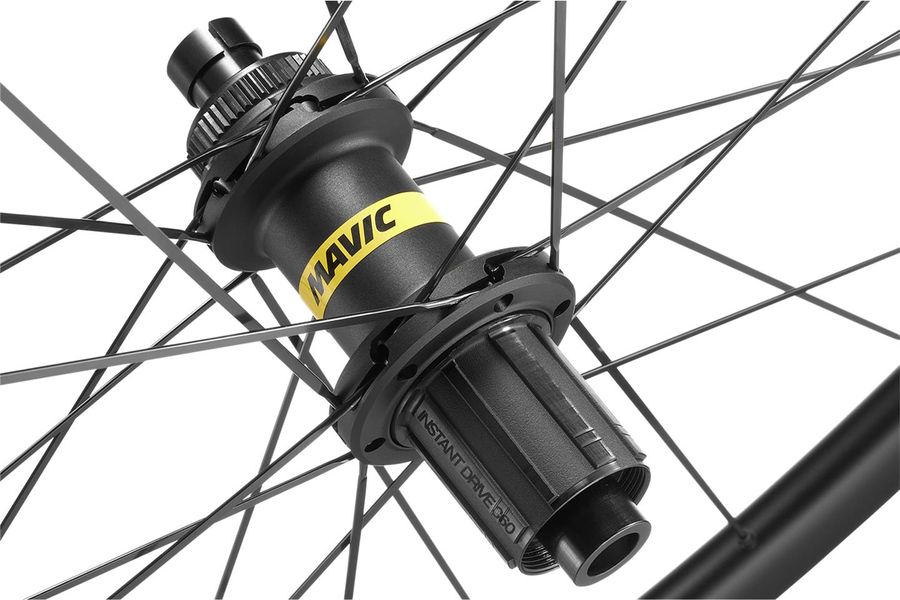

- Freewheel technology: Instant Drive 360
- Freewheel: Shimano HG road
- Bearing technology: QRM automatic setting - sealed cartridge
Scope of delivery
- Rim tape mounted on wheel
- UST valve not mounted on wheel
- Front axle adapter: 12x100 convertible to 9x100
- Rear axle adapter: 12x142 convertible to 9x135
- Multifonction adjustment wrench with the rear wheel
Additional Information
| Manufacturer ID | P00079503 |
|---|---|
| Brand | Mavic |
| Version | Set |
| Wheel size | 28'' |
| Break system | disc break |
| Category | 28", Road Bike |
| Front version | 12x100mm |
| Rear version | 12x148mm |
| Weight | 1796 g |
| Special features | Aluminium, Road Bike, Shimano Freehub, Centerlock Mounting |
| Manufacturer Information | MAVIC GROUP Vereinfachte Aktiengesellschaft |
