Mavic E-Deemax 27,5 6 Bolts SRAM

Mavic E-Deemax 27,5 6 Bolts SRAM

The name E-Deemax has become a reference for E-Bike riders. This new Mavic E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price.

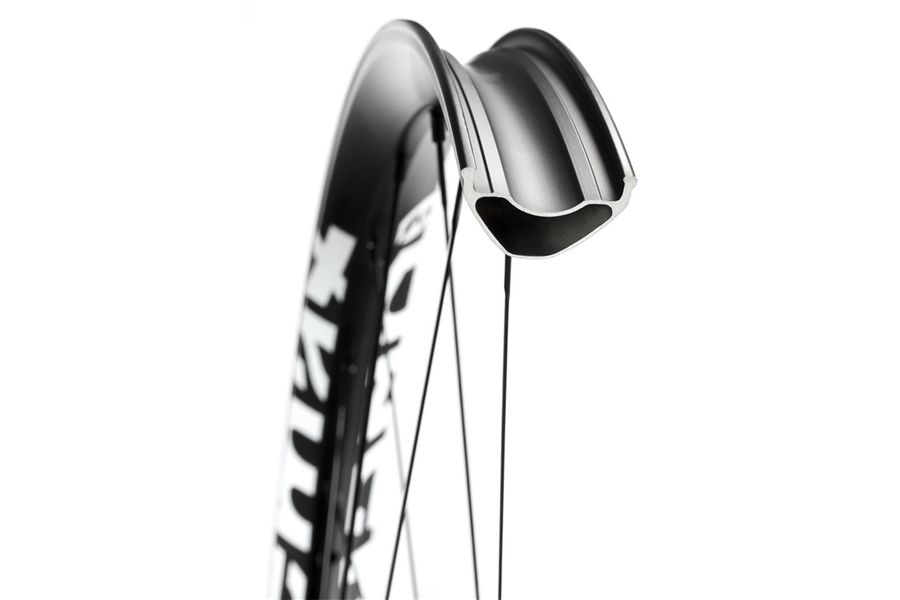

A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
The exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all the E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

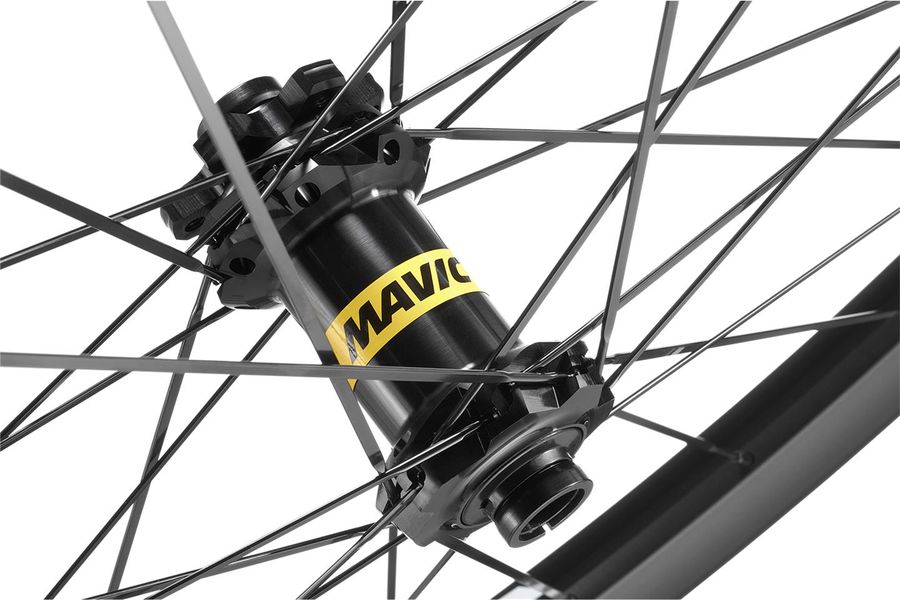

This new generation of E-Deemax is laced on the brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the front and rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette. The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes.

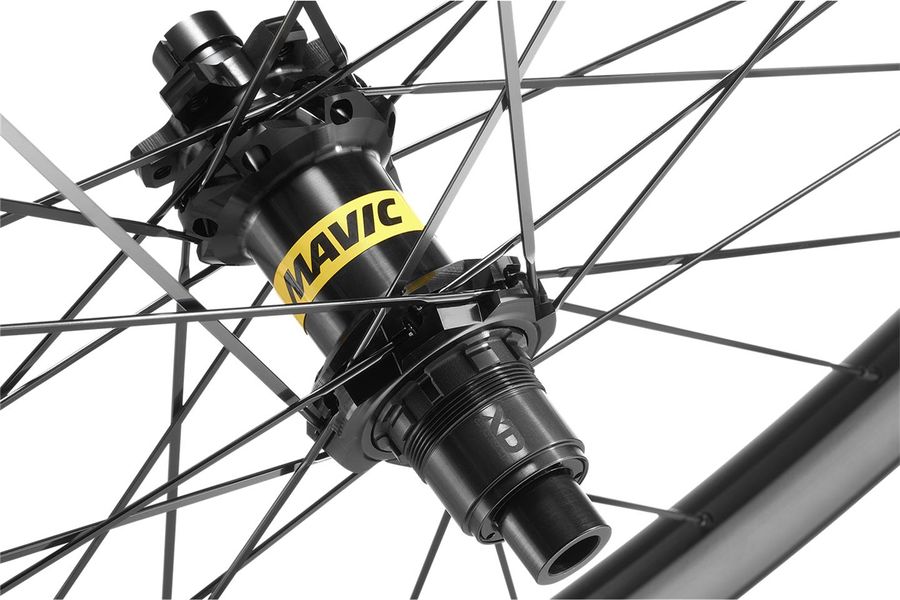

The Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories. Available in 29'' and 27.5''.

Highlights

Weight

• Total weight : 2160 g
• Front weight : 1016 g
• Rear weight : 1144 g

Intented use

• Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
• Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
• Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)

Rims

• Material: Maxtal
• Height: 22 mm
• Joint: SUP welding technology
• Internal width: 30 mm
• Drilling: traditional (front/rear 28 holes)
• Braking: disc
• Profile: asymmetrical
• ETRTO size: 584x30TC
• Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape

Spokes

• Material: steel
• Shape: straight, flat, antirot (front and rear)
• Nipples: steel, ABS, black
• Lacing: crossed 3 (front and rear)

Hubs

• Body material: aluminium
• Body design: INFINITY
• Disc standard : 6 Bolts
• Axle material: aluminum
• Axle size: front 15x110 / rear 12x148
• Freewheel technology: Instant Drive 360
• Freewheel: Sram XD MTB
• Bearing technology: QRM automatic setting - sealed cartridge

Scope of delivery

• Rim tape mounted on wheel
• UST valve not mounted on wheel
• 2 replacement spokes with each wheel
• Multifonction adjustment wrench with the rear wheel
