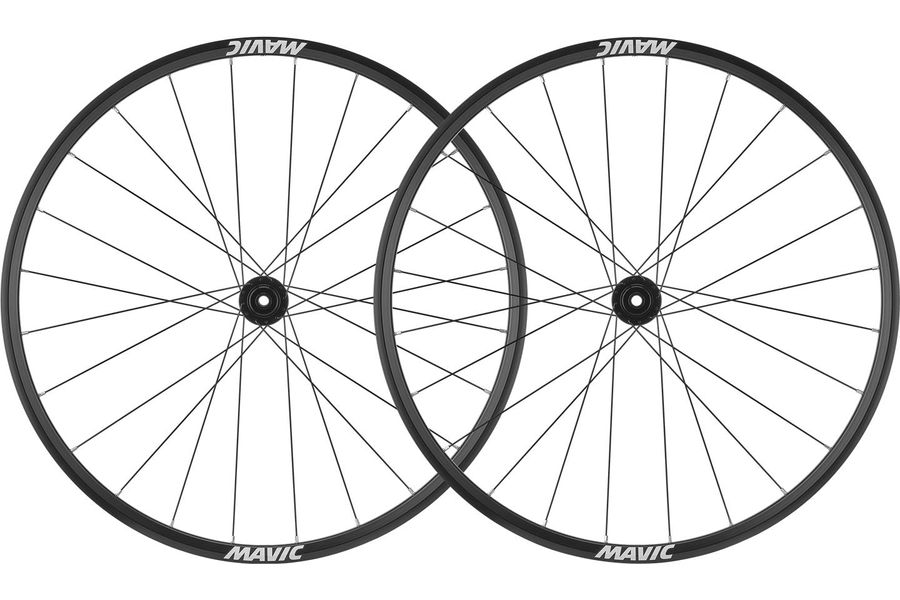

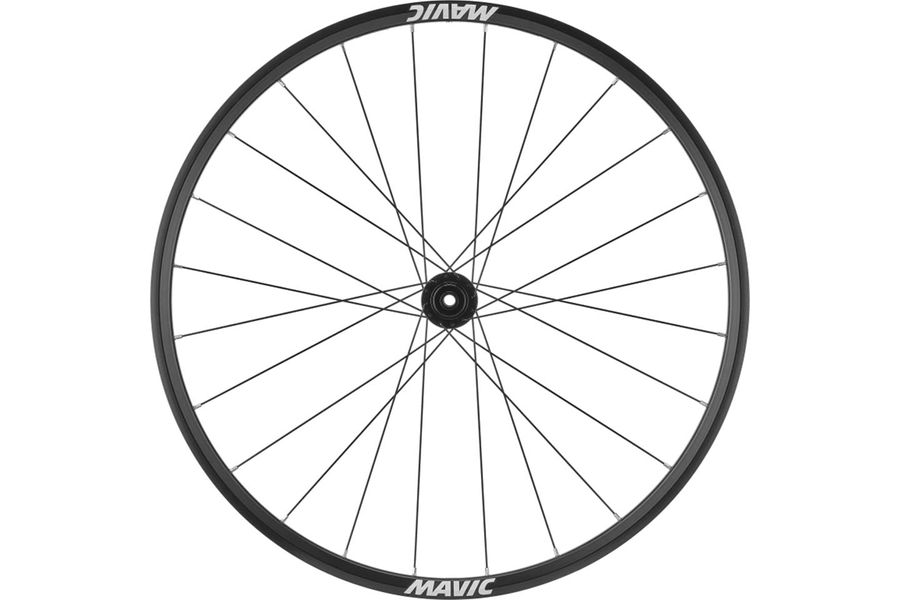

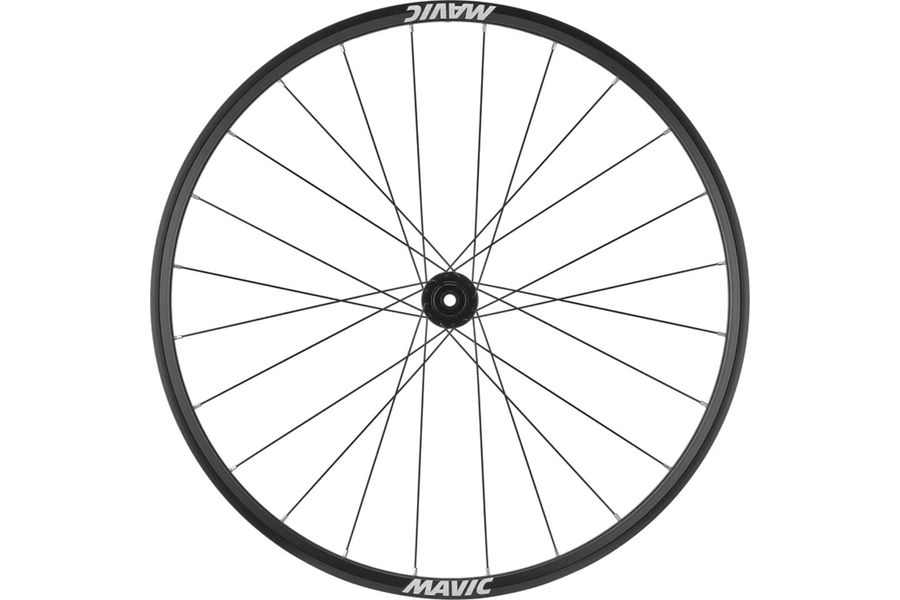

Mavic Access RG22 Disc Center Lock Shimano

Mavic Access RG22 Disc Center Lock Shimano

The Mavic Access RG22 Disc features a wide 22 mm rim, which allows for greater air volume in the tyre, thereby offering lower tyre pressure, greater comfort, and improved grip and traction. The rim is suitable for road and gravel tyres ranging from 28 to 64 mm in width, making it highly versatile. With 24 spokes at the front and rear, the wheel combines stiffness, comfort and reliability – inspired by Mavic’s high-quality wheels. Thanks to the standard curved spokes, a replacement is available quickly and easily in the rare event of a spoke breakage.

Highlights

• 22 mm rim for greater comfort, grip and traction at lower tyre pressure
• Suitable for road and gravel tyres from 28 to 64 mm wide
• Robust construction with 24 standard spokes for high reliability and easy maintenance

Weight

• Pair weight: 2250 g
• Front weight: 1025 g
• Rear weight: 1225 g

Intended use

• Minimum tyre size: Width 25 mm – Pressure max. 6.1 bar/88 PSI
• Maximum tyre size (UST): Width 64 mm – Pressure max. 3.5 bar/51 PSI
• ASTM Category 2: Road and off-road with jumps of less than 15 cm
• Maximum weight carried by the wheels: must not exceed 120 kg (including bike weight)

Rims

• Material: S6000 aluminium
• Height: 25 mm
• Internal width: 22 mm
• Hole pattern: traditional (24 holes front/rear)
• Brakes: disc brakes
• ETRTO size: 622x22TC
• Tyres: tubular

Spokes

• Material: steel
• Shape: curved radius, round (front and rear)
• Nipples: Steel, ABS, single colour
• Spoke pattern: Double-crossed (front and rear)

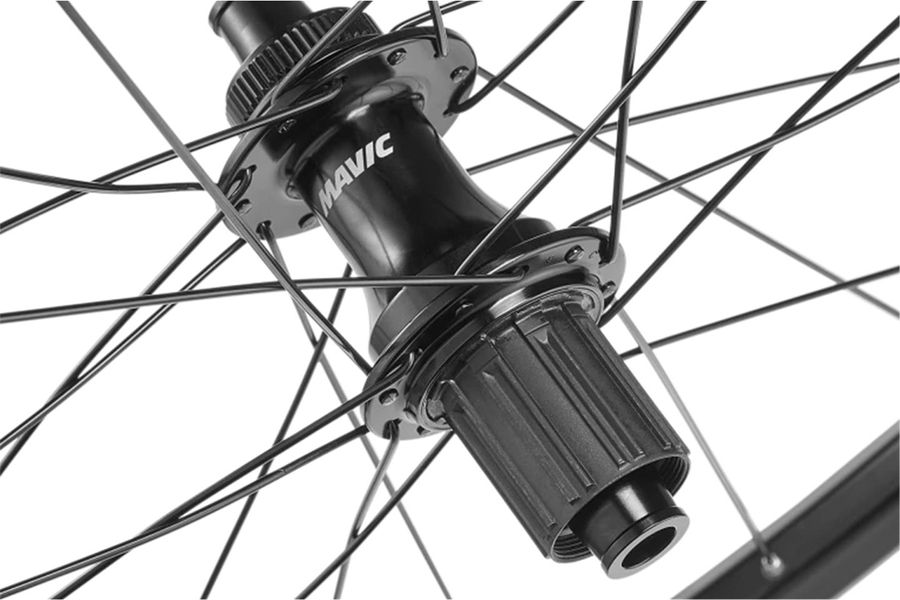

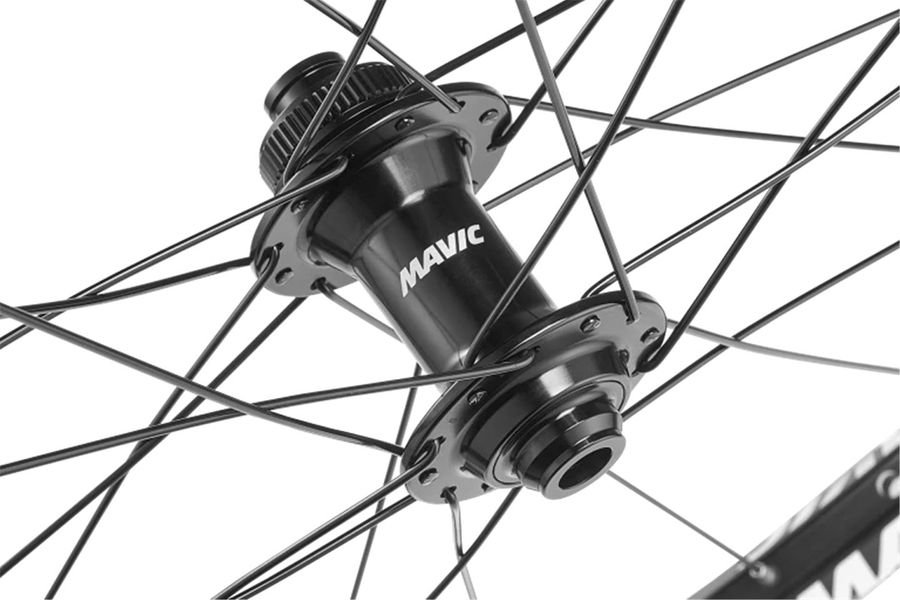

Hubs

• Body material: Aluminium
• Body design: CLASSIC
• Standard disc: Centre Lock only
• Axle material: Aluminium
• Axle size: front 12x100 / rear 12x142 – Convertible to quick-release with adapters
• Freewheel technology: Proven ratchet design
• Freewheel: Shimano HG Road

Scope of delivery

• Access RG22 Disc 28” VR
• Access RG22 Disc 28” HR
• User guide
