Magura Gustav Pro First Edition

Magura Gustav Pro - The new benchmark for e-bike and gravity braking performance

The Gustav Pro is not just a brake - it is a clear statement of uncompromising performance, sophisticated technology and exceptional design. Developed for the highest loads on E-MTBs, SUVs and all-mountain bikes, it brings power, precision and durability to a whole new dimension. The extra-thick brake pads with 94% more volume and the thicker brake discs double the time until the next service. The larger air gap between pad and brake disc makes servicing in your workshop much easier.

Highlights

• Replacement of brake calliper or brake lever without bleeding thanks to pre-filled system
• EasyLink technology for quick installation, removal and shortening of the cable
• Carbotecture brake lever: extremely light, highly stable and manufactured without moulding
• 2.5 mm thick brake discs with 2.1 mm wear limit for double maintenance intervals
• Sensitive brake feel with maximum stability thanks to optimised piston geometry

Maximum control meets uncompromising power

The enlarged pistons (12 mm in the lever, 19 mm in the calliper) offer significantly increased braking force while simultaneously improving sensitivity. In combination with the 2.5 mm thick brake discs, the GUSTAV PRO guarantees maximum stability - even under continuous load in alpine terrain or on heavy e-bikes. Thanks to the optimised pressure level, less power is lost due to cable expansion. The result: a clearly defined, pressure-stable pressure point that allows precise control at all times. The GUSTAV PRO is optimised for use with Bosch ABS applications like no other brake.

Innovations that impress in detail

The Easy Link technology allows the cable to be connected to the brake lever without tools and also makes shortening much easier. Pre-filled, closed components enable replacement without bleeding - a real game changer in practice. The newly developed composite production allows a highly compact, lightweight design with invisible integration such as EASY LINK and Shiftmix clamp. Thanks to the double oil volume in the expansion tank, the GUSTAV PRO rarely needs to be bled, with the new bleed valve ensuring simple and clean bleeding.

The Gustav Pro not only stands for function, but also for form. The 0° cable outlet integrates perfectly into modern handlebar layouts, while the minimalist design with lightweight, robust materials such as Carbotecture and forged aluminium is a real highlight on the cockpit. At the same time, the design reduces the overall weight - despite the massive power reserves.

Technical details

• Area of application: E-MTB, Gravity, SUV, Allroad
• Weight: 348 g
• Number of pistons: 4 (12 & 19 mm)

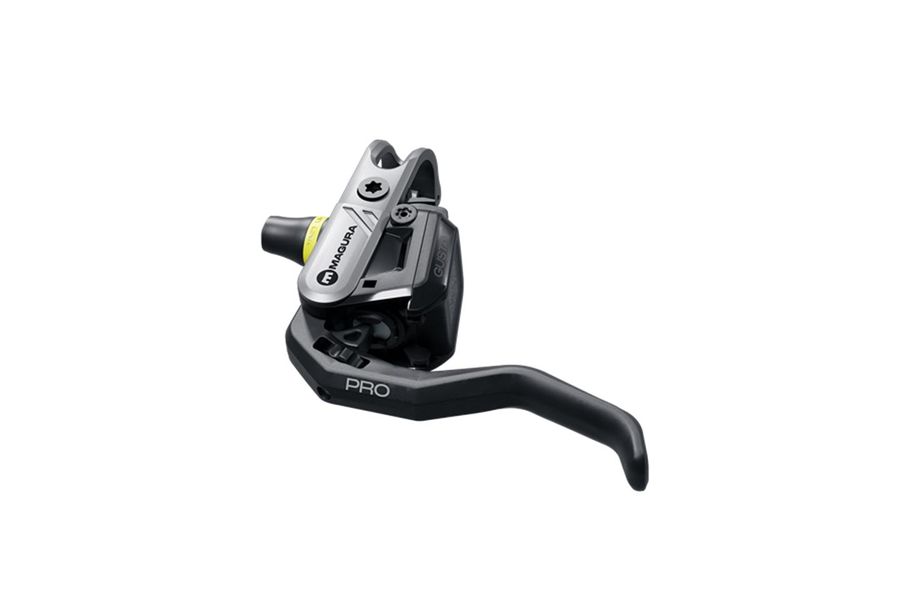

• Brake lever: PRO lever made from aluminium

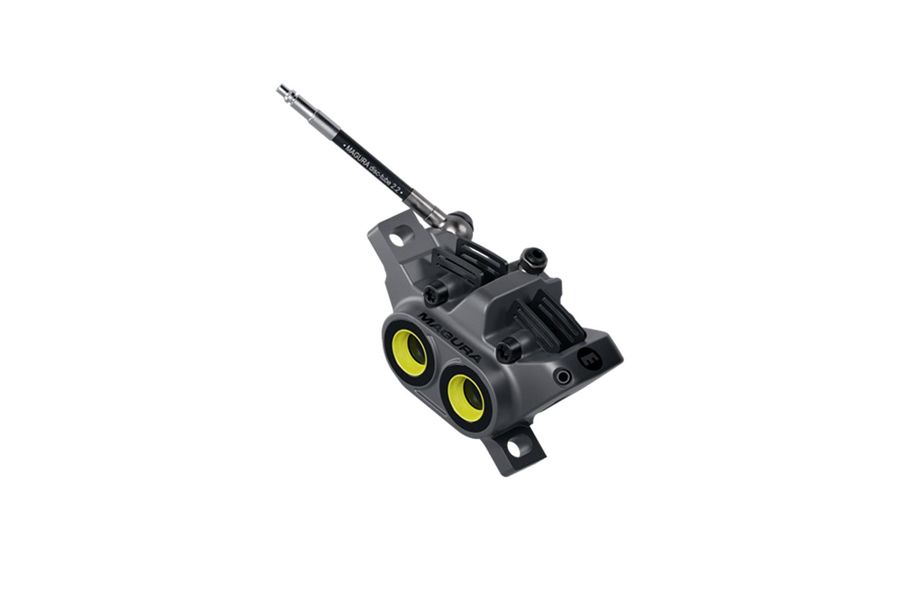

• Brake caliper: 1-piece forged aluminium
• Brake pads: Type 13.S, 94 % more volume
• Cable system: Easy Link (grip), swivelling banjo (calliper)
• Grip width adjustment: tool-free
• Clamp: Shiftmix-integrated
• Warranty: 5-year tightness guarantee

Material

• Brake lever: Carbotecture Composite
• Brake lever & caliper: High-quality aluminium

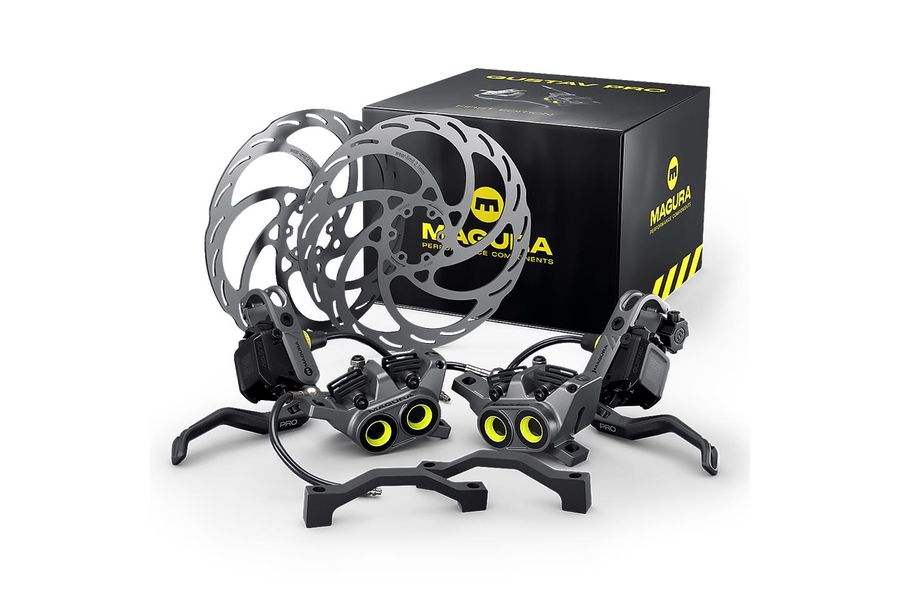

Scope of delivery

• 2x GUSTAV PRO brake
• 2x MDR-S 2.5 203 mm
• 2x QM44 adapter
