Lupine SL Nano StVZO

Lupine SL Nano StVZO

State-of-the-art lighting technology combined with a minimalist, compact design: The SL Nano delivers 700 lumens of glare-free low beam light and an optional high beam with 1,000 lumens, providing safe and clear illumination on every ride. Precision optics and high-quality materials create a light that impresses despite its minimal size. This e-bike front light is available for all common drive systems. The front light works with current drive systems.

Highlights

• Powerful 700-lumen glare-free low beam with uniform illumination
• Ultra-compact lamp head weighing just 52 g
• High-precision lens technology for even light distribution
• Direct connection to the e-bike battery, compatible with numerous drive systems

Note: This version is StVZO-compliant without flashing modes and may be mounted on bicycles in Germany. This version is suitable for handlebar mounting.

Fully focused with glare-free low beam and powerful high beam

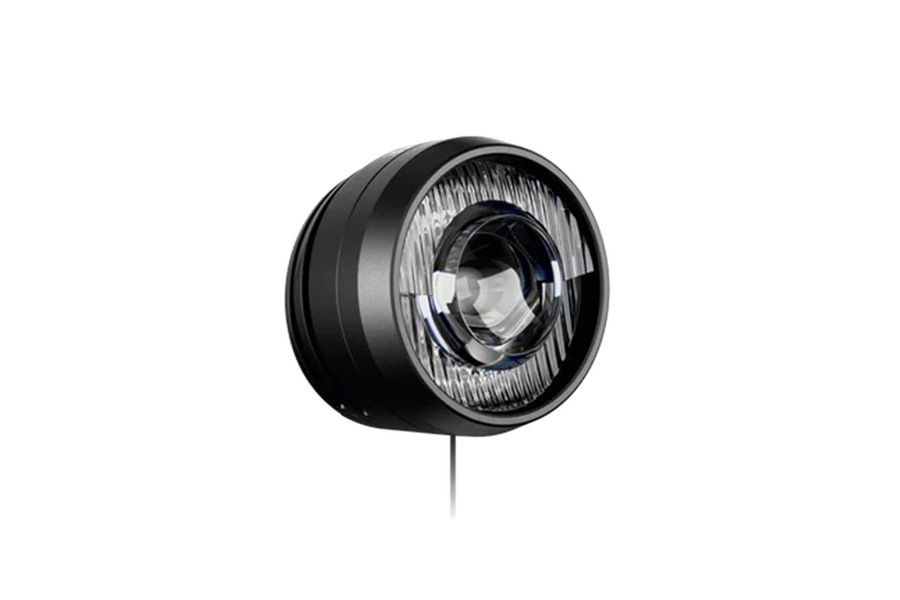

The SL Nano impresses with an exceptionally uniform light pattern and remarkable brightness – despite its compact size. This is made possible by high-precision, specially developed lens technology: Optics made from polycarbonate combine complex freeform surfaces with finely tuned Fresnel elements, creating a light distribution that is unrivalled in this size category – clear, homogeneous and precise.

The glare-free low beam delivers 700 lumens and ensures uniform, safe illumination of the road, allowing obstacles to be easily detected across the entire field of vision. For additional range and maximum visibility, a high beam with up to 1,000 lumens is available (SL Nano F only). Switching between lighting levels takes just seconds using the wired remote control specially developed for e-bikes. The coloured illumination of the button indicates the active mode – green for low beam, blue for high beam.

Compatible with almost every e-bike system

The SL Nano was developed for common e-bike drive systems such as Bosch, Brose, Shimano, Yamaha and many others. Connected directly to the motor's light output, the front light draws its power from the e-bike battery. The integrated electronics automatically adjust the power to the respective voltage. This ensures high compatibility with almost all common drive systems and consistently optimal light output.

As soon as the motor is activated, the SL Nano switches on automatically, ensuring immediate visibility and maximum safety from the very first metre. A compact and powerful lighting solution that integrates seamlessly into existing e-bike systems and provides reliable illumination at all times.

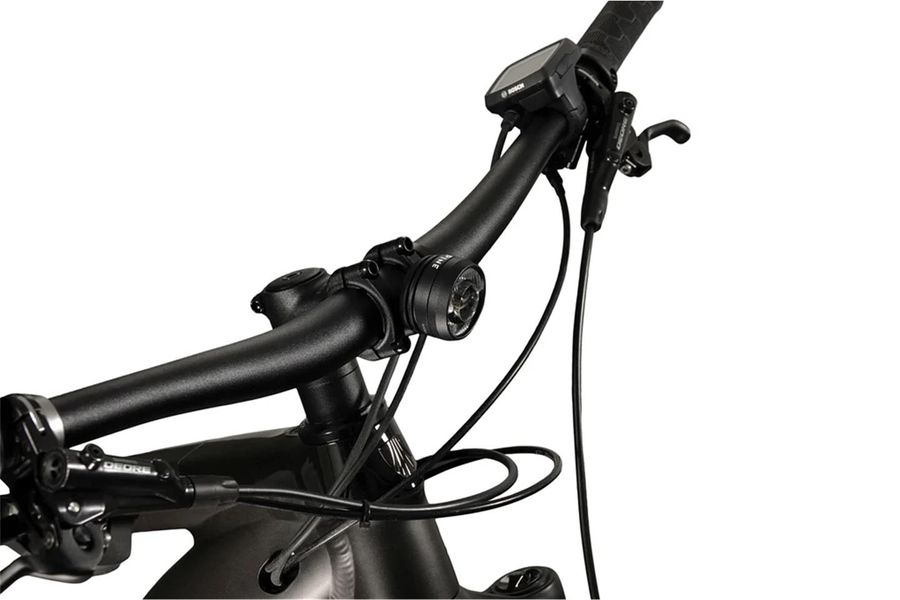

Secure mounting with a clamp

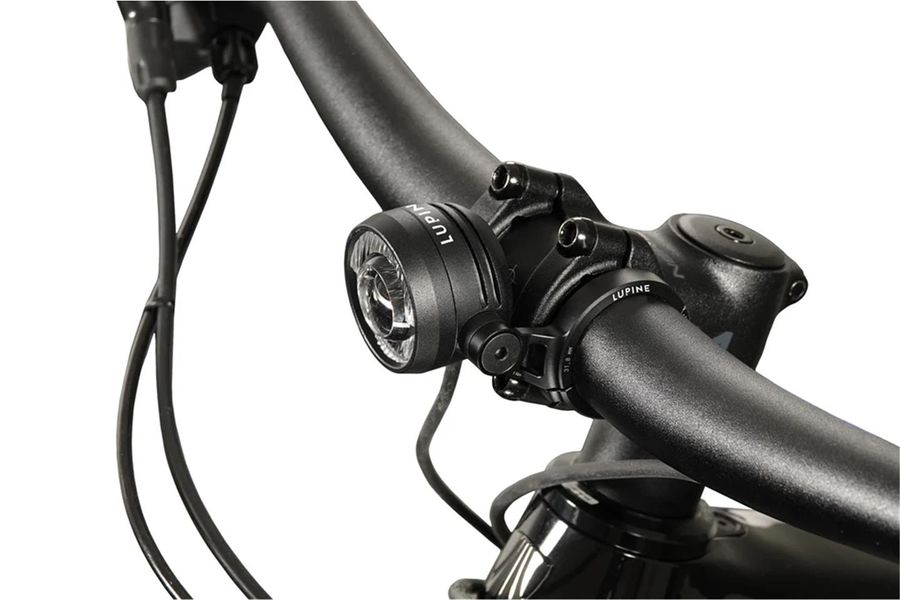

Lupine offers flexible mounting options for the SL Nano to suit different types of e-bikes. The universal two-piece clamp allows direct mounting on the handlebars. Elaborately CNC-machined from aluminium and black anodised, the clamp ensures a firm and secure hold for the e-bike light, even under heavy vibrations. The special Classic Mount version is mounted directly on the fork crown, positioned just above the mudguard, freeing up space on the handlebars for accessories such as a bike computer or basket. Both versions combine stability, functionality and a clean appearance. Alternatively, a GoPro adapter and the Flexmount bracket are also available, allowing the distance between the light and the stem to be adjusted within a certain range.

Technical data

• Lumens: 700 lm
• Weight: 52 g
• Dimensions (LxWxH): 30 x 41 x 41 mm
• Protection rating: IP68 (water resistance), IK09 (impact resistance)
• Material: CNC-machined aluminium (6061-T6), black anodised
• Approval: StVZO

Scope of delivery

• Lupine SL Nano StVZO front light
• Tools, O-rings and screws
• Operating and installation instructions

Attention

The quick-release mount is not included in the scope of delivery and must be ordered separately.

• Lupine Flexmount handlebar mount 31.8 mm
• Lupine SL Nano handlebar mount Ø 31.8 mm
• Lupine SL Nano handlebar mount Ø 35 mm

The Lupine SL Nano is sold without a motor connection cable.

• Lupine motor connection cable Bosch BES3 front light
