Lupine SL Nano 31.8mm

Lupine SL Nano for e-bikes

The Lupine SL Nano is a compact and powerful lighting solution for e-bikes that is ideal for road traffic. With up to 1,000 lumens of high beam and a range of 230 metres, it offers outstanding visibility. The glare-free low beam (700 lumens) ensures clear visibility without disturbing oncoming traffic. The wired remote control makes it easy to switch between low beam and high beam. The CNC-milled aluminium housing ensures robustness, heat resistance and weather protection.

Technical data

• Light output: 1,000 lumens, 130 lux
• Range: 230 m
• Colour temperature: 6000 K (daylight white)
• Weight: 52 g
• Dimensions: 41 x 30 mm
• Protection class: IK09, IP67 (impact-resistant, waterproof)
• StVZO approval: Yes (~K1797)

Features

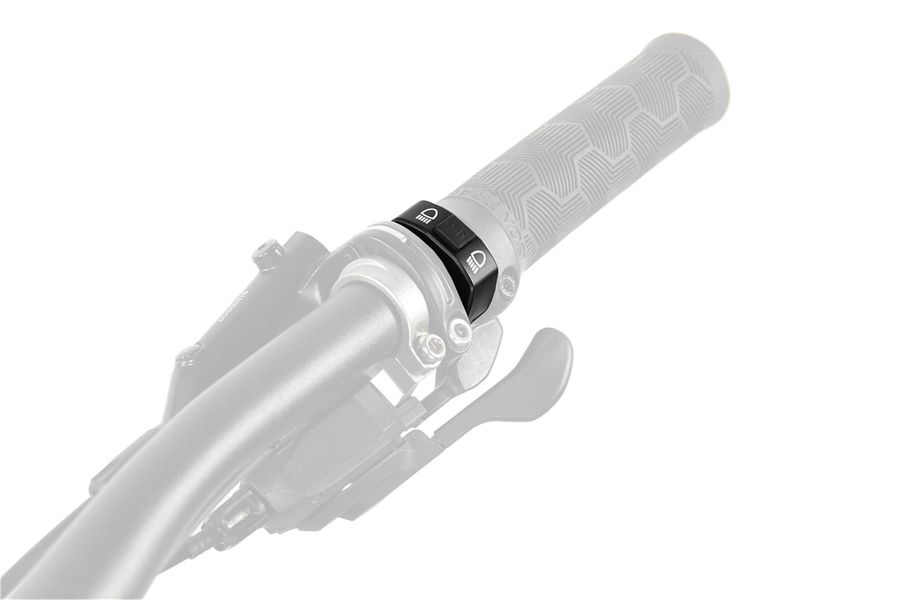

• Wired remote control for easy light change
• Automatic activation when the e-bike motor is started
• Robust, CNC-milled aluminium housing

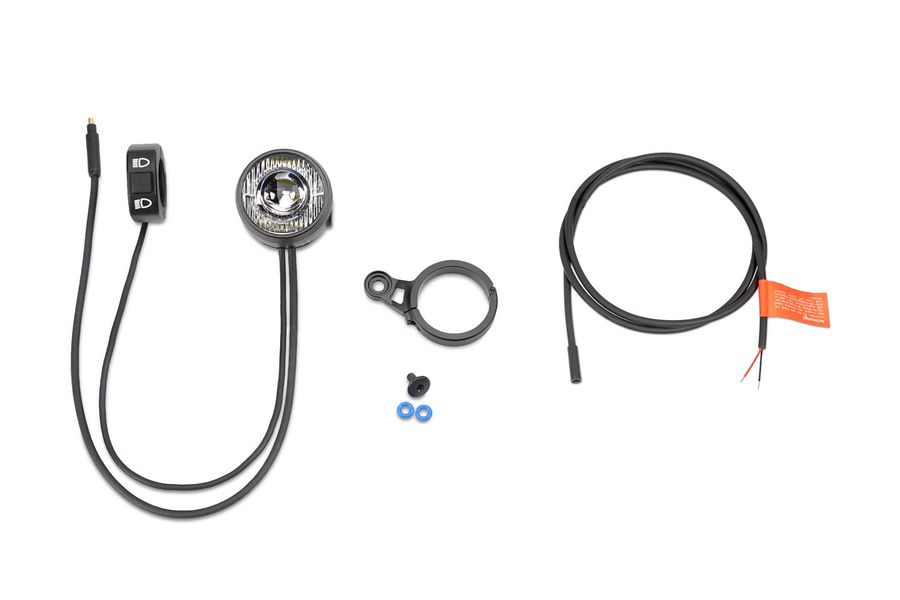

Scope of delivery

• SL Nano lamp head
• Aluminium handlebar mount
• Wired remote control
• Bracket screws and hexagon spanners (6 and 15)

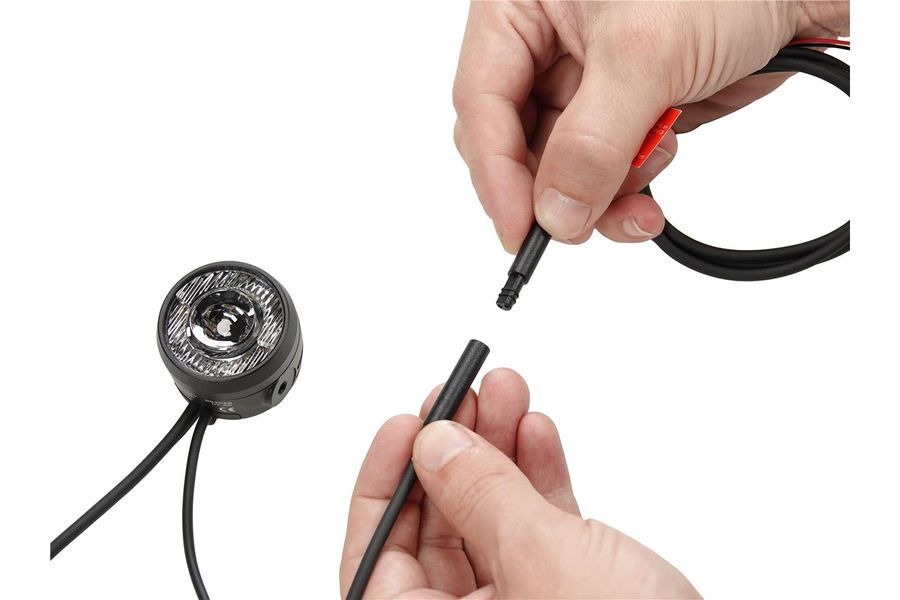

• Light cable with open strands
• Operating instructions

Note: The Light cable set for e-bikes BES3 is mandatory for connection to BES3.
