Lupine SL F StVZO

Lupine SL F StVZO

The Lupine SL F for e-bikes combines sensor-controlled daytime running light, glare-free low beam with 850 lumens and a powerful 1,300-lumen high beam in a robust, CNC-machined aluminium housing. The precise Dual Aspheric Lens System ensures a wide, homogeneous light pattern with a clearly defined light-dark boundary and impressive range. With IP67 protection, compact dimensions and an elegant design, the SL F stands for maximum visibility and lighting quality at the highest level. The front light works with current drive systems.

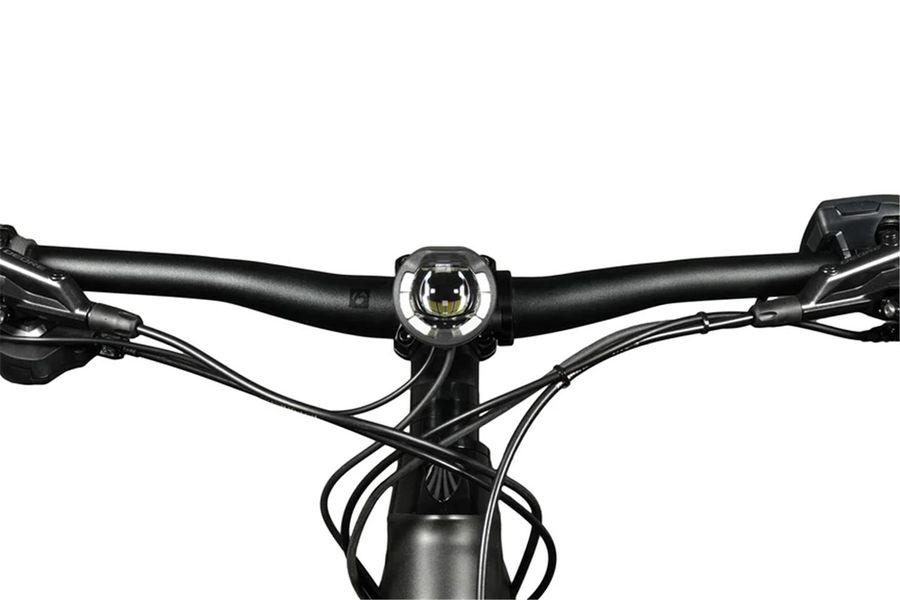

Note: This version is suitable for handlebar mounting.

Highlights

• Up to 1,300 lumens high beam
• Up to 210 m range
• Sensor-controlled daytime running light
• StVZO approved
• Robust CNC-machined aluminium housing

The Lupine SL with wide, defined illumination

Defining precision in form and function for modern e-bike lighting: the SL F combines sensor-controlled daytime running light, glare-free low beam and powerful high beam in a precisely manufactured housing made of anodised CNC aluminium. Every component is designed for maximum efficiency, durability and lighting quality.

Powerful low beam and balanced light characteristics

For constant visibility in all lighting conditions, the integrated daytime running light of the SL F for e-bikes ensures you remain clearly visible. The low beam with a clearly defined light-dark boundary and a powerful 900 lumens provides even and safe illumination in road traffic. For maximum visibility, the 1,300-lumen high beam extends the field of vision far ahead and to the sides. A range of up to 210 metres provides full control on unlit roads, outside built-up areas, on descents and trails.

The light characteristics of the SL F are balanced and natural. The precisely tuned Dual Aspheric Lens System distributes the light evenly across both near and far areas, creating a homogeneous, high-contrast carpet of light. Compared to the compact SL Nano, the SL F offers significantly wider and brighter illumination, providing greater safety and orientation, especially at higher speeds and in changing light conditions.

Ideal addition to any high-quality e-bike

The housing is made of anodised 6061-T6 aluminium and meets the IP67 and IK09 protection classes. This makes the SL F for e-bikes resistant to dust, water and impacts and suitable for demanding conditions. It is controlled via a remote control with a colour LED indicator that shows the active light mode. Extensive compatibility with common e-bike drive systems such as Bosch, Brose, Shimano and Yamaha is of course ensured.

Wide range of applications and versatile mounting options

Thanks to its versatile light characteristics, the SL F is equally suitable for e-city and urban bikes, light e-MTBs and e-trekking bikes. The glare-free low beam provides clear visibility in urban traffic, while the high beam delivers wide and far-reaching illumination on trails and country roads. Several mounting options are available for different types of e-bikes: the robust, two-piece handlebar clamp made of CNC-machined aluminium, the compact Classic Mount version for mounting on the fork crown, as well as an optional GoPro adapter and Flexmount bracket for individual positioning. All versions combine stability, functionality and a clean design.

Technical Data

• Lumens: 1300 lm
• Lux: 110
• Weight: 100 g
• Dimensions (LxWxH): 49 x 50 x 48 mm
• Protection class: IP 68 (water resistance), IK 09 (impact resistance)
• Material: CNC-machined aluminium (6061-T6), black anodised
• Approval: StVZO

Scope of Delivery

• 1x Lupine SL F StVZO lamp head

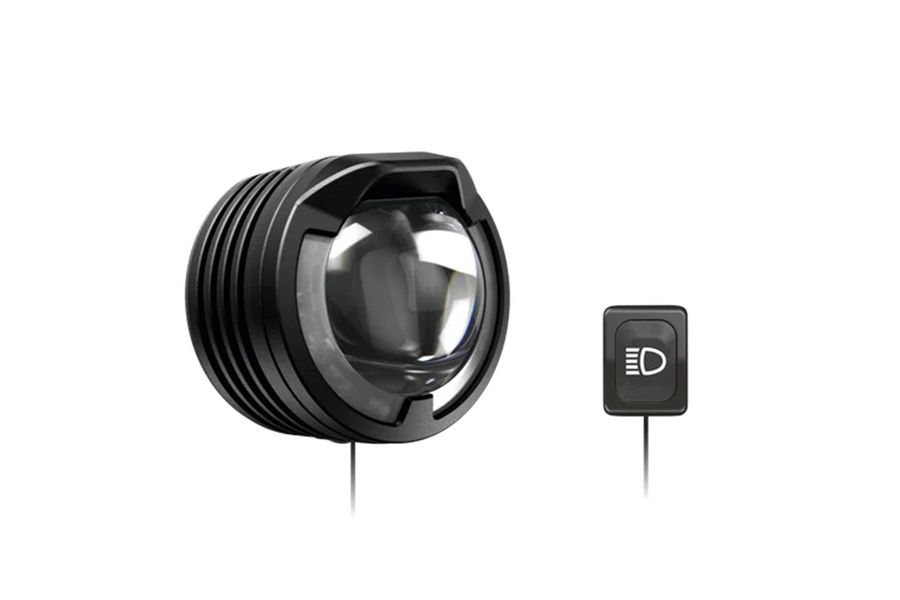

• 1x Lupine SL wired remote control
• Tools, O-rings and screws
• Operating and installation instructions

Attention

The quick-release mount is not included in the scope of delivery and must be ordered separately.

• Lupine Flexmount handlebar mount 31.8 mm
• Lupine SL F handlebar mount Ø 31.8 mm
• Lupine SL F handlebar mount Ø 35 mm

The Lupine SL F is sold without a motor connection cable.

• Lupine motor connection cable headlight for Bosch BES3 Headlight
