Lupine C14 SP Bremslicht StVZO

Lupine - C14 SP Brake light StVZO

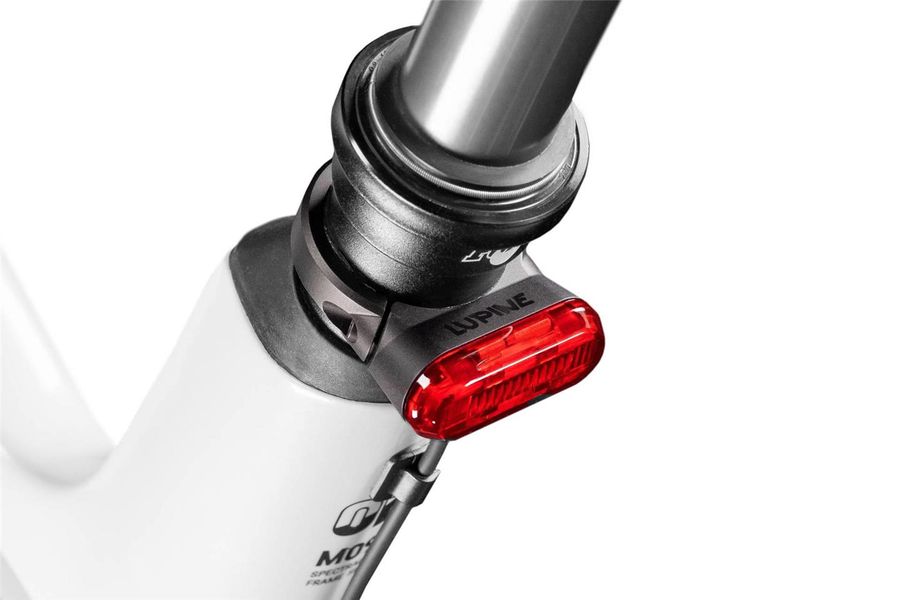

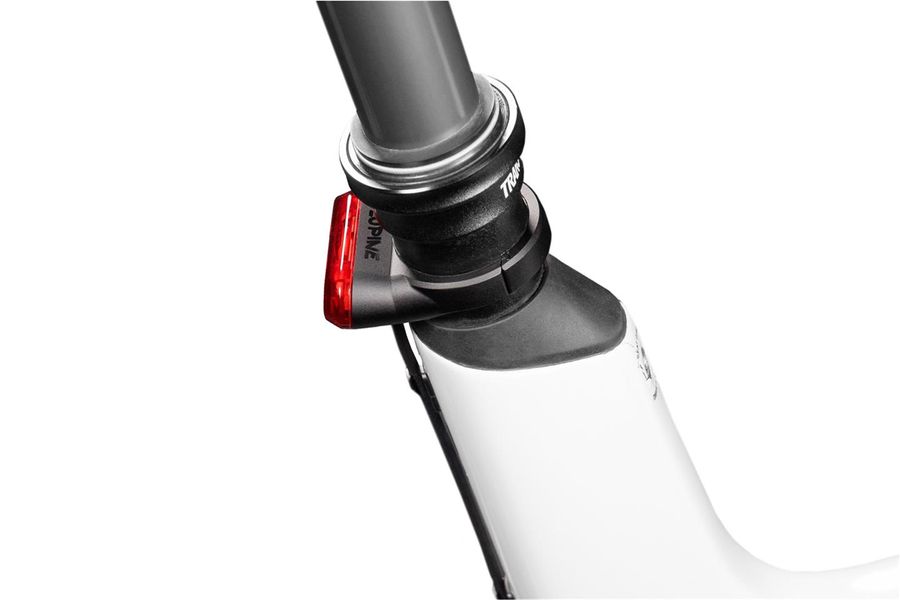

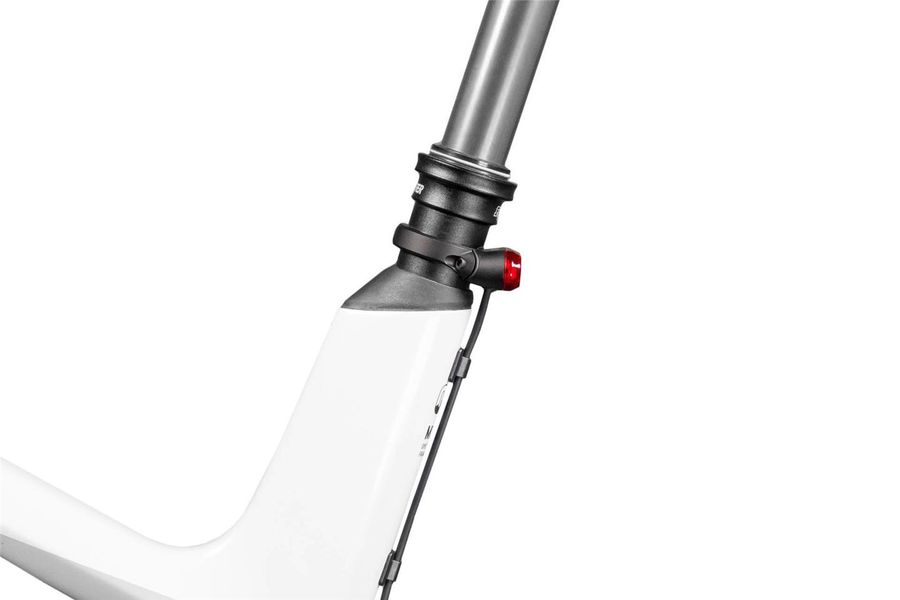

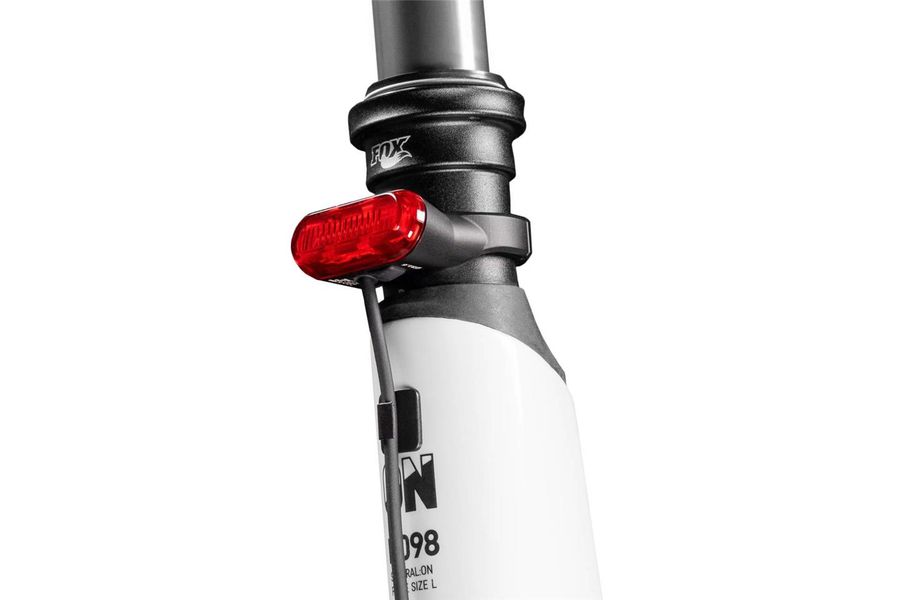

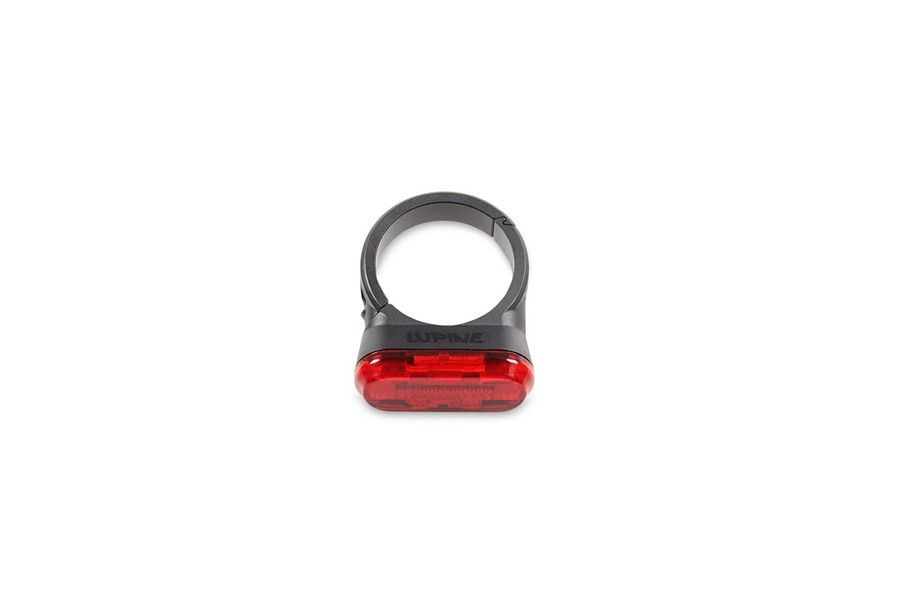

Introducing: The Lupine C14 rear light for e-bikes. This version can be easily mounted on your seat post like a saddle clamp. With StVZO (German Road Traffic Licensing Regulations) approval and a high IP68 (waterproof) and IK09 (shockproof) rating, the light is the perfect choice for every e-biker.
With 45 lumens, the rear light offers high luminosity and is made of black anodised, CNC-machined aluminium. The optics are made of robust polycarbonate and are therefore particularly durable. Thanks to the latest chip technology and powerful lenses, the C14 SP offers high visibility with reduced glare. The special arrangement of the 14 LEDs and the sophisticated lens system ensure particularly homogeneous light characteristics. The high luminosity of 45 lumens offers one thing above all: safety.
The C14 SP can be connected directly to the motor of the e-bike and is compatible with all current e-MTBs. For mounting on Bosch, Brose and Yamaha motors, an adapter cable is also required.
The scope of delivery includes inlays that increase the circumference from 30.9 to 31.6 mm. The two-piece clamp of the C14 SP allows for easy and quick mounting without disassembling the seat post.

• Assembly note: For connection to the Bosch BES3 system, an additional tail light cable is required.
• Taillight for e-bikes

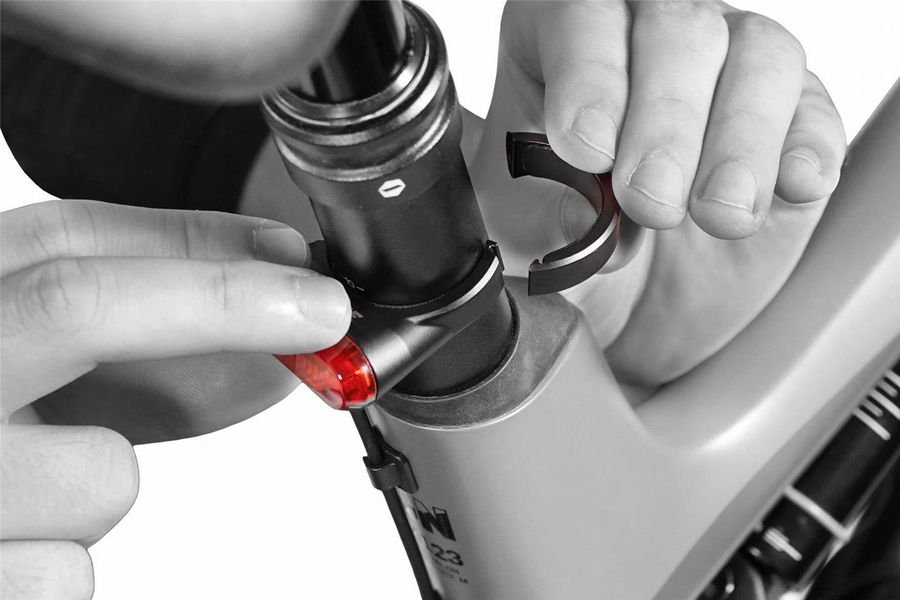

• Quick and easy installation with two-piece clamp
• StVZO approval, IP68 (waterproof), IK09 (shockproof)
• 45 lumen luminosity
• Black anodised, CNC-machined aluminium, robust polycarbonate optics
• Can be connected directly to e-bike motor
• Compatible with all current E-MTBs (depending on the motor, an adapter cable is required)

Technical data

• Material: aluminium 6061-T6, shot-peen, CNC-milled, black anodised
• Weight: 35g
• Recommended for: E-bikes: Bosch/Brose/Shimano/Yamaha
• Protection class: IP 68/IK09
• Power: 0.8W
• Input voltage: 6 - 12V (DC)
• Connections: stranded wires
• Functions: Continuous light, stop light
• Lens: Fresnel
• Light source: 14 COB LEDs
• Ambient temperature: -25°C to +70°C
• Connection cable: 80cm
• Operation: on-board computer/ button on rear light
• Colours: black
• StVZO approval: ~K1660

Scope of delivery

• C14 SP tail light with light cable
• Inlays for circumference enlargement from 30.9mm to 31.6mm
• 3x 3M cable guide
• Hexagonal spanner 2,5mm
• Instructions
