Herrmans H-Black MR8, LED
Aluminium
Suntour Mobie25 Air, lockout (63 mm)
Shimano Deore (1x10)
Shimano MT420/MT400 (180/180)
Bosch Performance Line (65 Nm) - PowerTube (625 Wh)

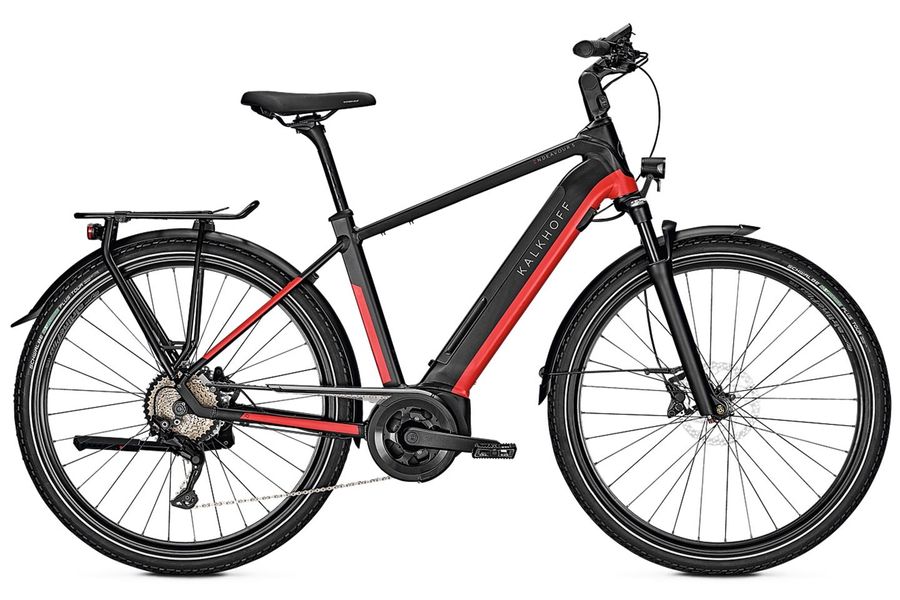

The Kalkhoff Endeavour range stands for comfort, style and versatility. With the Endeavour 5.B you can do everything: Completely replace your car in everyday city traffic. Or set off on an exciting weekend trip across the country. In any weather and even if you're not a competitive athlete. Because thanks to the support of the Bosch electric motor, you can break through your limits and discover new paths. Even where you think you know everything. A battery with 625 watt hours ensures that you don't have to worry about stamina. A multi-adjustable stem with integrated cable guide ensures a comfortable and variable seating position. The Shimano disc brakes work reliably with mineral oil and are unrivalled in their ease of maintenance. Combined with the latest generation of Bosch drive, this turns every challenge into pure driving pleasure.
The Kalkhoff Endeavour series is in a league of its own, not only technically but also visually. The e-bikes are developed as an overall concept. That's why the frame and drive system look as if they were cast from the same mould. Bosch's new InTube technology makes it possible to integrate a powerful battery with 625 watt hours into a slim down tube. Thanks to the high quality standards at Kalkhoff, you can rely on a precisely machined aluminium frame. Organic tube cross-sections ensure stability where it's needed. For example on the Motor Interface, which ensures a low centre of gravity and therefore high driving stability. The air suspension fork from Suntour is lockable. And for daily use, the Endeavour 5.B Move comes with roadworthy equipment that complies with the German Road Traffic Licensing Regulations.
Bike category | Trekking E-Bike |
---|---|
Brand | Kalkhoff |
Colour | fire red/magic black matt |
Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
Wheel Size | 28'' |
Frame | Integrale 0.5, aluminium |
Frame type | Diamond |
Fork | Suntour Mobie25 Air, lockout, 15 mm thru axle, 63 mm |
Rims | Road Airline Plus, with eyelets |
Cassette | Shimano Deore, 10-speed |
Front hub | Shimano Alivio MT400, 15x100 mm with QR |
Rear hub | Shimano Alivio MT400, 12x142 mm thru axle |
Tires | Schwalbe Energizer Active Plus, 50-622 |
Shifters | Shimano Deore |
Rear derailleur | Shimano Deore |
Crank | aluminium |
Chain | Shimano CN-HG54 |
E-Engine | Bosch Performance Line 36 V / 250 W / 65 Nm |
Battery pack | Bosch PowerTube Li-Ion 36 V |
Display | Bosch Intuvia LCD, with control panel and walk assist |
Charger | Bosch 2A |
Brake | Shimano MT420/MT400, hydraulic disc brake (180/180) |
Brake lever | Shimano MT400 |
Handlebar | Concept EX Riser |
Grips | Herrmans Line |
Stem | Concept EX, adjustable |
Saddle | Selle Royal Essenza Plus |
Seatpost | Concept EX, aluminium |
Headlight | Herrmans H-Black MR8, LED |
Mudguards | plastic, with edge protector |
Rack | Racktime System Carrier |
Bike stand | rear stand, adjustable |
Max. total weight | 170 kg |
Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Kalkhoff Werke GmbH |
