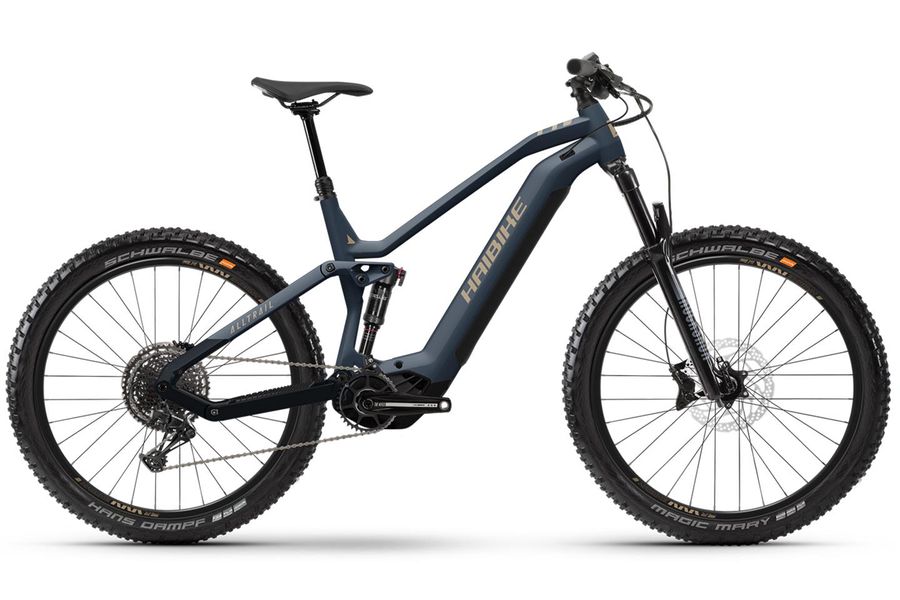

Haibike AllTrail 6 27.5
The Haibike ALLTRAIL 6 27.5 is an agile all-rounder for extended tours, with which you can also rock the trails. The new Yamaha PW-S2 drive with 75 Nm torque and 720 Wh InTube battery offers you the extra portion of energy you need in every situation to easily master even the steepest climbs. With the 140 mm suspension elements from RockShox, 12-speed gears and 4-piston disc brakes from Shimano, telescopic seat post and plus tires, you are also ideally equipped for descents in more demanding terrain.
More models from the series "Haibike Alltrail"
- Item 1Sold out
- Item 2Sold out
- Item 3Sold out
- Item 4Sold out
- Item 5Sold out
Highlights
-
Frame
Aluminium
-
Fork
RockShox 35 Gold RL Luft (140 mm)
-
Shifter
Shimano Deore (1x12)
-
Brakes
Shimano MT420 (203/203)
-
Rear Shock
RockShox Deluxe Select Plus
-
Drive Unit
Yamaha PW-S2 (75 Nm) / InTube (720 Wh)
Additional Information
| General | |
| Bike category | E-MTB Full Suspension |
|---|---|
| Model year | 2023, 2024 |
| Colour | Blue / Caramel Matt Gloss |
| Max. total weight | 150 kg |
| Frame | |
| Frame | Aluminium |
| Fork | RockShox 35 Gold RL Luft, Federweg= 140 mm, Aluschaft 1 1/8" - 1 1/2" tapered, 15 x 110mm Steckachse Boost |
| Rear Shocks | RockShox Deluxe select plus, Luft, Trunnion Mount |
| Headset | Acros, BlockLock, Aluminium |
| Frame type | Fully |
| Drive | |
| Shifters | Shimano Deore M6100, Triggerschalter |
| Rear derailleur | Shimano Deore M6100 |
| Chain rings | Stahl, 38 Zähnezahl |
| Cassette | Shimano M6100, 10 - 51 Zähnezahl |
| Chain | Shimano CN-M6100 |
| Ebike | |
| Battery pack | InTube, 720 Wh |
| E-Engine | Yamaha PW-S2, 250W, 75Nm, 25km/h |
| Display | Yamaha Side Switch1.7" LCD, 7 functionen |
| Brakes | |
| Brake | Shimano MT420, 4-Kolben-Scheibenbremse, Shimano, RT EM300L/RT30-L, 203 mm |
| Brake lever | Shimano MT401, Aluminium, |
| Wheels | |
| Rims | WTB, ST i35 TCS, Hohlkammer |
| Front tire | Schwalbe Magic Mary Evo TLE, 65-584, 27.5" x 2.6" |
| Rear tire | Schwalbe Hans Dampf Evo, 65-622, 27.5" x 2.6" |
| Wheel Size | 27,5'' |
| Front hub | Shimano MT400-B, Centerlock |
| Rear hub | Shimano MT410, Centerlock |
| Cockpit | |
| Handlebar | Haibike Components TheBar ++, 780 mm |
| Stem | Alu A-head |
| Seat | |
| Saddle | Selle Royal Vivo |
| Seatpost | Haibike Components, Dropper-Post Remote 34.9, Aluminium, Teleskop, 34.9 mm |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | |
| Manufacturer Information | |
| Manufacturer Information | WINORA-STAIGER GmbH |
