Highlights
Frame
Aluminium
Fork
RockShox 35 Silver (160 mm)
Shifter
SRAM SX Eagle (1x12)
Brakes
Shimano MT420 (203/203)
Rear Shock
RockShox Deluxe Select
Drive Unit
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)

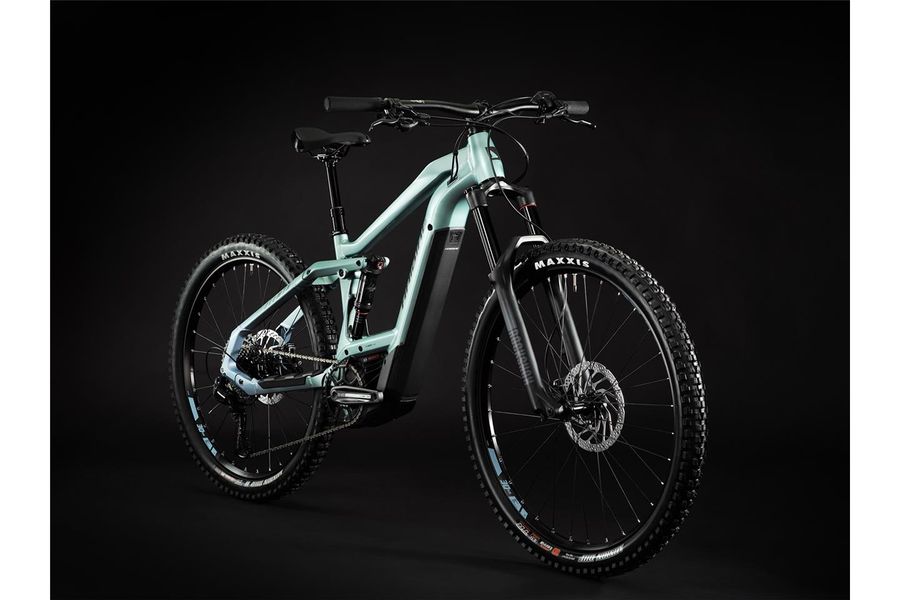

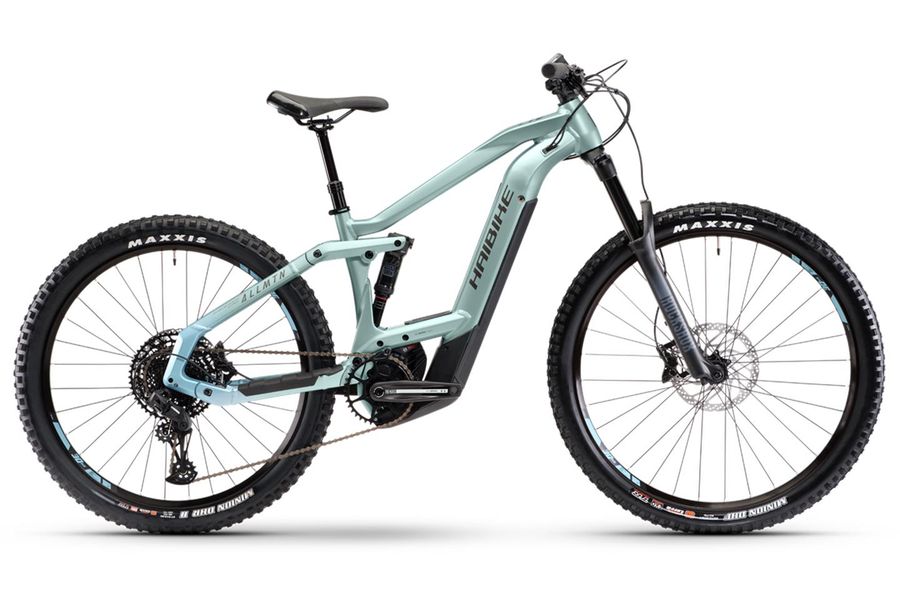

Haibike AllMtn 3
The AllMtn 3 is the perfect all-rounder for any terrain: with 160mm travel, 4-piston disc brakes from Shimano and a powerful Bosch Performance CX Gen 4 motor, this eMountain bike also impresses on more challenging trails. Mixed wheel sizes with 29" at the front and 27.5" at the rear round out the package and ensure a comfortable rollover behavior and perfect traction. This allows you to master even the steepest uphills and downhills with ease.
Additional Information
| General | |
| Bike category | E-MTB Full Suspension |
|---|---|
| Model year | 2022 |
| Colour | Metal / Cyan / Black Gloss |
| Frame | |
| Frame | Haibike FullSeven Bosch i625, Aluminium 6061 |
| Fork | RockShox 35 Silver, Stahlfeder, 160 mm Federweg, Aluschaft 1 1/8" - 1 1/2" tapered, 15 x 110mm Steckachse Boost |
| Rear Shocks | RockShox Deluxe Select, Luft, Trunnion |
| Headset | Feimin A-Head Tapered, Aluminium, Cartridge |
| Frame type | Fully |
| Drive | |
| Shifters | Sram SX Eagle , Triggerschalter |
| Rear derailleur | Sram SX Eagle |
| Crank | Haibike Components The Crank ++, Aluminium |
| Chain rings | 38T |
| Cassette | Sram Eagle PG1210, 11 - 50 teeth |
| Chain | Sram SX Eagle |
| Ebike | |
| Battery pack | Bosch PowerTube, 625 Wh |

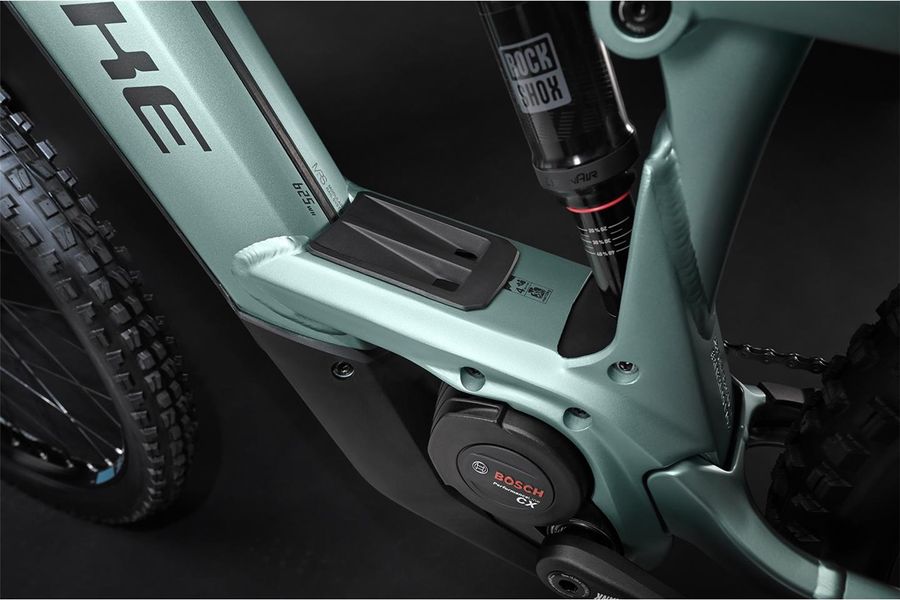

| E-Engine | Bosch, Performance CX GEN4, 250 Wh, 85 Nm, 25 km/h |

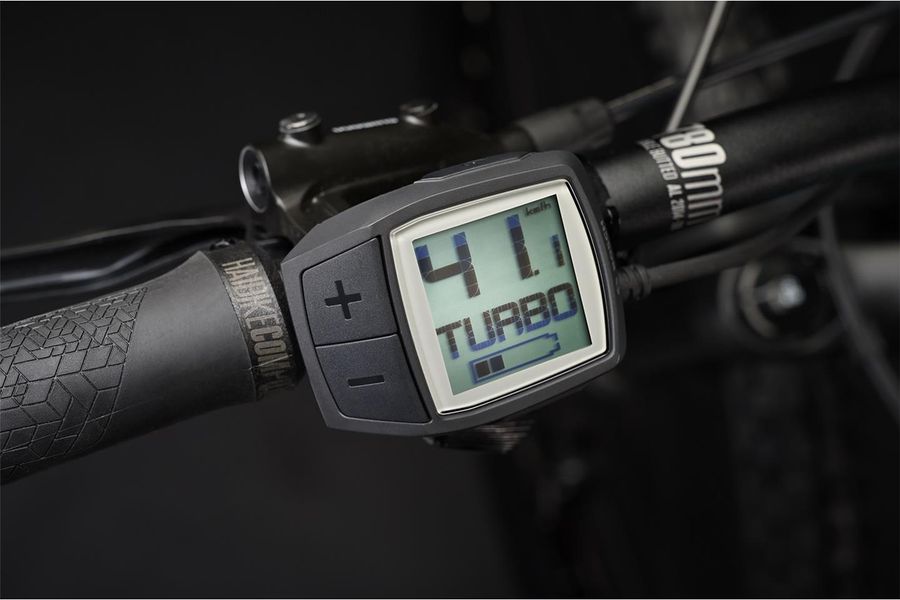

| Display | Bosch Purion |
| Charger | Bosch 2A |
| Brakes | |
| Brake | Shimano MT420, 4-Kolben Scheibenbremse, Shimano, RT30-L/RT EM300L, 203 mm |
| Brake lever | Shimano MT401, Aluminium |
| Wheels | |
| Rims | Rodi Tryp 30, mit Ösen, Hohlkammer, Aluminium |
| Front tire | Maxxis Minion DHF II, 65-622, 29 x 2.5 inch |
| Rear tire | Maxxis Minion DHR II, 71-584, 27.5 x 2.8 inch |
| Wheel Size | 27,5+, 29'' |
| Front hub | Shimano MT400-B, Centerlock |
| Rear hub | Shimano MT400-B, Centerlock |
| Cockpit | |
| Handlebar | Haibike Components, TheBar ++, 780 mm |
| Stem | Alu A-head, 31.8 mm |
| Grips | Haibike, MTB grips |
| Seat | |
| Saddle | XLC MTB |
| Seatpost | Dropper-Post Remote 31.6, Aluminium, Teleskop, 31.6 mm |
| Other | |
| Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
| Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | WINORA-STAIGER GmbH |
