Highlights
Frame
Aluminium
Fork
RockShox 35 Gold RL (160mm)
Shifter
SRAM NX Eagle (1x12)
Brakes
TRP Slate T4 (203/203)
Rear Shock
RockShox Select Deluxe+
Drive Unit
Yamaha PW-X3 (85 Nm) / InTube (720 Wh)

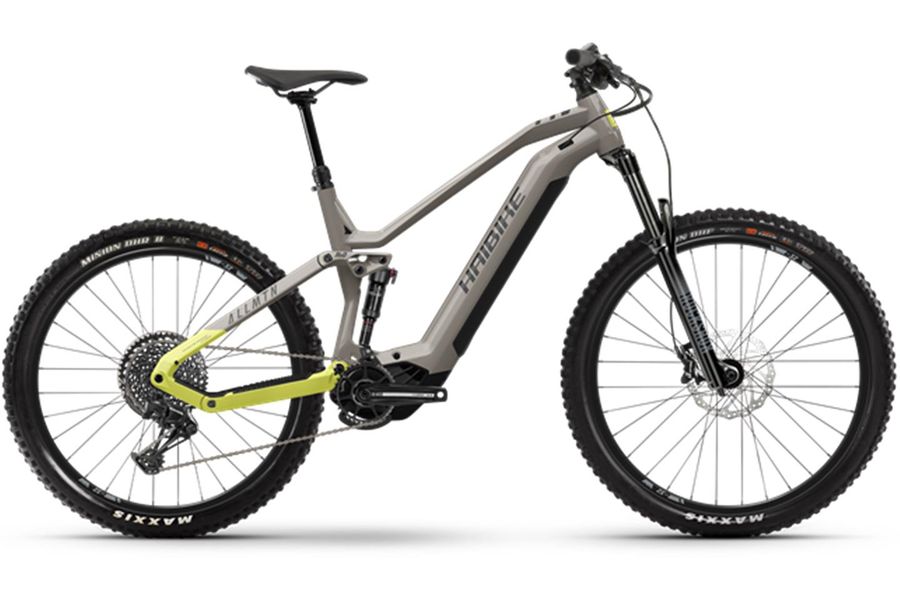

Haibike AllMtn 2
With the new AllMtn 2 all roads are open to you: Whether tricky root passages, flow trails or crisp climbs. With 160mm travel and the wheel mix of 29" at the front and 27.5" at the rear you roll relaxed over any obstacle and benefit from perfect traction on steep uphills. With the support of the new more compact and more powerful Yamaha PW-X3 motor with 720Wh battery you get quickly up the mountain and have guaranteed fun in any terrain.
Additional Information
| Bike category | E-MTB Full Suspension |
|---|---|
| Brand | Haibike |
| Model year | 2022 |
| Colour | Grey / Lemon |
| Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
| Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
| Wheel Size | 27,5+, 29'' |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Frame | Haibike AllMtn PW-X3 Aluminium |
| Fork | RockShox 35 Gold RL Air (160 mm) 15 x 110mm Steckachse Boost |
| Rear Shocks | RockShox Deluxe Select+ Air Trunnion Mount |
| Headset | Acros BlockLock Aluminium |
| Frame type | Fully |
| Shifters | Sram SX Eagle Trigger 12-Speed |
| Rear derailleur | Sram SX Eagle 12-Speed |
| Crank | Haibike Components The Crank ++ Aluminium |
| Chain rings | Sram 38T |
| Cassette | Sram Eagle PG1210 11 - 50t |
| Chain | Sram SX Eagle |
| Battery pack | InTube 720Wh |
| E-Engine | Yamaha PW-X3 250 Wh 85 Nm |
| Display | Yamaha Side Switch 1.7 LCD 7 Funktionen |
| Brake | Tektro TR203 (203/203) |
| Brake lever | TRP Slate T4 Aluminium |
| Brake caliper | TRP Slate T4 Hydraulische Scheibenbremse |
| Rims | WTB ST i30 TCS Hohlkammer (F) / WTB ST i35 TCS Hohlkammer |
| Front tire | Maxxis Minion DHF 29 x 2.5 |
| Rear tire | Maxxis Minion DHR II 27.5 x 2.6 |
| Front hub | Haibike Components The Hub ++ Steckachse 15x110mm 6-Loch Int. Standard |
| Rear hub | Haibike Components TheHub ++ Steckachse 12x148 6-Loch Int. Standard |
| Handlebar | Haibike Components TheBar +++ 780 mm |
| Stem | Haibike Components TheStem +++ 31.8 mm |
| Grips | Haibike MTB grips |
| Saddle | Selle Royal Vivo |
| Seatpost | Haibike Components Dropper-Post Remote 31.6 Aluminium Teleskop 34.9 mm |
| Manufacturer Information | WINORA-STAIGER GmbH |
