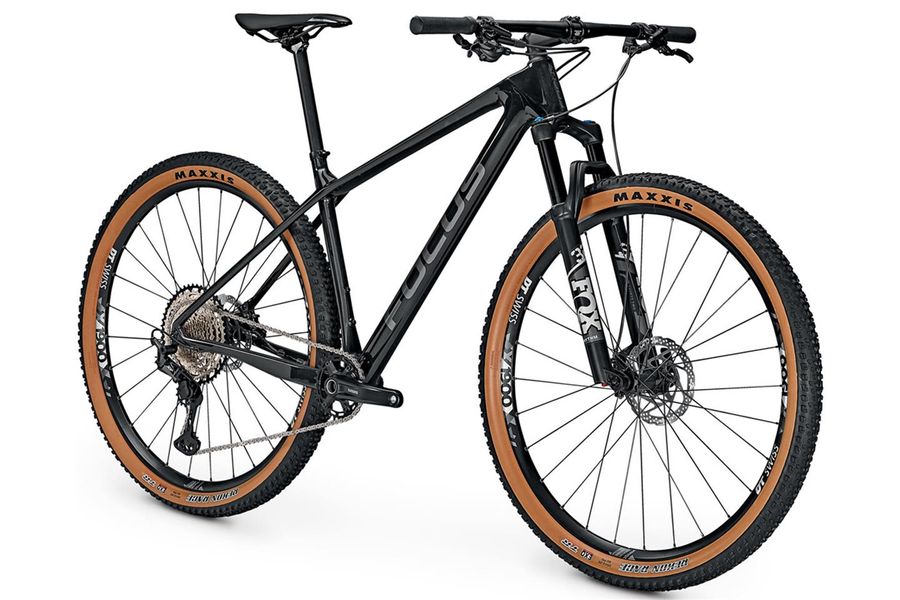

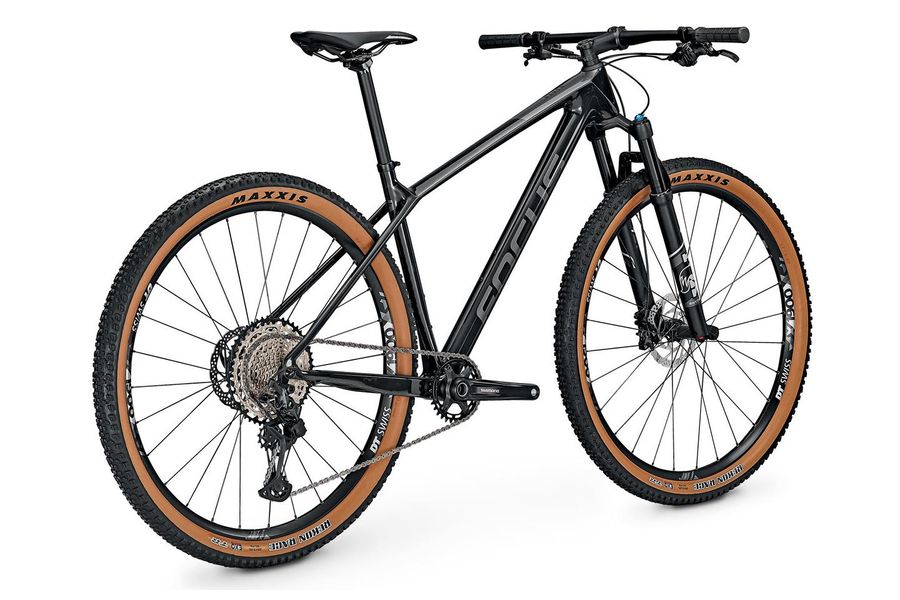

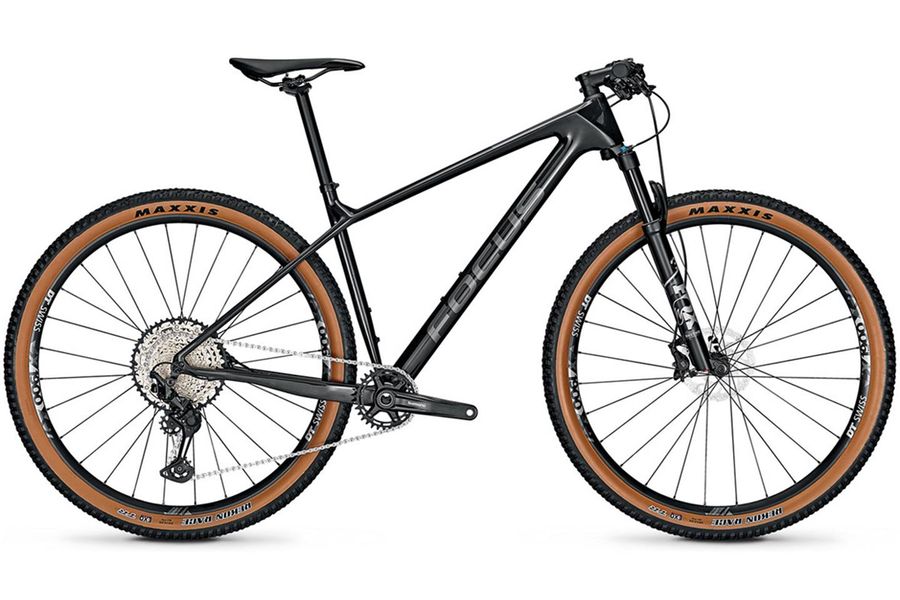

Focus Raven 8.7 (2022)
The geometry of the Raven is designed for maximum speed with maximum control. Your use in mountain bike races is therefore nothing in the way. The fun on the trails, however, does not fall by the wayside. The Raven with wide Boost hub standard with axle widths 110 mm front and 148 mm rear offers extra stiffness and the handling remains agile and precise.
Highlights
Frame
Carbon
Fork
FOX 32 Float Rhythm 29, Grip Remote (100 mm)
Tires
Maxxis Rekon Race, 2.25
Wheelset
DT Swiss X1900
Shifter
Shimano Deore XT (1x12)
Brakes
Shimano SLX M7100
Additional Information
| General | |
| Bike category | Hardtail MTB |
|---|---|
| Colour | carbon-raw-silk-matt |
| Weight | 11,2 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm |
| Fork | FOX 32 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake, 100 mm travel |
| Headset | Acros AIX-322, tapered, IS 42/286-IS52/40 |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano Deore XT M8100, 12-speed |
| Rear derailleur | Shimano Deore XT M8100, 12-speed |
| Crank | Shimano MT510 |
| Chain rings | 32T |
| Cassette | Shimano SLX M7100, 12-speed, 10-51 |
| Chain | Shimano Deore CN-M6100, 12-speed |
| Brakes | |
| Brake | Shimano SLX M7100 |
| Brake lever | Shimano SLX M7100 |
| Wheels | |
| Wheel set | DT Swiss X1900, 25-622, 15x110 mm / 12x148 mm, 25 mm height |
| Tires | Maxxis Rekon Race, 2.25, 2C |
| Wheel Size | 29'' |
| Cockpit | |
| Handlebar | Aluminium, 760 mm, flatbar, backsweep: 9°, 31,8 mm |
| Stem | Aluminium, 31,8 mm |
| Seat | |
| Saddle | FOCUS Race SL |
| Seatpost | BBB Deluxe, Aluminium, 27,2mm, 350mm |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | |
| Manufacturer Information | |
| Manufacturer Information | FOCUS Bikes GmbH |
