Aluminium
FOX 36 Float Rhythm 29 (150mm)
Shimano XT/Deore (1x12)
Shimano XT M8120 (200/200)
FOX Float DPS Performance
Bosch Performance CX Gen4 (85Nm) / PowerTube (625Wh)

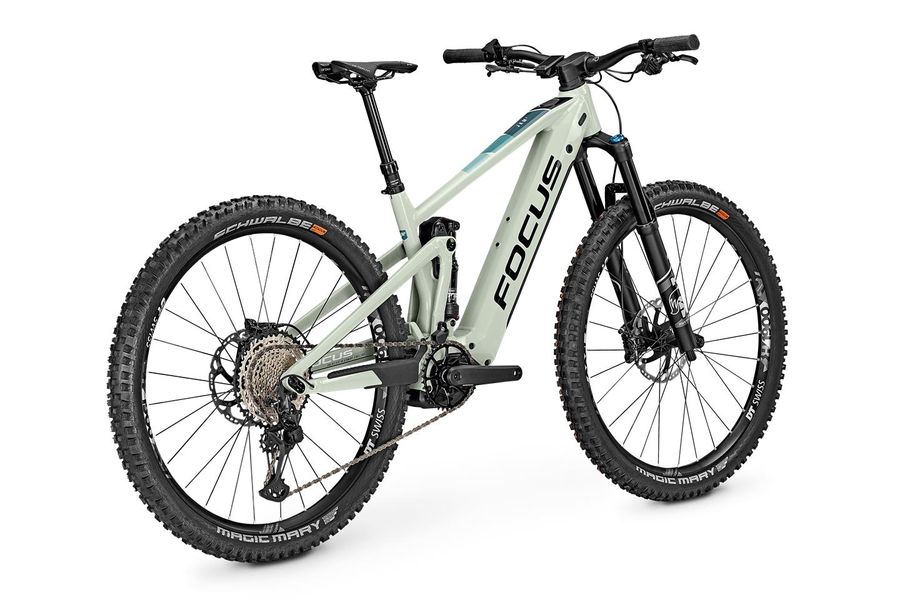

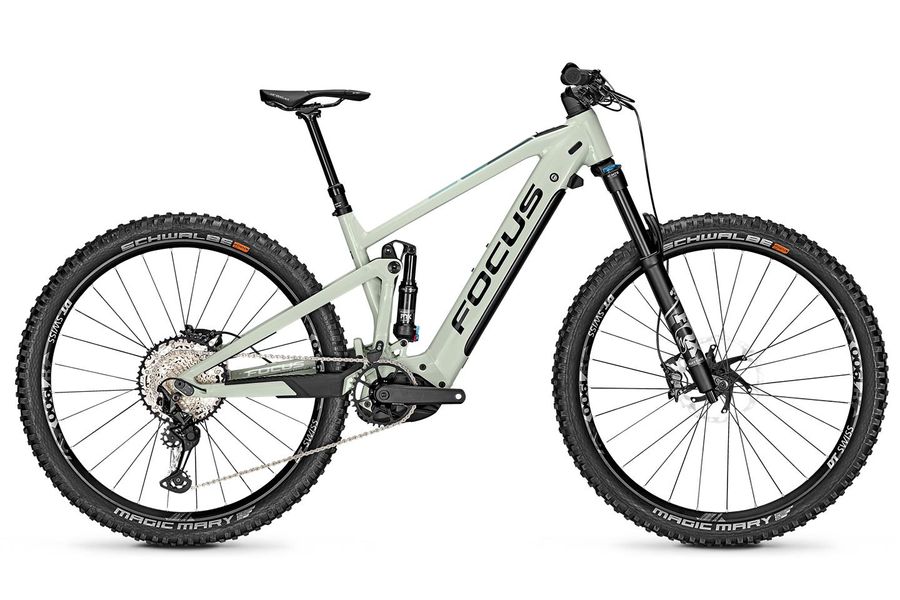

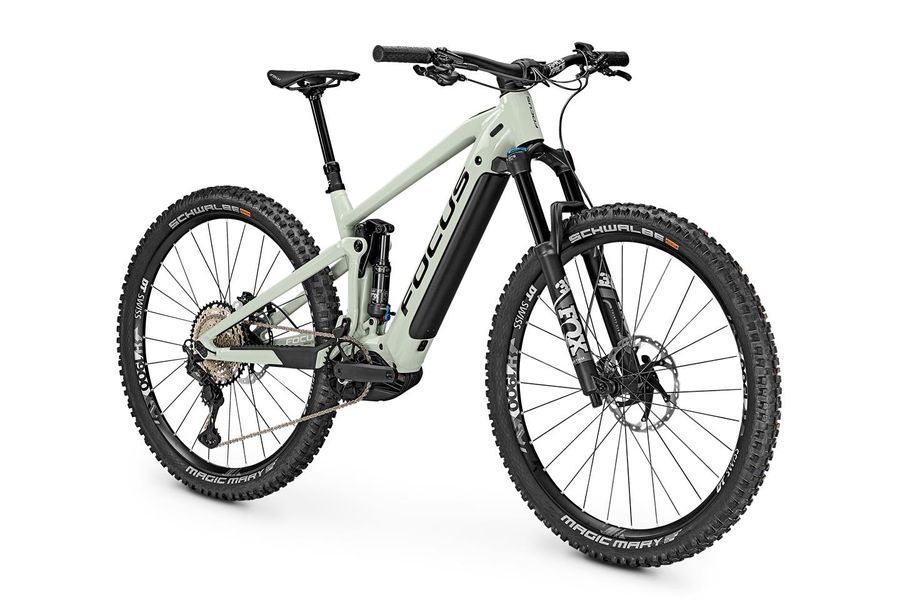

With the fourth generation Bosch Performance CX motor, a more powerful heart than ever beats at the bottom bracket of the Focus Jam² 6.9. And hidden in the down tube is an extremely powerful battery with 625 watt hours of capacity. This power duo allows you to ride even more trails in one day. The control centre is a modern and compact Bosch Kiox display on the handlebar. The high-quality drive consists of an FSA crank and a Shimano XT 12-speed rear derailleur. The hydraulic Shimano XT disc brakes with 4-piston calipers have been specially developed for all-mountain and enduro use. As is typical for Shimano, they work with service-friendly mineral oil. A standard Kindshock telescopic seat post makes the setup of the Focus Jam² 6.9perfect.
Limits are there to be exceeded! The Focus Jam² 6.9 Nine helps you to push your riding limits. The basis is a 150-millimetre suspension system from specialists FOX. The outstanding Focus F.O.L.D kinematics ensure agile geometry and always agile handling. Special feature: Thanks to the Focus Flip Chip, you are not limited to the factory-fitted 29-inch wheels, but can also ride 27.5-inch wheels with Plus tyres. The conversion at the rear dropout is done in no time.
The Bosch Powertube battery is perfectly integrated in the down tube. The battery can be removed for charging at any time, but the charger can also be plugged directly into the bike.
All-mountain e-fully with top trail performance
Aluminium frame with F.O.L.D. kinematics
High-quality 29 inch FOX chassis
4th generation Bosch Performance CX motor
Integrated 625 Wh battery (removable)
Bike category | E-MTB Full Suspension |
---|---|
Brand | Focus |
Model Year | 2022 |
Colour | Sky Grey |
Weight | 25,0 kg |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
Frame | 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
Frame type | Fully |
Fork | FOX 36 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake, 150 mm travel |
Rear Shocks | FOX Float DPS Performance, 3-position lever, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing |
Wheel Size | 29'' |
Tires | Schwalbe Magic Mary 2.6 Super Trail Soft |
Wheel set | DT SWISS H1900, 30-622, 15x110 mm / 12x148 mm |
Rear derailleur | Shimano Deore XT M8100, 12-speed |
Shifters | Shimano Deore XT M8100, 12-speed |
Crank | Samox EC40 ISIS |
Chain rings | 36T |
Cassette | Shimano SLX M7100, 12-speed |
Chain | Shimano SLX CN-M7100 |
Brake | Shimano XT M8120, 4 piston (200/200) |
Brake lever | Shimano XT M8120, 4 piston |
E-Engine | Bosch Performance CX Gen4, 85 Nm, 250 W |
Battery pack | Bosch PowerTube 625 |
Display | Bosch Kiox |
Charger | Bosch 4A |
Handlebar | RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8° |
Grips | RaceFace Getta Grip |
Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
Saddle | Proxim W350 |
Seatpost | Post Moderne PM-MT171, 31,6mm |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
