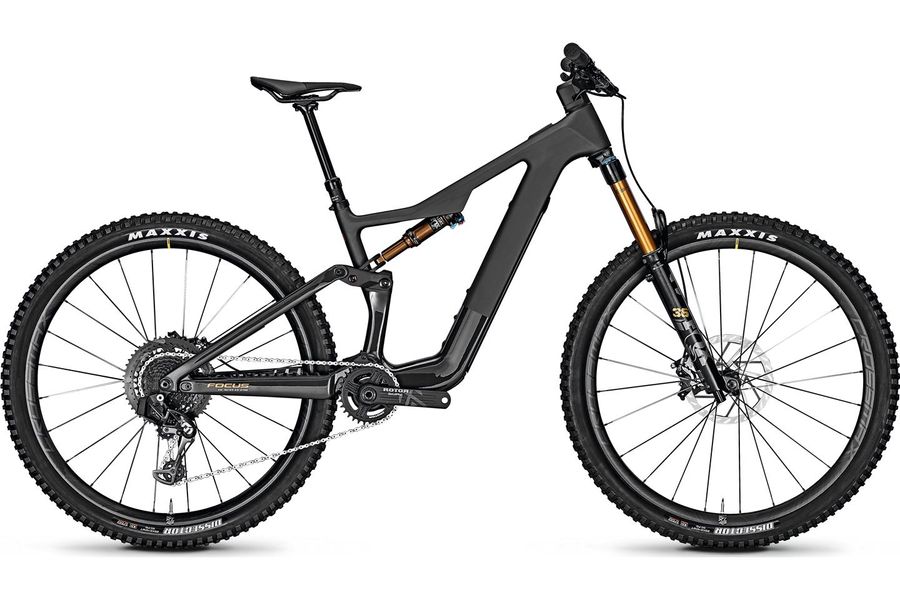

Focus Jam² SL 9.0

Focus Jam² SL 9.0

The JAM² SL 9.0 pushes the boundaries of E-MTB lightweight construction. The MAX carbon layup makes this full carbon frame super light without compromising on stiffness. The top tube is optimized in the most radical and minimalist way. Thanks to the partial integration of the shock, the JAM² SL 9.0 has a low standover height that gives you plenty of room to move. All adjustment elements of the shock are easy to reach despite the integration. Since the motor and battery of our JAM² SL 9.0 are fully integrated into the down tube, this E-MTB not only rides like a Pure Bike, but also looks like one. The high-end equipment of the JAM² SL 9.0 with carbon handlebars and wheels also ensures a low weight.

Full support of an e-bike

The FAZUA RIDE 60 drive system offers you a natural riding feel while still giving you full backing. The compact and lightweight, yet powerful drive unit has 60 Nm of torque and a maximum power of 450 W. Thanks to the boost function, you can master even the steepest climbs. Thanks to the high efficiency of the FAZUA system and a 430 Wh battery, your ride won't stop until you've reached your personal rider's high. If you still need more energy, a range extender offers another 210 Wh. The drive system already has three different riding modes. In addition, you can adjust the motor support individually to your riding preferences via the FAZUA app. This way, you can set the maximum power (Max Power), the support ratio (Support Relation) as well as the responsiveness and acceleration (Ramp-up) according to your personal needs.

Customizable geometry and tuned kinematics

The geometry of the JAM² SL 9.0 can be adjusted via two points: Steering angle and chainstay length. The steeper steering angle of 65.5° results in a more agile handling of the bike, while the flatter position of 64.5° provides a more downhill-oriented setting. Adjusting the chainstays from 440 to 447 mm via the FLIP CHIPs changes the entire set-up of your bike. If you set the FLIP CHIPs to a long position, the JAM² SL 9.0 rides more stable and facilitates steep climbs, while the short setting leads to a more agile geometry. For the JAM² SL 9.0 we have adapted our F.O.L.D. (FOCUS Optimised Linkage Design) and reduced the number of linkage parts, thereby significantly saving weight. The new kinematics reduces even more the braking influences and gives you maximum control over your bike in every situation.
