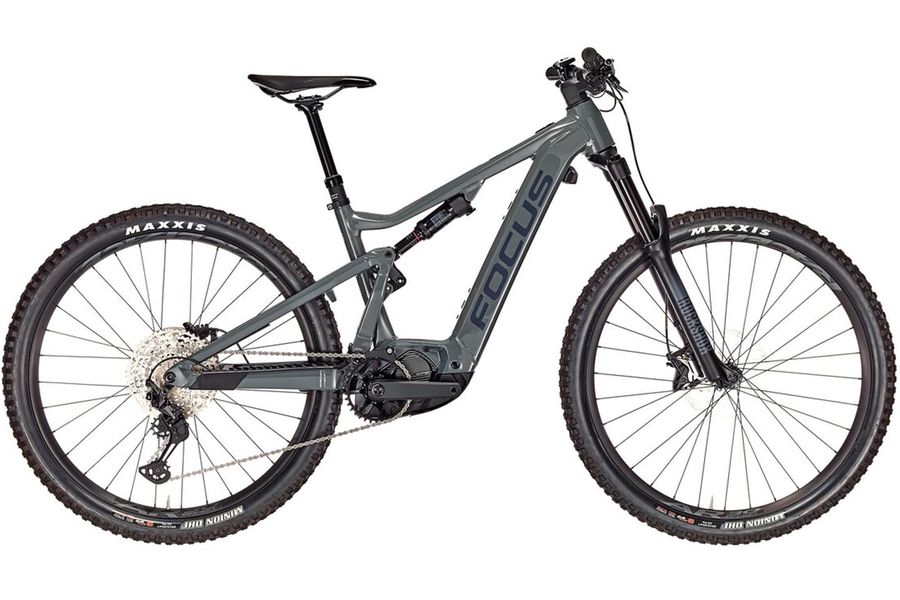

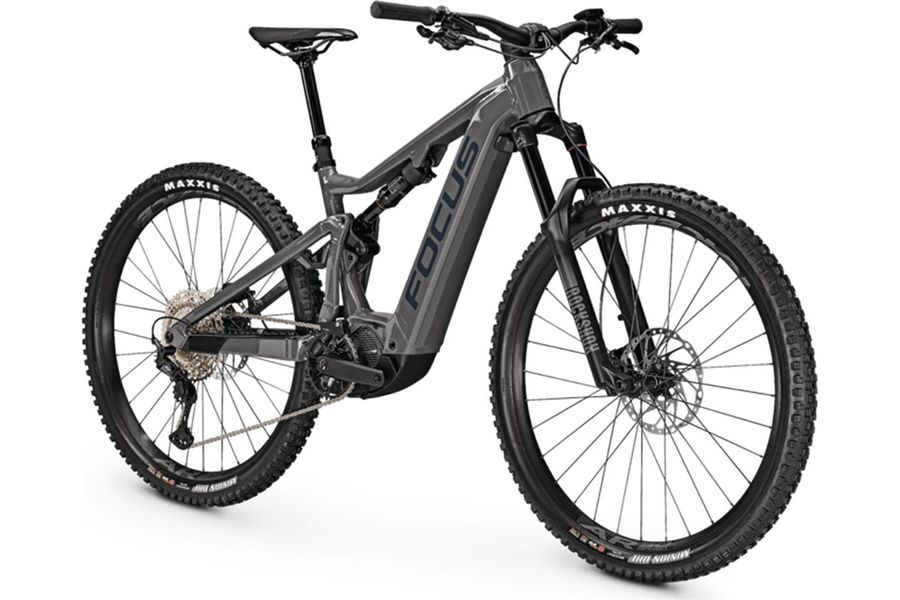

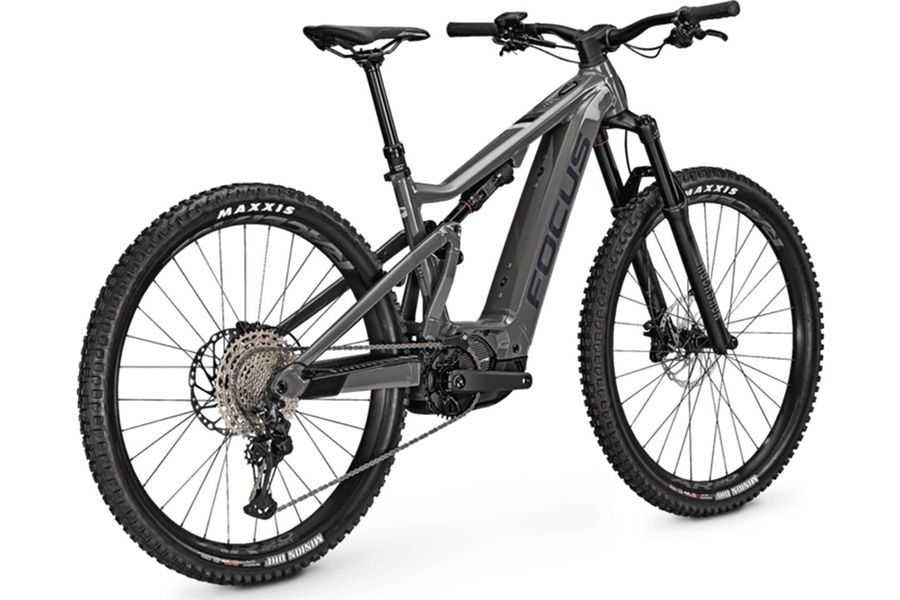

Focus Jam² 7.8 (2023)

Item no. 55587
5,499.00 € *
Finance at 0% now!
Variant
Size
Low stock
Delivery by 17/8 - 19/8
Check availability in our stores

The Focus Jam² 7.8 is the latest model of the e-all-mountain bikes from the Stuttgart-based manufacturer. Even more power and range thanks to 85Nm motor and 720Wh battery from Shimano. The RockShox suspension reliably compensates for all bumps.

Highlights

Frame

Aluminium

Fork

Rock Shox 35 Gold RL 29 (150mm)

Shifter

Shimano SLX (1x12)

Brakes

Shimano MT520

Rear Shock

Rock Shox Deluxe Select

Drive Unit

Shimano Steps EP8 (85 Nm) / 720 Wh Akku

Focus - Jam² 7.8

With the new generation of Shimano motors, a more powerful heart than ever beats at the bottom bracket of the Focus Jam² 7.8. With 85Nm, the new Shimano EP8 has just as much power as its competitors. An extremely powerful battery with 720 watt hours capacity is hidden in the down tube. This power duo allows you to ride even more trails in one day. The control centre is a modern and compact Shimano EP800 display on the handlebar. The high-quality drivetrain consists of a Shimano crank and a Shimano SLX 12-speed rear derailleur. The hydraulic Shimano MT520 disc brakes with 4-piston calipers have been specially developed for All Mountain and Enduro use. As is typical for Shimano, they work with service-friendly mineral oil. A standard Post Moderne telescopic seatpost makes the setup of the Focus Jam² 7.8 perfect.

Frame details

Limits are there to be exceeded! The Focus Jam² 7.8 helps you to push your riding limits. The basis is a 150-millimetre suspension system from specialists RockShox. The outstanding Focus F.O.L.D kinematics ensure agile geometry and always agile handling. For the new generation of Focus Jams, the shock has been moved to the top tube to create more space in the frame. The special response of the rear suspension has also been improved as a result: Thanks to the Focus Flip Chip, you are not limited to a linear response. If you prefer a more progressive shock characteristic, the rear end conversion is done in no time. The result is a longer wheelbase and flatter steering angle, i.e. more smoothness but less agility. The Shimano 720Wh battery is perfectly integrated into the down tube. The battery can be removed at any time for charging, for which it has to be loosened at a screw. If you don't want to do this, you can also plug the charger directly into the lower end of the bike's battery cover.

Additional Information

EAN 4000990425018
Bike category E-MTB Full Suspension
Brand Focus
Model Year 2023
Colour slate grey
Weight 25 kg
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Configuration - available in our stores Individuelles Fahrwerks Setup durch geschulte Mitarbeiter
Frame 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. GEN2 kinematic, 148x12 mm thru axle, internal cable routing, USB-C port, post mount 203 mm
Frame type Fully
Fork Rock Shox 35 Gold RL 29 Boost, 110x15 mm, 44 mm rake, 150 mm travel
Rear Shocks Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
Wheel Size 29''
Tires Maxxis Minion DHF 29"x2.50"
Rims RaceFace AR30 Offset
Rear derailleur Shimano SLX M7100, 12-speed
Shifters Shimano SLX M7100, 12-speed
Crank Samox EC40 ISIS
Chain rings 36t
Cassette Shimano Deore CS-M6100, 12-speed
Chain Shimano CN-LG50
Front hub Shimano MT410, 15x110 mm
Rear hub Shimano MT410, 12x148 mm
Brake Shimano MT520, hydraulische Scheibenbremse
Brake lever Shimano MT520
E-Engine Shimano Steps EP8, 36V / 250 W / 85 Nm
Battery pack Shimano 720Wh
Remote Shimano Steps EM800
Handlebar Handlebar, 800 mm, rise: 35 mm, backsweep: 9°
Stem FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset Acros ZS56/ZS56, Focus C.I.S. Integrated
Saddle FOCUS Race SL
Seatpost Post Moderne dropper post PM-214, 34.9 mm
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
