The F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that Focus can also guarantee the perfect mix for the e-All-Mountain JAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
7005 hydroformed aluminium
Rock Shox Recon RL 29 Boost (150mm)
Shimano SLX (1x12)
Shimano BR-MT520
RockShox Deluxe Select
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (625 Wh)

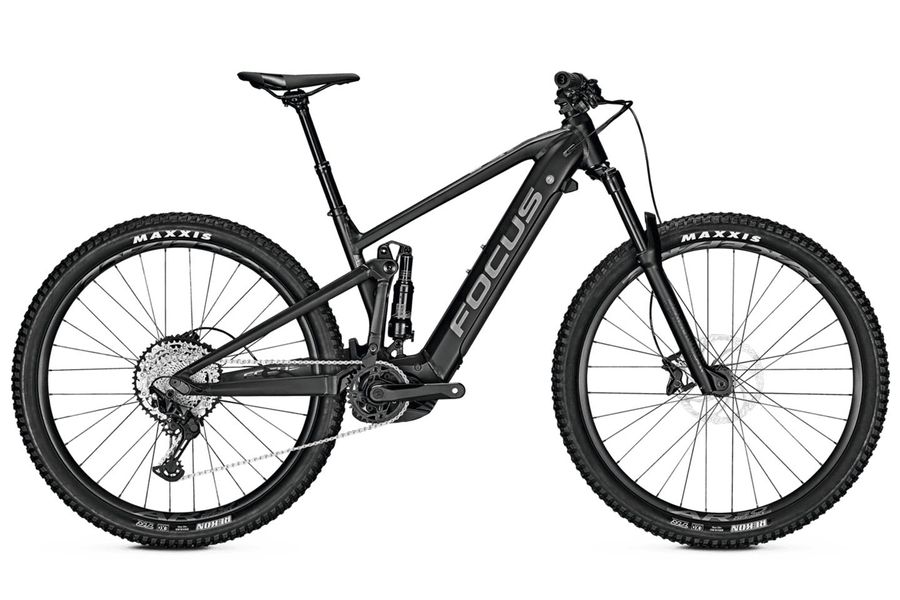

Conquers new mountains: the FOCUS JAM² is all-out fun on the trail. Supported by the Bosch Performance CX (Gen.4) e-drive with 625 Wh or the compact Shimano EP8 e-drive with up to 756 Wh, you can ride more trails in the same time. The perfectly tuned 150 mm F.O.L.D. chassis and a super agile geometry makes your heart race time and time again. You also have the choice between 29" and 27+ tyres or a mix of 29" at the front and 27+ at the back. More mountains, more trails, more experiences.
Bike category | E-MTB Full Suspension |
---|---|
Brand | Focus |
Colour | Magic Black |
Weight | 23,50 kg |
Customization - only in store | |
Configuration - available in our stores | |
Frame | 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
Frame type | Fully |
Fork | Rock Shox Recon RL 29 Boost, E-MTB, 110x15 mm, 51 mm rake, 150 mm travel |
Rear Shocks | RockShox Deluxe Select, 210/55 mm, hardware: 25,0 x 8mm, custom tune, 150 mm |
Wheel Size | 29'' |
Tires | Maxxis Minion DHF 2.6 Dual EXO TR |
Rims | RaceFace AR30 Offset |
Rear derailleur | Shimano SLX M7100, 12-speed |
Shifters | Shimano SLX M7100, 12-speed |
Crank | FSA CK-320, aluminium |
Cassette | Shimano SLX M7100, 12-speed |
Chain | Shimano SLX CN-M7100 |
Front hub | Novatec D041, 15x110 mm thru axle |
Rear hub | Novatec D162 Disc, 12x148 mm |
Brake | Shimano BR-MT520, 4 piston |
E-Engine | Bosch Performance CX Gen4, 85 Nm, 250 W |
Battery pack | Bosch PowerTube 625 Wh / 16,7 Ah |
Display | Bosch Purion |
Handlebar | BBB Ascension BHB-110, aluminium, riserbar, 780mm, rise: 20mm, backsweep: 9degree |
Stem | BBB Jumper BHS-138, 31.8 mm |
Saddle | FOCUS Trail SL |
Seatpost | Kind Shock E30i, 31,6mm |
Max. total weight | 120 kg |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Manufacturer Information | FOCUS Bikes GmbH |
