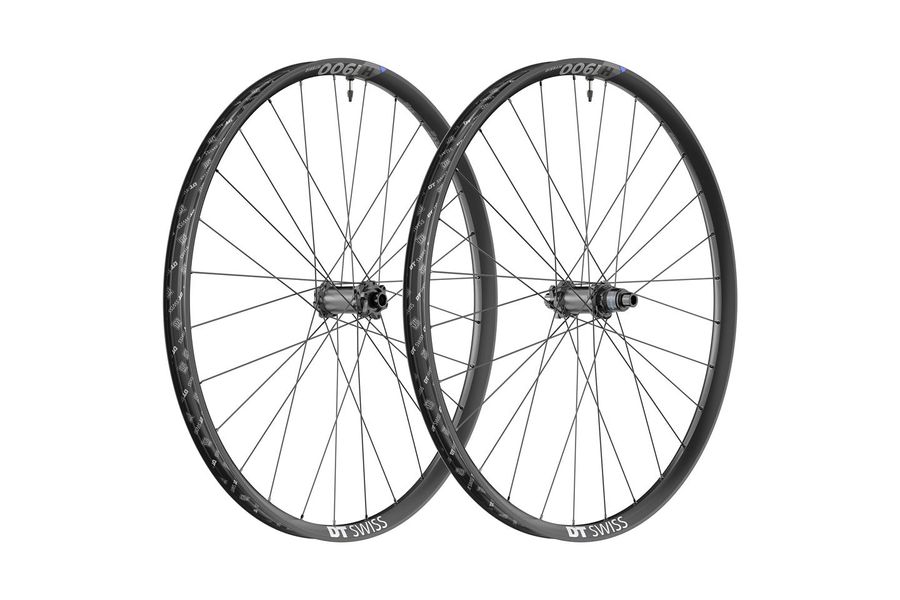

DT-Swiss H 1900 SPLINE 29 HYBRID 12-Speed SRAM 30mm

DT-Swiss - H 1900 SPLINE 29 HYBRID 12-speed SRAM

When motor assistance meets human muscle power, the amount of terrain a bike can conquer inevitably increases. The H 1900 SPLINE is made for exactly that and is now equipped with the proven DT Swiss Ratchet technology. The Ratchet LN system distributes the combined power of rider and motor over a larger area than the previous ratchet freehub system, thus increasing the robustness of the system through lower load peaks. The 370 hub, combined with reinforced hybrid spokes and a durable aluminium rim in two jaw widths, allows full power transfer to the ground.

• Weight combined: 2187g
• Front wheel: 1026g
• Rear wheel: 1161g

Rim

• Material: Hooked aluminium
• Wheel diameter: 622 mm (29")
• Mouth width: 30 mm
• Outer width: 35 mm
• Max. System weight according to manufacturer: 150 kg

Hub

• Type: DT-Swiss 370
• Brake disc mount: IS 6-hole
• Freewheel body: SRAM XD Steel
• Freewheel system: Ratchet System 18
• Thru axle diameter: (F) 15mm, (R) 12mm
• Installation width: (F) 110mm, (R) 148mm

Spokes and nipples

• Spokes: DT Hybrid 1
• Nipple: DT ProLock Squorx ProHead alu
• Spoke pattern: Three-Cross

Accessories

• Tubeless rim tape 32 mm
• Tubeless valve Road 32 mm
