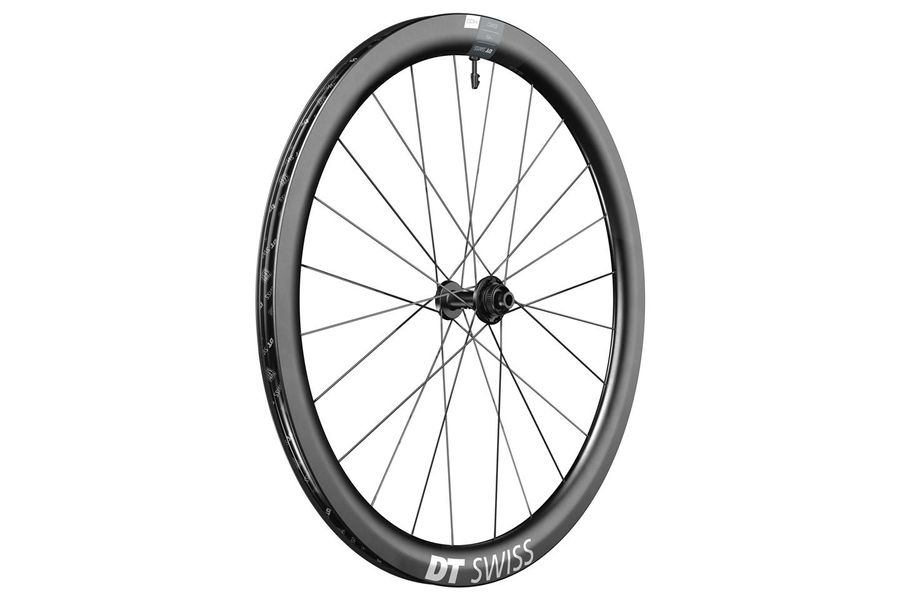

DT Swiss ERC 1400 Spline DB 45 front wheel

DT Swiss ERC 1400 Spline DB 45 front wheel

Whether it's a quick after-work ride or a granfondo: wherever the road takes you, the new ERC wheels and their AERO+ optimised rim shape give you full control. With tyres up to 32 mm wide, you'll experience comfort that lets the kilometres glide by effortlessly. Technical highlights include the DT aero comp spokes, which are aerodynamically aligned thanks to the T-head spoke heads in the latest 240 DICUT hub. The tried-and-tested Ratchet EXP freehub system with 36T ratchet discs reliably transfers every pedal rotation into propulsion and speed on the road.

Highlights

• Revised rim shape for an optimum balance of aerodynamics and crosswind stability
• Ratchet EXP freehub system for precise and permanently reliable power transmission
• Spokes with T-head spoke heads for permanently optimised aerodynamics

Weight

• Front wheel weight: 705 g
• Maximum total weight including bike: must not exceed 120 kg
• Approved for e-bikes: Yes (max. 32Km/h or max. 250W)

Rims

• Material: Carbon
• Height: 45 mm
• Rim width: 22 mm
• Outer width: 28.5 mm
• Tyre interface: Hooked / Crotchet Tubeless TC

Spokes

• Model: DT aero comp t-head
• Spoke pattern: Two-cross (1:1)
• Nipples: DT Pro Lock hidden aluminium

Hub

• Hub type: 240
• Axle system: 12mm Thru Axle
• Built-in width: 100 mm
• Brake interface: Disc Center Lock

Accessories

• Tubeless tape 25 mm
• TL valve alu black 36-48 mm
• Valve guard
