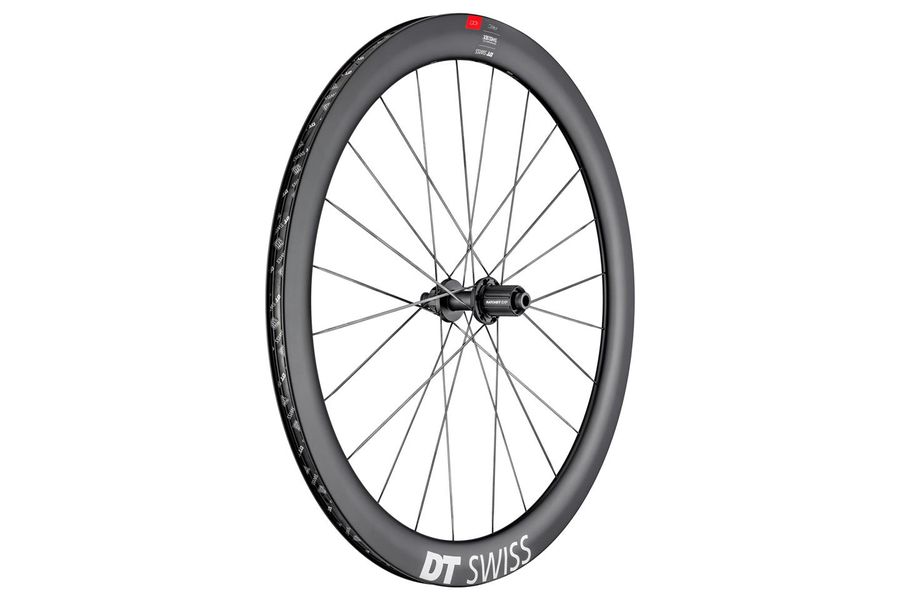

DT Swiss ARC 1100 Dicut DB 50 rear wheel

DT Swiss ARC 1100 Dicut DB 50mm Center Lock rear wheel

The latest generation of ARC 1100 DICUT wheels was developed in collaboration with SWISS SIDE, the leading experts in aerodynamic optimisation. The new AERO+ rim profiles are characterised by low air resistance combined with reduced steering torque: Ideal for improving aerodynamics, sailing effect and control even in strong crosswinds. The wheel is rounded off by the new DT Swiss Aero spokes in combination with the 180 DICUT Aero hub and its Ratchet EXP system including the ultra-light running SINC ceramic bearings.

Highlights

• Optimised aerodynamics: 50 mm rim height with AERO+ technology for reduced air resistance and high crosswind stability.
• State-of-the-art disc brake compatibility: Specially developed for disc brakes - for maximum braking control in all weathers.
• High-quality Dicut hub: Precisely manufactured with ratchet system technology for direct power transmission and easy maintenance.
• Tubeless Ready: Enables the use of tubeless tyres for more comfort, grip and puncture resistance.

Weight

• Weight rear wheel: 798 g
• Maximum total weight including bike: must not exceed 110 kg

Rim

• Material: Carbon
• Height: 50 mm
• Inner width: 20 mm
• Outer width: 27 mm
• Tire interface: Hooked / Crotchet Tubeless TC

Spokes

• Model: DT aerolite® II t-head
• Spoke pattern: Two-cross (1:1)
• Nipples: DT Pro Lock hidden aluminium

Hub

• Hub type: 180
• Axle system: 12mm Thru Axle
• Built-in width: 142 mm
• Brake interface: Disc Center Lock
• Cassette interface: Shimano Road
• Freehub body: Shim. RD. 11SP Light S (ASL11S) build-on - SRAM XDR Road freehub body kit included in the scope of delivery
• Freehub system: Ratchet EXP 36

Accessories

• Tubeless tape 23 mm
• TL valve alu black 49-65 mm
• SRAM XDR Road freehub body kit
• Valve guard
