DMR Vault Mag

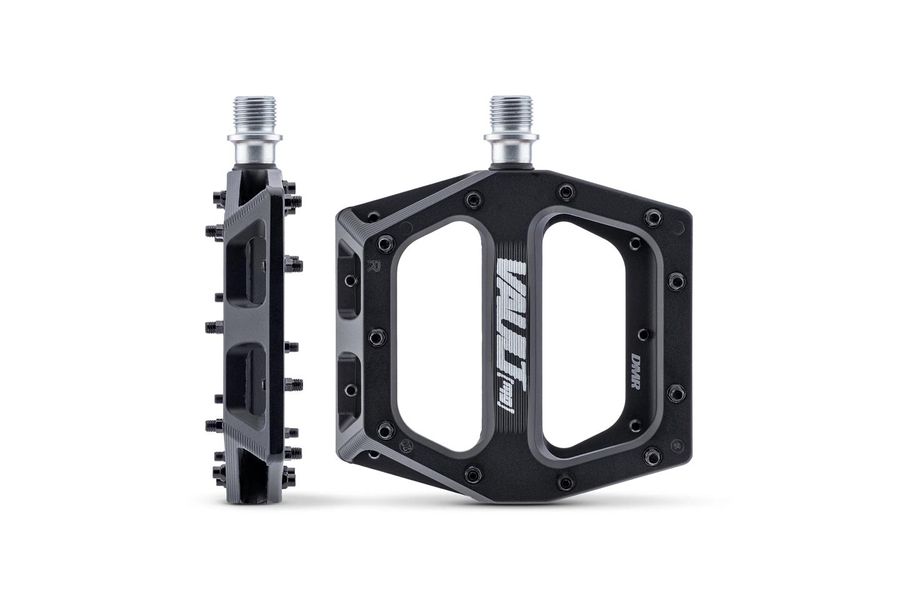

DMR Vault Mag – High-performance MTB Flat Pedal

The DMR Vault Mag embodies the uncompromising DMR philosophy: maximum control, robust construction, and honest technology for demanding trails. As a lighter version of the proven Vault pedal, it features a die-cast magnesium pedal body that offers an excellent weight-to-stability ratio and is also efficiently manufactured. The material used enables more resource-efficient production with reduced material waste and lower energy consumption compared to conventional processes.

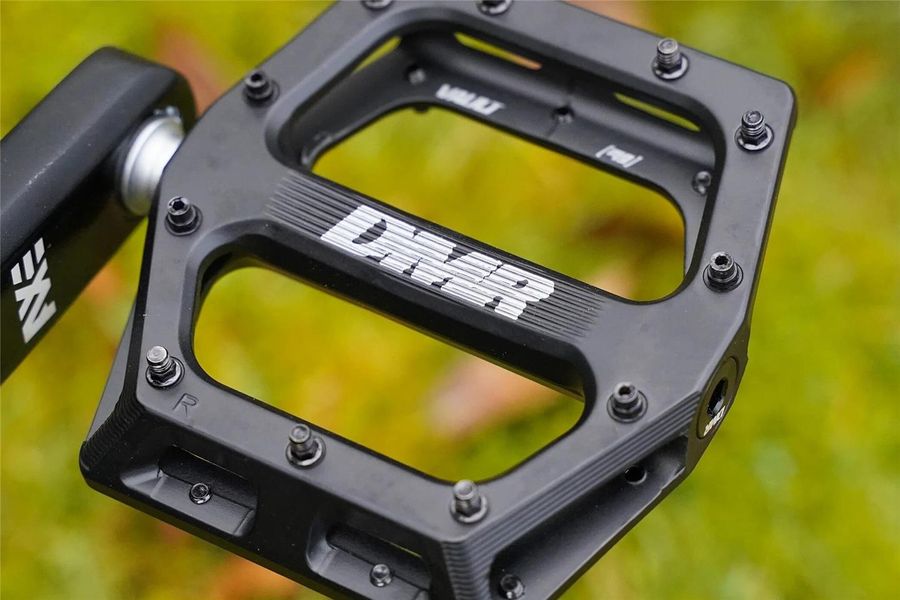

On the trail, the Vault Mag impresses with its large, concave platform, which provides secure footing and a stable riding experience. The replaceable DMR Traction Pins ensure reliable grip in wet conditions, dust, or quick changes of direction. The flat profile also improves ground clearance on technical terrain.

Like all DMR pedals, the Vault Mag is designed for durability and ease of maintenance. A sturdy chromoly axle, DU bushings, and sealed bearings guarantee smooth operation even with intensive use. Developed by riders for riders – built for lasting confidence on the trail.

Highlights

• Large, grippy pedal platform for secure footing
• Lightweight, die-cast magnesium pedal body
• Slim, concave profile for better ground clearance
• Adjustable grip thanks to 11 DMR traction pins per pedal
• Heavy-duty bearings with DU bushings and cartridge bearings

Technical Data

• Pedal body: Magnesium body

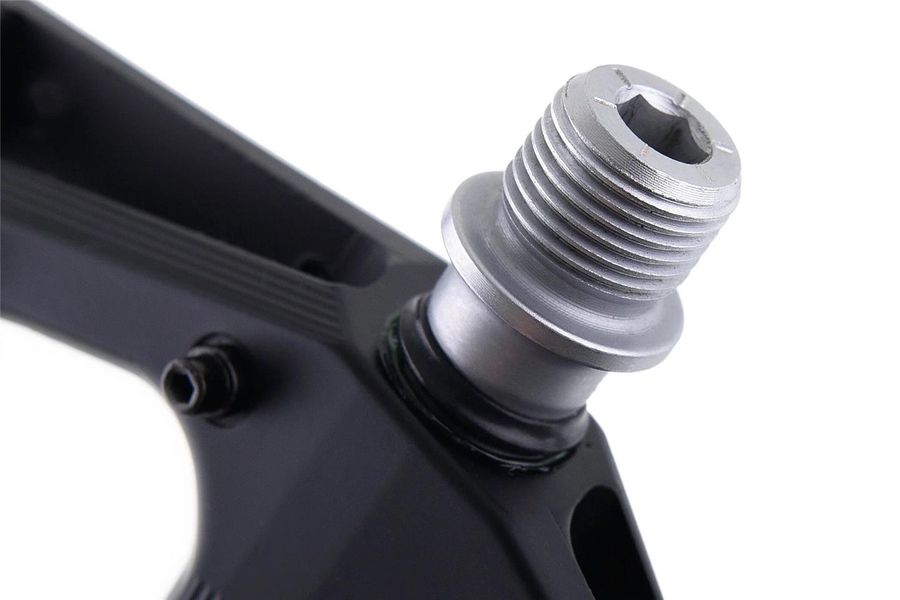

• Axle: Cro-Mo steel
• Platform size: approx. 105 × 105 mm
• Pedal profile: approx. 17 mm height
• 11 replaceable pins per pedal
• Weight: approx. 404 g per pair

Material

• Pedal body: Die-cast magnesium
• Axle: Chrome-moly steel
• Pins: Replaceable steel pins

Technologies

• Die-cast magnesium: Reduces weight, energy consumption, and material waste through efficient production.
• Concave platform: Provides better contact area and stronger grip between shoe and pedal.

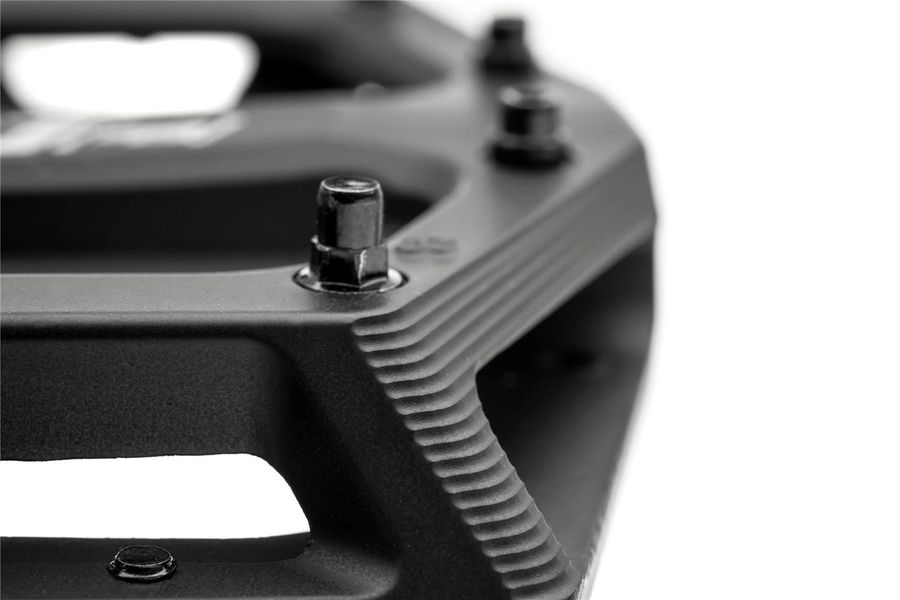

• DMR Traction Pins: Replaceable pins allow for individual fine-tuning of the grip.
• DU bushings & cartridge bearings: Heavy-duty bearings for durable and smooth rotation.

Scope of Delivery

• 1 × pair of DMR Vault Mag flat pedals
• Replacement pins
