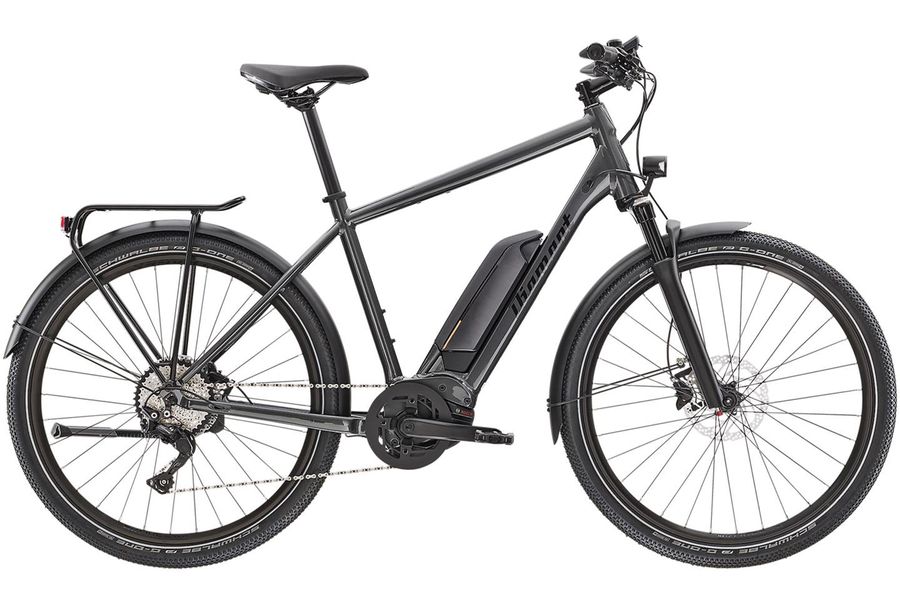

Diamant Zing Deluxe+ (2022)

Item no. 63787
3,369.00 € *
[1]
Size

The Zing Deluxe+ is a light and comfortable everyday e-bike with touring ambitions on any terrain. The Bosch Performance CX pushes on demand as powerfully as no other motor. The diamond-quality aluminium frame is equipped with reliable Shimano components.

Highlights

Lighting

Herrmans H-Black MR8 E, LED

Frame

Aluminium

Fork

Suntour SF19 Mobie25-coil (63 mm)

Shifter

Shimano Deore (1x10)

Brakes

Shimano BR-MT200 (180/180)

Drive Unit

Bosch Performance CX Gen4 (85Nm) / PowerPack (500Wh)

Diamant Zing Deluxe+ - Lightweight all-round e-trekking bike with a powerful Bosch drive system

Trekking, city and touring bikes are the core competence of the traditional manufacturer Diamant. And this has been the case for well over one hundred years. But there is no question of technical standstill. Quite the opposite! With its 500 watt-hour battery, the Zing Deluxe+ is perhaps not built for the very long distances. But at 21.8 kilos, it is a real lightweight in this e-bike class. And it can unleash unbridled power thanks to the Bosch Performance CX motor. Its 100% roadworthy equipment predestines the Zing for everyday use in the city to weekend tours with a moderate luggage load. Gravel roads are no problem for the voluminous Schwalbe tyres. Commuters looking for a reliable and agile e-bike for the daily ride to the office will also be happy with the Zing Deluxe+. Comfort is provided not only by the ergonomic cockpit but also by a robust Suntour Mobie 25 suspension fork, which was specially developed for e-bikes. The Zing Deluxe+ comes with modern Shimano Deore 1 x 10 gears and service-friendly Shimano disc brakes. Large 180 mm discs ensure high braking performance in all weather conditions.

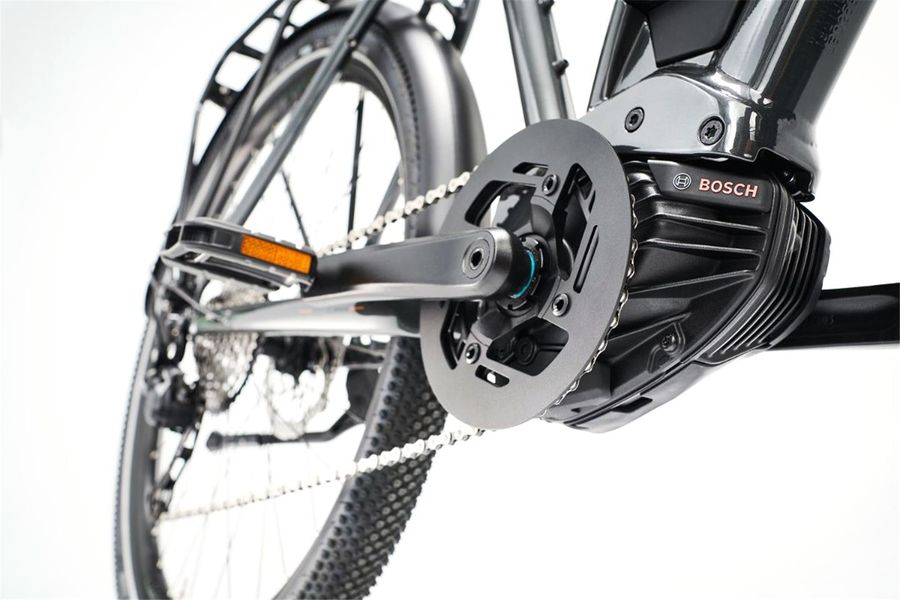

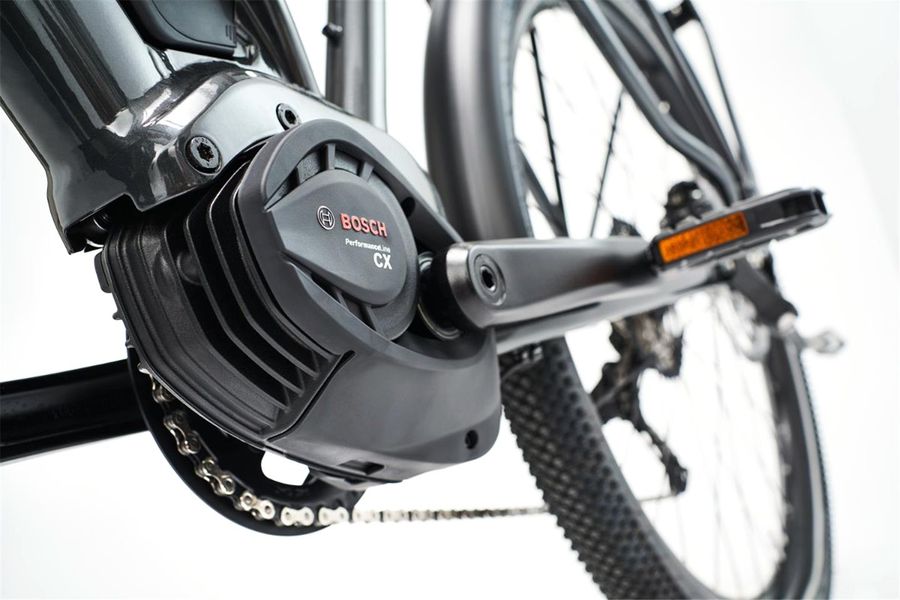

The Bosch Performance CX drive sets standards

With 85 Nm, the Bosch Performance CX motor has the highest torque of all Bosch drives. Hardly any other motor provides such harmonious yet powerful support. An easy-to-read Bosch Intuvia Display provides you with all important information during the ride, for example about the selected support level and the remaining range. The Bosch PowerPack battery sits at the optimal centre of gravity and is easy to remove.

Diamant - The oldest bicycle manufacturer in Germany

The Diamant brand is a new addition to the RABE Bike range in 2023. And for good reason. Because the manufactory, which was founded in 1885, is the oldest bicycle manufacturer in Germany. You can therefore rely on a huge wealth of experience. But you can also see that Diamant has successfully brought its high quality standards into the present. With a wide range of models, specialising in trekking and touring bikes as well as bikes for urban use. Of course, Diamant bikes are available with and without e-drive. The manufacturer also speaks its own language when it comes to design. The bikes always reflect a successful symbiosis of tradition and modernity. Proven materials such as aluminium and high-tech carbon are used in the construction of the frames. To underline the long durability and high quality of workmanship of its bicycles, the manufacturer provides a lifetime warranty.

Additional Information

General
Bike category Trekking E-Bike
Colour Dravitgrau Metallic
Weight 21.8 kg
Max. total weight 136kg
Frame
Frame Hochleistungsfähige Hydroforming-Rohre aus Aluminium, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm-Schnellspannachse
Fork Suspension fork, Suntour SF19 Mobie25-coil LOR DS 15AH2, 27.5'', 63mm travel headtube: aluminium 1.5''tapered 300mm crown: alloy A6000 black coil spring, with preload, with lockout, with external rebound adjustment
Frame type Diamond
Drive
Shifters Shimano Deore M4100, 10fach // Shimano Deore M4100, 10fach
Rear derailleur Shimano Deore M5120, langer Käfig // Shimano Deore M6000, mittellanger Käfig, max. 42 Z. an größtem Ritzel
Crank ProWheel, Aluminium, 170 mm Kurbelarmlänge
Cassette Shimano Deore M4100, 11-46 Z., 10fach // Shimano HG500, 10fach
Chain KMC E10S
Ebike
Battery pack Bosch PowerPack Performance 500 am Unterrohr
E-Engine Bosch Performance CX, Motorgehäuse aus Magnesium, 250 Watt, 85 Nm, Unterstützung bis max. 25 km/h
Display Bosch Intuvia
Brakes
Brake Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 // Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano RT26, 6-Loch-Scheibenaufnahme,180 mm
Wheels
Wheel set Bontrager Kovee Hohlkammerfelgen, tubeless ready
Front hub Bontrager thru15
Rear hub Shimano M4050
Wheel Size 27,5''
Cockpit
Handlebar Bontrager Riser, 31.8mm, 25mm hochgezogen
Stem Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 70 mm Länge
Grips Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 660 mm Breite
Seat
Saddle Track-Style, Aluminium
Seatpost Bontrager aus Aluminium, 31,6 mm, 12 mm Versatz, 330 mm Länge
Light
Headlight Herrmans H-Black MR8 E, LED
Back light Spanninga Solo, LED
Acessory
Rack leichter Racktime Gepäckträger aus Aluminium mit Snapit System Racktime Lightit // MIK-kompatibler Gepäckträger aus Aluminium
Bike stand Pletscher Comp Flex 18
Other
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Annotation Die Abbildung kann abweichen. Der Hersteller behält es sich vor, bestimmte Komponenten durch qualitativ gleichwertige zu ersetzen.
