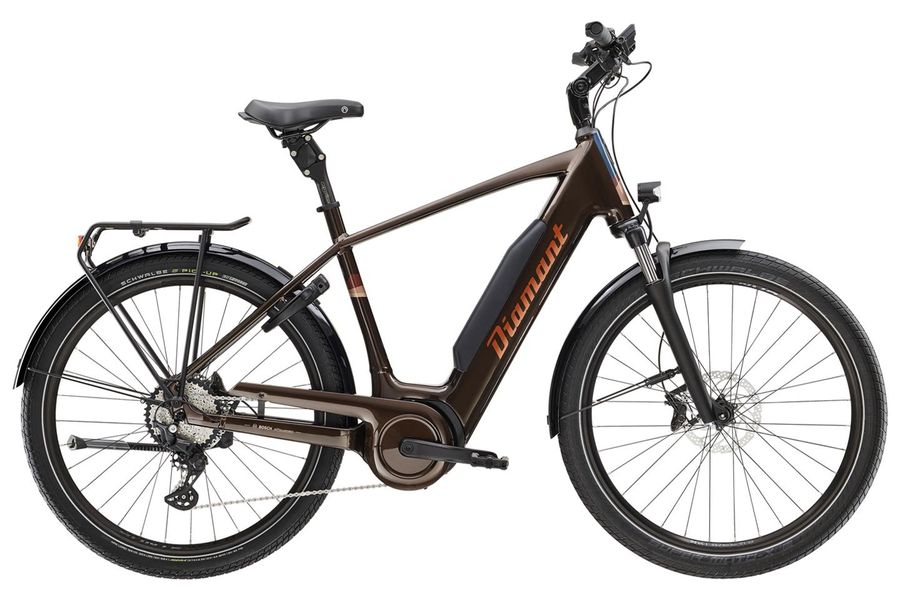

Diamant Mandara 160 Gen 3 725WH
Item no. 63834
4,299.00 €
*
Size
Sold out
There are many reasons why a bicycle needs more system weight: It can be your own weight, but also the weight of what you take with you on your journey. The Mandara 160 is designed as a trekking e-bike and is also designed for a payload of up to 160 kg.
Highlights
-
Lighting
Herrmans H-Black MR4-E LED (40 Lux / 120 Lumen)
-
Frame
Aluminium
-
Fork
SR Suntour Mobie A32 (60 mm)
-
Shifter
Shimano Deore (1x10)
-
Brakes
Shimano MT401 / 420 (180/180)
-
Drive Unit
Bosch Perf. Gen 3 (75Nm) / PowerPack (725 Wh)
Additional Information
| General | |
| Bike category | Trekking E-Bike |
|---|---|
| Model year | 2023 |
| Colour | brown metallic |
| Weight | 29,3 kg |
| Max. total weight | 160 kg |
| Frame | |
| Frame | Hochleistungsfähiger Aluminiumrahmen mit hydrogeformten Rohren, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse |
| Fork | SR Suntour Mobie A32, Spiralfeder, verstellbare Federvorspannung, 60 mm Federweg, |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano Deore M5130, 10fach |
| Rear derailleur | Shimano Deore M5130, GS, Shadow Plus |
| Crank | ProWheel, Aluminium, 175 mm Kurbelarmlänge |
| Cassette | Shimano CS-LG400, 11-43, 10fach |
| Chain | Shimano LG500 |
| Ebike | |
| Battery pack | Bosch Powerpack 725 Wh, Smart System |
| E-Engine | Bosch Performance Gen. 3, 250 W, 75 Nm, 25 km/h, Smart System |
| Remote | Bosch LED Remote |
| Display | Bosch Intuvia 100, Smart System |
| Brakes | |
| Brake | Shimano MT401 / MT420 hydraulische Scheibenbremse, 180 mm Scheibendurchmesser |
| Wheels | |
| Wheel set | Bontrager Kovee, Hohlkammerfelge, Tubeless Ready, 28-Loch, 23 mm Innenweite, Presta-Ventil |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | Bontrager, Aluminium, 31,8 mm, 15 mm Rise, 690 mm Breite |
| Stem | Verstellbarer Aluminiumvorbau, 110 mm Länge |
| Grips | Herrmans Clik |
| Seat | |
| Saddle | Selle Royal ON relaxed |
| Seatpost | Ergotec PM705-N mit Federung |
| Light | |
| Headlight | Herrmans H-Black MR4-E, 120lumen, 40lux, LED |
| Back light | Spanninga SOLO for e-bike, LED |
| Acessory | |
| Rack | MIK-Gepäckträger aus Aluminium |
| Bike stand | Pletscher Comp Flex 18 |
| Other | |
| Customization - only in store | |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | Diamant Fahrradwerke GmbH |
