Highlights
Lighting
Herrmans H-Black MR8
Frame
Aluminium Superlite
Fork
SR Suntour XCR32 LO-R Air (50mm)
Shifter
Shimano XT/Deore (1x12)
Brakes
Shimano BR-MT420/MT400 (180/180)
Drive Unit
Bosch Perf. Gen3 (60 Nm) - PowerPack (500 Wh)

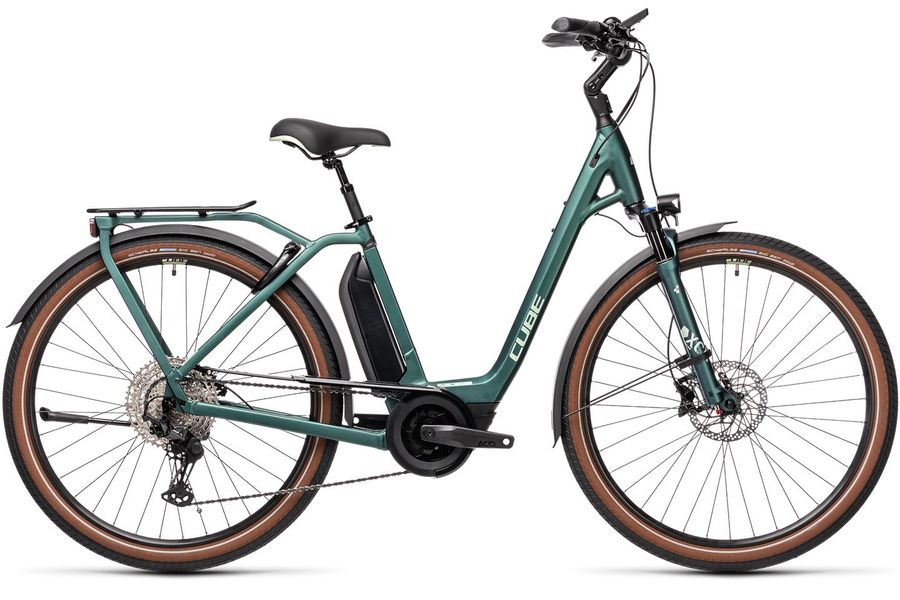

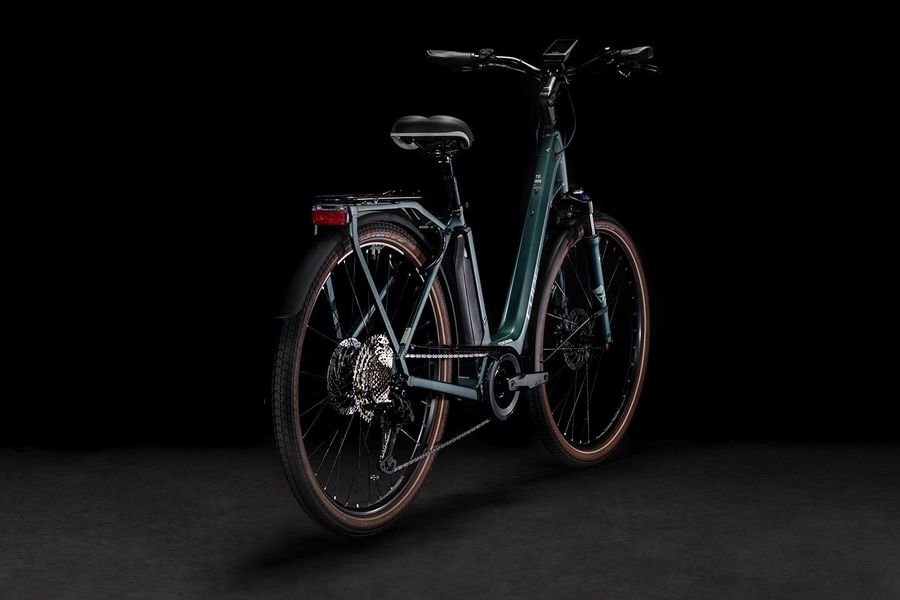

CUBE Town Sport Hybrid EXC 500
There are times when only the best will do. It's the reason CUBE fitted the Town Sport Hybrid EXC with the smooth adjustability of a Suntour air suspension fork, and the extra comfort of a CUBE suspension seatpost. Then CUBE added powerful Shimano hydraulic disc brakes for safe stopping, with a four-piston caliper at the front. Bosch's smooth third-generation drive unit works with Shimano's reliable, extra wide-ranging 1x12 Deore gears to flatten the steepest of hills. And the Integrated Carrier, lighting system, full-length mudguards and included kickstand mean you're all set for any journey.
Frame

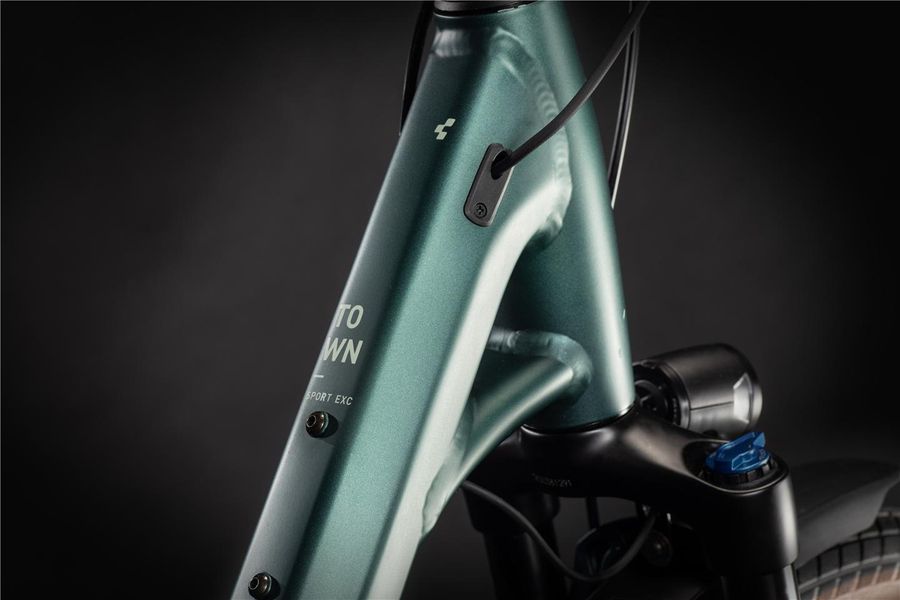

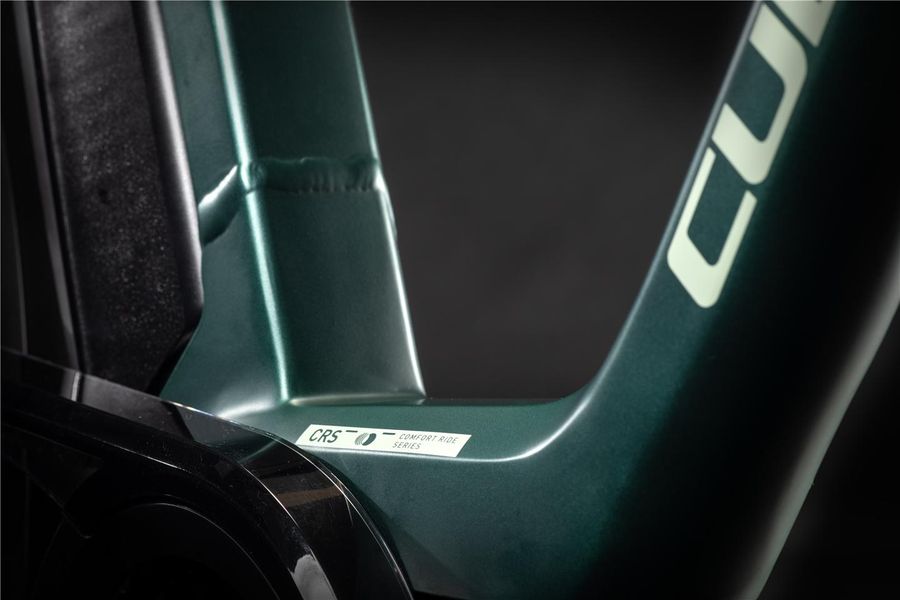

A bicycle should be easy to use, comfortable for its rider and safe in any situation. The Town Sport Hybrid's Easy Entry frame is specifically designed to make mounting and dismounting as easy as possible, its Comfort Ride Geometry means you'll immediately feel at home and, of course, it's passed all our stringent in-house safety tests. The low mounting position for the Bosch motor and battery ensures intuitive handling, and our Integrated Carrier is as strong and sturdy as it is neat. We even routed cables inside the frame, keeping them out of the way of everyday dirt and grime so your gears will shift flawlessly with minimal maintenance.
Additional Information
General | |
Bike category | Trekking E-Bike |
---|---|
Colour | green'n'green |
Weight | 26,3 kg |
Max. total weight | 140 kg |
Frame | |
Frame | Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Integrated Carrier 2.0 |
Fork | SR Suntour XCR32 LO-R Air, 50mm, Lockout |
Headset | CUBE FPH835D, Semi-Integrated |
Frame type | Easy Entry |
Drive | |
Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Crank | ACID E-Crank, 38T, 175mm |
Cassette | Shimano Deore CS-M6100, 10-51T |
Chain | Shimano CN-M6100 |
Ebike | |
Battery pack | Bosch PowerPack 500 |
E-Engine | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |

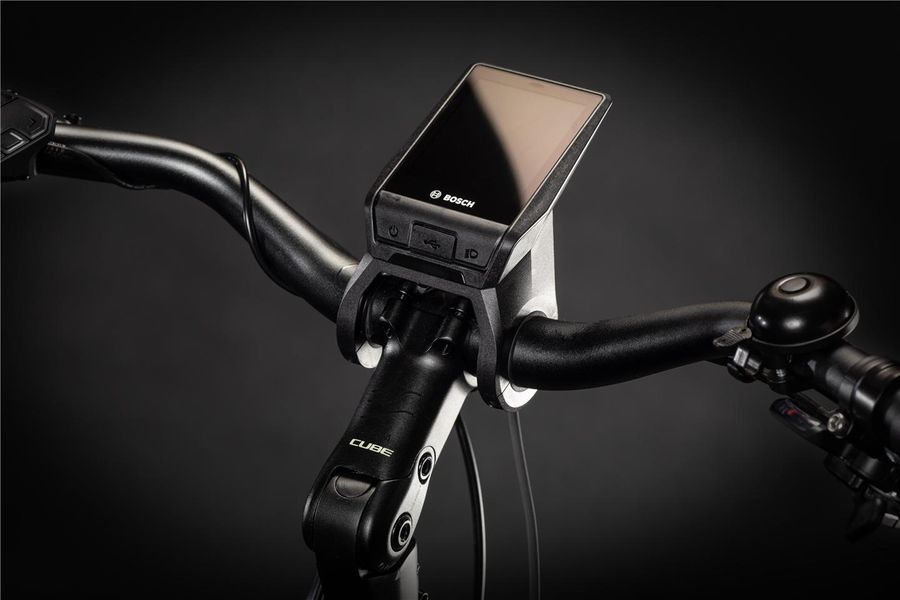

Display | Bosch Nyon |
Charger | Bosch 2A |
Brakes | |
Brake | Shimano BR-MT420/MT400, Hydr. Disc Brake (180/180) |
Wheels | |
Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
Front hub | Shimano HB-M4050, QR, Centerlock |
Rear hub | Shimano FH-MT401, QR, Centerlock |
Tires | Schwalbe Big Ben, Performance, 55-622 |
Wheel Size | 28'' |
Cockpit | |
Handlebar | CUBE Comfort Shape Bar |
Stem | Satori Up2 Plus, 31.8mm, Adjustable |
Seat | |
Saddle | Natural Fit Shen+ |
Seatpost | CUBE Suspension Seatpost, 27.2mm |
Saddle clamp | CUBE Varioclose, 31.8mm |
Light | |
Headlight | Herrmans H-Black MR8, 6-12V, DC |
Back light | Herrmans H-Trace |
Acessory | |
Mudguards | ACID 65 |
Rack | CUBE Integrated Carrier 2.0, CUBE Adapter Compatible, SnapIt Compatible |
Bike stand | CUBEstand Pro, Adjustable |
Other | |
Customization - only in store | |
Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | |
Manufacturer Information | Pending System GmbH & Co. KG |
