Carbon
SR Suntour Aion 38X 2CR Air (170mm)
Shimano Deore (1x12)
Magura MT Thirty (203/203)
SR Suntour Edge EVO 2CR
Bosch Perf. CX (85Nm) / PowerTube (800Wh)

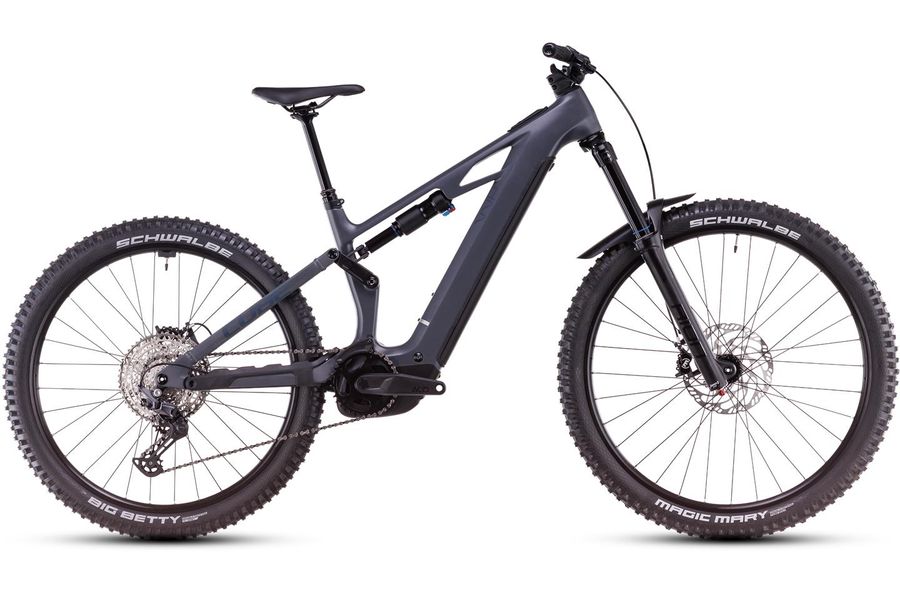

You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The 85Nm Bosch CX drive and 800Wh PowerTube battery work with Shimano's reliable Deore 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Thirty hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Edge Evo 2 CR shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.
Here you can find more models of this series:
Bike category | E-MTB Full Suspension |
---|---|
Brand | Cube |
Model year | 2025 |
Colour | slapgrey´n´prism |
Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
Weight | 25,2 kg |
Customization - only in store | |
Configuration - available in our stores | |
Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
Frame type | Fully |
Fork | SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm |
Rear Shocks | SR Suntour Edge EVO 2CR 230x65mm |
Wheel Size | 27,5+, 29'' |
Front tire | Schwalbe Magic Mary, Performance, 2.4 |
Rear tire | Schwalbe Big Betty, Performance, 2.4 |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Rear derailleur | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
Crank | ACID MTB Hybrid Pro, 36T |
Cassette | Shimano Deore CS-M6100, 10-51T |
Chain | KMC e12 |
Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Front hub | CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt |
Rear hub | CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt |
Brake | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
E-Engine | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
Battery pack | Bosch PowerTube 800Wh |
Remote | Bosch System Control incl. Mini Remote |
Charger | Bosch 2A |
Handlebar | CUBE Rise Trail Bar 35 |
Grips | ACID Disrupt, Soft Compound |
Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
Saddle | ACID Venec Lite |
Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Saddle clamp | CUBE Semi-Integrated |
Max. total weight | 150 kg |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Pending System GmbH & Co. KG |
