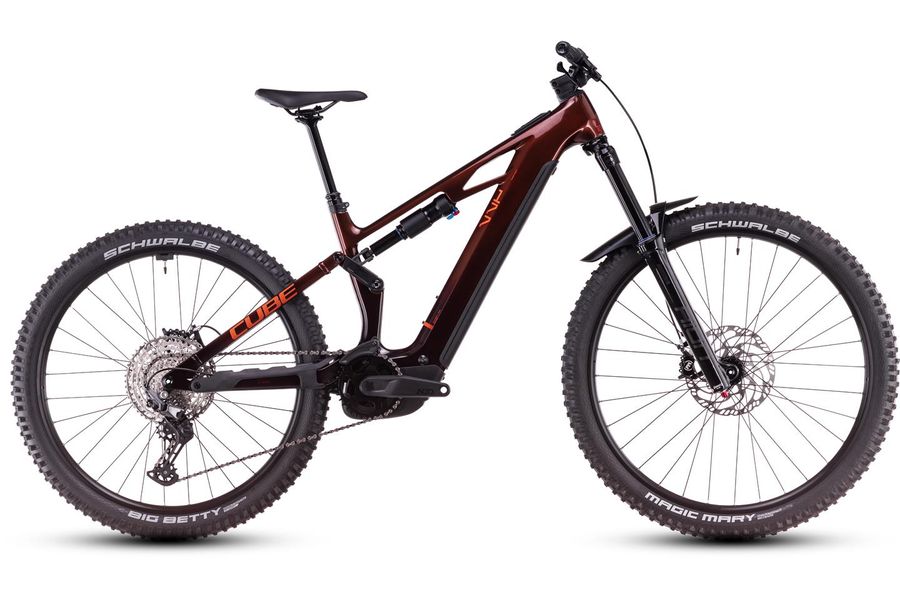

CUBE Stereo Hybrid ONE77 HPC Race 800

Item no. 73072
4,299.00 € *
[1]
Variant
Size
With the CUBE Stereo Hybrid ONE77 HPC Race, trail enthusiasts get a real powerhouse. The SR Suntour Aion air suspension fork and the SR Suntour Edge Evo shock offer uncompromising performance. The Shimano Deore 1x12 drive and the Bosch Performance CX motor ensure outstanding efficiency and power transmission. Perfect for riders who want to be prepared for technical trails and challenging riding conditions.

Highlights

Frame

Carbon

Fork

SR Suntour Aion 38X 2CR Air (170mm)

Shifter

Shimano Deore (1x12)

Brakes

Magura MT Thirty (203/203)

Rear Shock

SR Suntour Edge EVO 2CR

Drive Unit

Bosch Perf. CX (85Nm) / PowerTube (800Wh)

CUBE Stereo Hybrid ONE77 HPC Race 800

You can tell from its purposeful stance and mullet wheel sizing that the Stereo Hybrid ONE77 HPC Race means business. But the devil, as always, is in the detail. The 85Nm Bosch CX drive and 800Wh PowerTube battery work with Shimano's reliable Deore 12-speed gears to swallow tricky routes whole. Meanwhile, a pair of Magura MT Thirty hydraulic disc brakes and 2.4in Schwalbe Magic Mary and Big Betty tyres have the grip you need to stay in control, whatever the trail throws your way. A Suntour Aion 38X fork and Edge Evo 2 CR shock help keep the rubber side down and rolling. And, with a remote dropper post thrown into the mix, the only question is which line you'll take back down the mountain.

Frame details

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks and reduced maintenance, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a direct mount chainguard to keep you driving forwards even when the going gets rough.

Bosch Performance CX - redefining e-biking!

  • Powerful motor: The Bosch Performance Line CX motor offers 85 Nm of torque and 600 watts of peak power.
  • Optimum support: Ideal for steep climbs and long uphill sections
  • Fast response: Improved sensor technology ensures a dynamic and natural riding experience.
  • Lightweight: At just 2.8 kg, the motor improves the handling of the e-mountainbike.
  • Quiet operation: Quiet operation of the motor for a particularly pleasant ride.
  • Revised modes:
    • Extended Boost helps you overcome obstacles.
    • Improved push assistance offers more control in difficult terrain.

Here you can find more models of this series:

Additional Information

Bike category E-MTB Full Suspension
Brand Cube
Model year 2025
Colour liquidorange´n´orange
Price Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01)
Weight 25,2 kg
Customization - only in store
Configuration - available in our stores
Frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Frame type Fully
Fork SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm
Rear Shocks SR Suntour Edge EVO 2CR 230x65mm
Wheel Size 27,5+, 29''
Front tire Schwalbe Magic Mary, Performance, 2.4
Rear tire Schwalbe Big Betty, Performance, 2.4
Rims CUBE EX30, 32H, Disc, Tubeless Ready
Rear derailleur Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters Shimano Deore SL-M6100, Rapidfire-Plus
Crank ACID MTB Hybrid Pro, 36T
Cassette Shimano Deore CS-M6100, 10-51T
Chain KMC e12
Chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Front hub CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear hub CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Brake Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
E-Engine Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery pack Bosch PowerTube 800Wh
Remote Bosch System Control incl. Mini Remote
Charger Bosch 2A
Handlebar CUBE Rise Trail Bar 35
Grips ACID Disrupt, Soft Compound
Stem CUBE Performance Stem E-MTB 35, FPI-Link
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Saddle ACID Venec Lite
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Saddle clamp CUBE Semi-Integrated
Max. total weight 150 kg
Annotation The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality.
