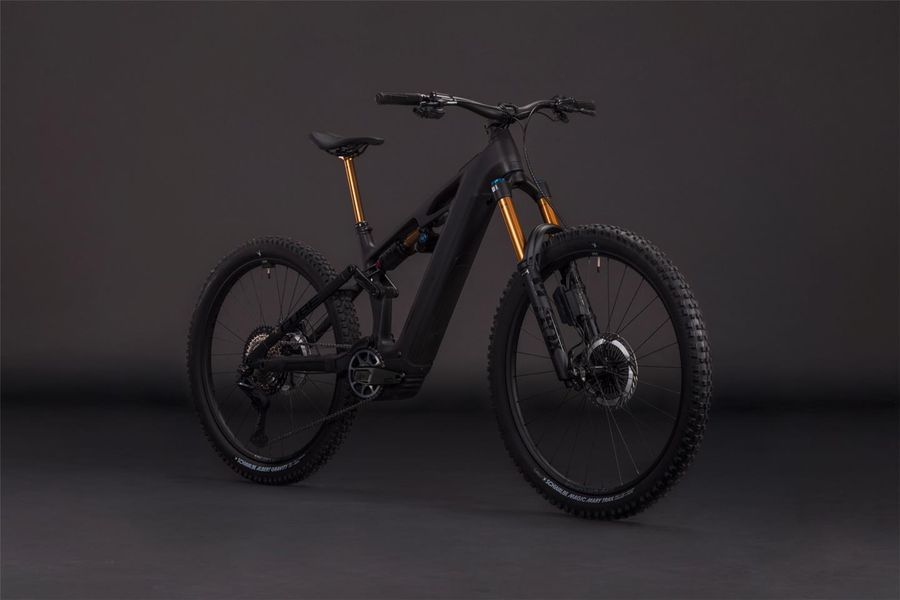

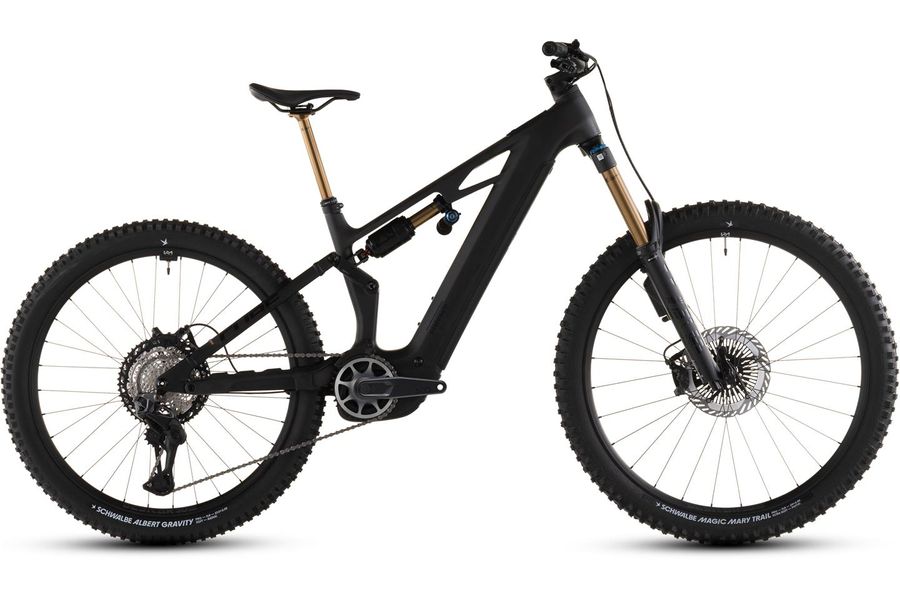

CUBE Stereo Hybrid ONE77 HPC AT 800 (2026)
Highlights
Frame
Carbon
Fork
FOX 38 Float Factory GRIPX2 (170mm)
Shifter
Shimano XT Di2 (1x12)
Brakes
Shimano XT ABS Pro (203/203)
Rear Shock
FOX Float X2 Factory
Drive Unit
Bosch Perf. CX (100Nm) / PowerTube (800Wh)
CUBE Stereo Hybrid ONE77 HPC AT 800
The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind. To that end, we fitted Fox's Float 38 Factory fork and Float X2 Factory shock – because when you're making full use of 170mm of travel, you need to know you're in good hands. Shimano's XT Di2 1x12 gears select with uncanny electronic precision, getting your power to the trail with help from Bosch's CX drive, the 800Wh PowerTube battery, a Kiox 400C top tube-mounted display and an ACID carbon crank. We added a remote dropper seatpost for extra confidence and manoeuvrability on tough trails, while Shimano XT hydraulic disc brakes with ABS Pro ensure you can safely keep your speed in check. And Newmen Beskar 30 wheels – in mullet configuration – with Schwalbe 2.5in Magic Mary and Albert tyres – keep you rolling, whatever obstacles lie in your path.
Frame Details
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Additional Information
Bike category | E-MTB Full Suspension |
---|---|
Brand | Cube |
Model year | 2026 |
Colour | carbon´n´gold |
Customization - only in store | |
Configuration - available in our stores | |
Wheel Size | 27,5+, 29'' |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |

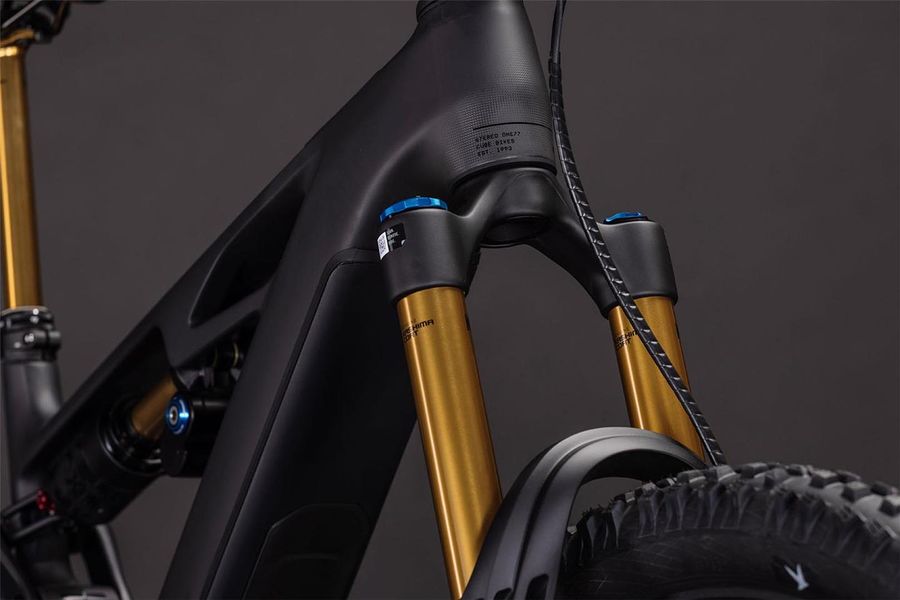

Fork | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |

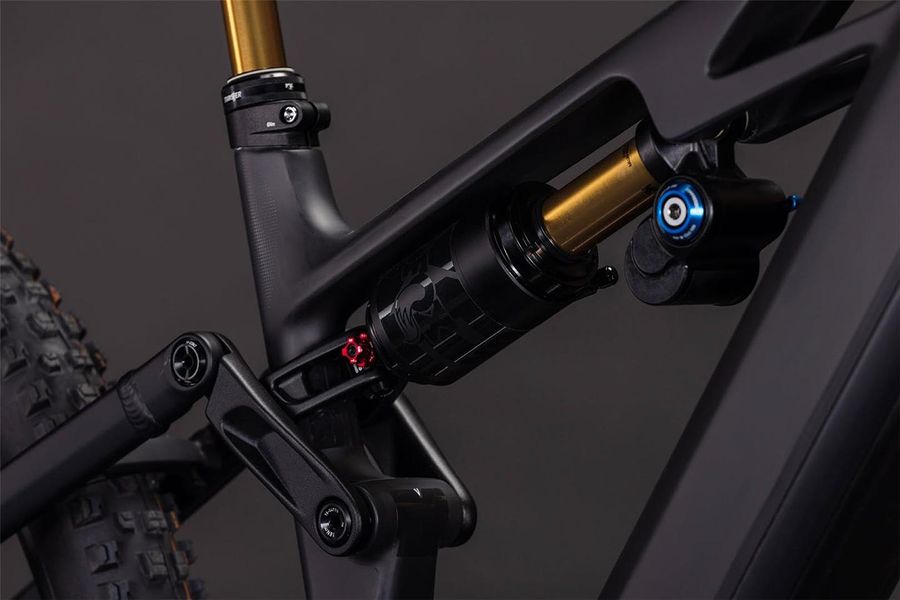

Rear Shocks | Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
Frame type | Fully |
Shifters | Shimano XT Di2 SW-M8250-IR, Direct Attach |
Rear derailleur | Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
Chain guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
Crank | ACID MTB Hybrid Carbon, 36T |
Cassette | Shimano XT CS-M8100, 10-51T |
Chain | Shimano XT CN-M8100 |
Battery pack | Bosch PowerTube 800 |
E-Engine | Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
Remote | Bosch Mini Remote |

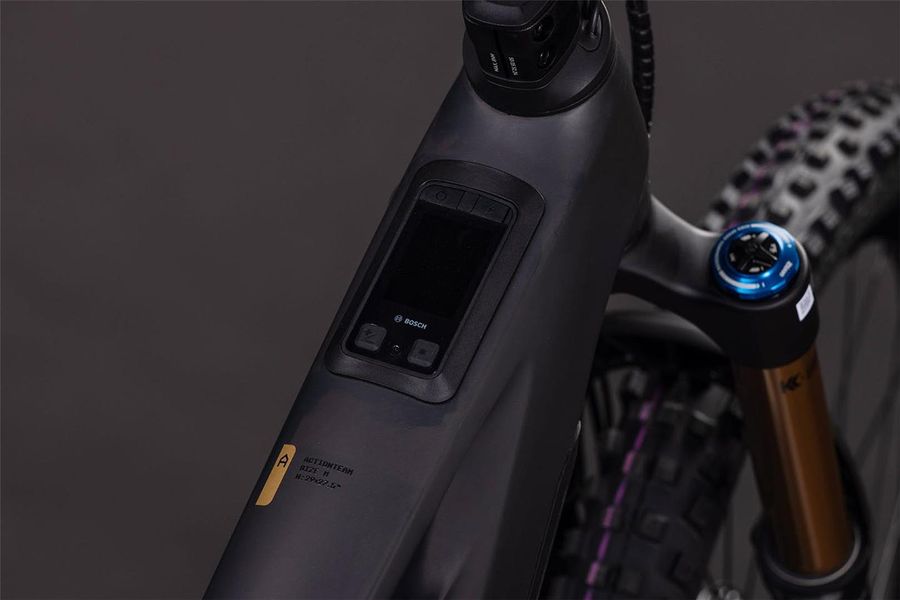

Display | Bosch Kiox 400C |
Charger | Bosch 4A |
Brake | Shimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) |
Wheel set | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Front tire | Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
Rear tire | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
Handlebar | Race Face ERA 35 |
Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
Grips | ACID Disrupt, Soft Compound |
Saddle | ACID Venec EMTB Trail 140 |
Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated |
Saddle clamp | CUBE Semi-Integrated |
Weight | 24,7 kg |
Max. total weight | 160 kg |
Manufacturer Information | Pending System GmbH & Co. KG |
Product Safety Documents |
