A bike for the rough. So you can summarize this bike. In more detail, we mean the RockShox ZEB Select Charger RC 170mm, Shimano Deore 4-piston brakes and the 12-speed XT / Deore shifting group. Uphill brings you the Bosch CX Gen4 motor incl. 750Wh battery (starting from size M), downhill there is only one way: the steepest!
C:62 Carbon
RockShox ZEB Select Charger RC (170mm)
Shimano XT/Deore (1x12)
Shimano Deore (203/203)
RockShox Deluxe Select+
Bosch Perf. CX Gen4 (85 Nm) - PowerTube (750 Wh)
This is the e-mtb that re-writes the rules. Powered by Bosch's fourth-generation CX drive system and a high-capacity 750Wh battery for more range than ever, our Stereo Hybrid 160 HPC SL 750's blend of gravity prowess and all-round trail ability sets it apart. The RockShox Zeb Select fork's bump-swallowing ability works with the Deluxe Select+ rear shock and carefully tuned kinematics to tame any trail. Shimano's legendary XT 1x12 transmission gives you the range you need to tackle any climb. And powerful, progressive Shimano hydraulic disc brakes - with oversize rotors front and rear - combined with a remote dropper post put you in full control. It's time to get your enduro on.
Completely new for 2022, the Stereo Hybrid 160 HPC 750's frame is designed to blend world-class trail-taming abilities with superb handling and more range than ever before. With the high-capacity 750Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, it's as powerful as it is good to look at. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. Integrated cable routing removes cable holes from the head tube area for greater strength and a neater appearance. The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast. And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss. In frame size S the bike comes with a 625Wh battery.
Here you find the frame size S
Here you find all CUBE Stereo Hybrid models:
Bike category | E-MTB Full Suspension |
---|---|
Brand | Cube |
Model year | 2022 |
Colour | desert´n´black |
Weight | 24,5 kg |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |

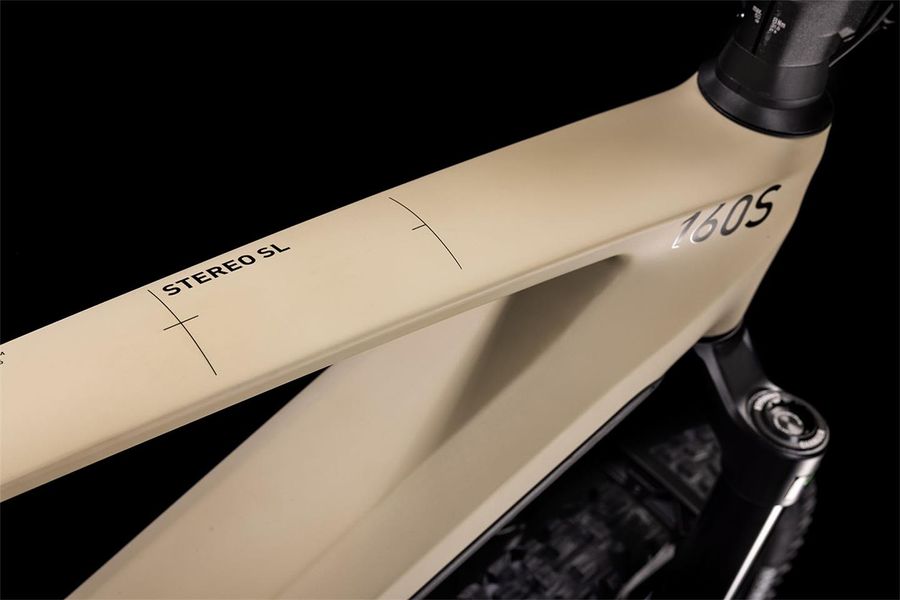

Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
Frame type | Fully |
Fork | RockShox ZEB Select Charger RC, 15x110mm, Tapered, eMTB Approved, 170mm |
Rear Shocks | RockShox Deluxe Select+, 205x60mm, Rebound Adjust, Trunnion Mount, Lockout |
Wheel Size | 27,5'' |
Front tire | Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT |
Rear tire | Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT |
Wheel set | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
Crank | ACID E-Crank, 165mm, 36T |
Cassette | Shimano Deore CS-M6100, 10-51T |
Chain | Shimano CN-M6100 |
Brake | Shimano Deore BR-M6120, Hydr. Disc Brake (203/203) |
E-Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
Battery pack | Bosch PowerTube 750 |

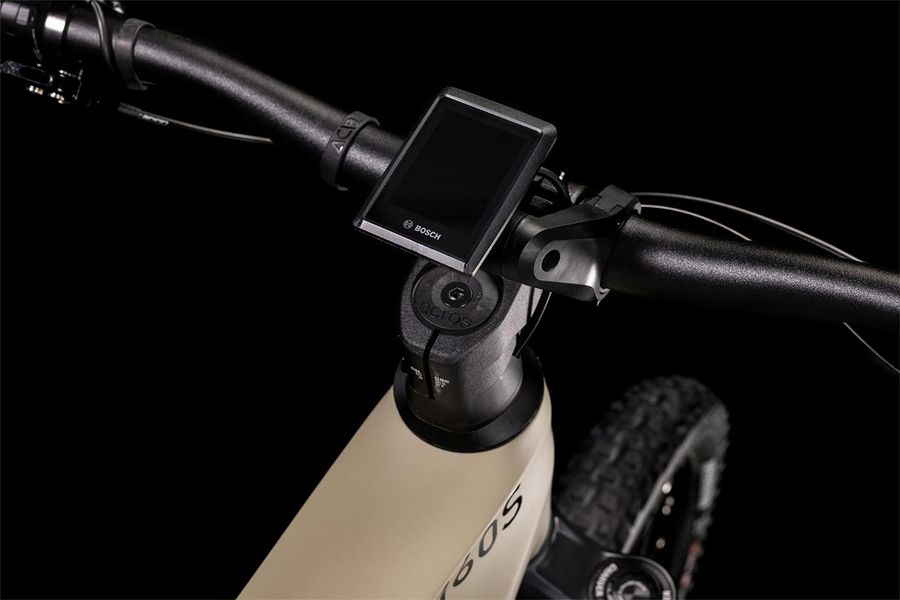

Display | Bosch Kiox 300 |
Charger | Bosch 4A |
Handlebar | Newmen Evolution SL 318.25, 780mm |
Grips | ACID Disrupt, Soft Compound |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |

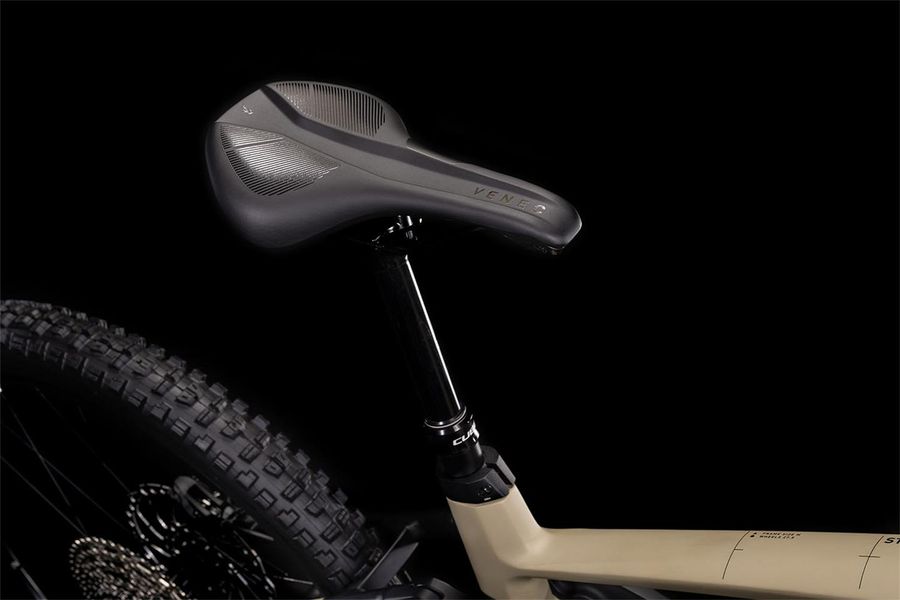

Saddle | Natural Fit Venec |
Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Saddle clamp | CUBE Screwlock Semi Integrated, 34.9mm |
Max. total weight | 135 kg |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Manufacturer Information | Pending System GmbH & Co. KG |
