A great bike should get out of the way and let you focus on the ride, so we started with a Fox 34 Rhythm fork and Fox Float DPS EVOL shock for the ultimate in comfort and control. The comes with a 625Wh battery in sizes XS and S.
C:62 Carbon
Fox 34 Rhythm (150mm)
Shimano XT/Deore (1x12)
Shimano XT (203/203)
Fox Float DPS EVOL
Bosch Performance CX Gen4 (85Nm) / PowerTube (625Wh)
The better sorted a bike is, the less you'll notice it when you're riding. That's why, for the compact-framed Stereo Hybrid 140 HPC SL 625, we began by choosing a Fox 34 Rhythm fork and matching Float DPS EVOL shock. Combined with the Newmen wheelset and Schwalbe 2.6in tyres, it's the closest thing to a magic carpet ride. Bosch's fourth-generation CX drive unit and 625Wh battery delivers your power to the trail via Shimano's slick-shifting, super-reliable XT 1x12 transmission. And strong, progressive Shimano XT four-piston hydraulic disc brakes with oversize rotors bring you safely to a stop, on demand. With a remote dropper post thrown into the mix, you'll be wondering how you ever managed without it. Simply add your spirit of adventure.
The Stereo Hybrid 140 HPC 625's compact dimensions give it an agility advantage over its larger stablemates, but with our Modular Battery System and a 625Wh power source you've got all the juice you need for your trail adventures. The battery and fourth-generation Bosch CX drive unit are protected from dust and moisture, of course. The Boost 148 rear axle, large pivot bearings and internal cable routing translate into great handling and lower maintenance. And our All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun. Starting with frame size M, the bike is available with brand new geometry and 750Wh battery.
Here you find the frame sizes M, L and XL:
Here you find all CUBE Stereo Hybrid models:
Bike category | E-MTB Full Suspension |
---|---|
Brand | Cube |
Colour | flashgrey'n'orange |
Weight | 23,9 kg |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing |
Frame type | Fully |
Fork | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm |
Rear Shocks | Fox Float DPS EVOL, 185x55mm, Open/Medium/Firm Mode, Trunnion Mount |
Wheel Size | 27,5'' |
Front tire | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6 |
Rear tire | Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 |
Wheel set | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |

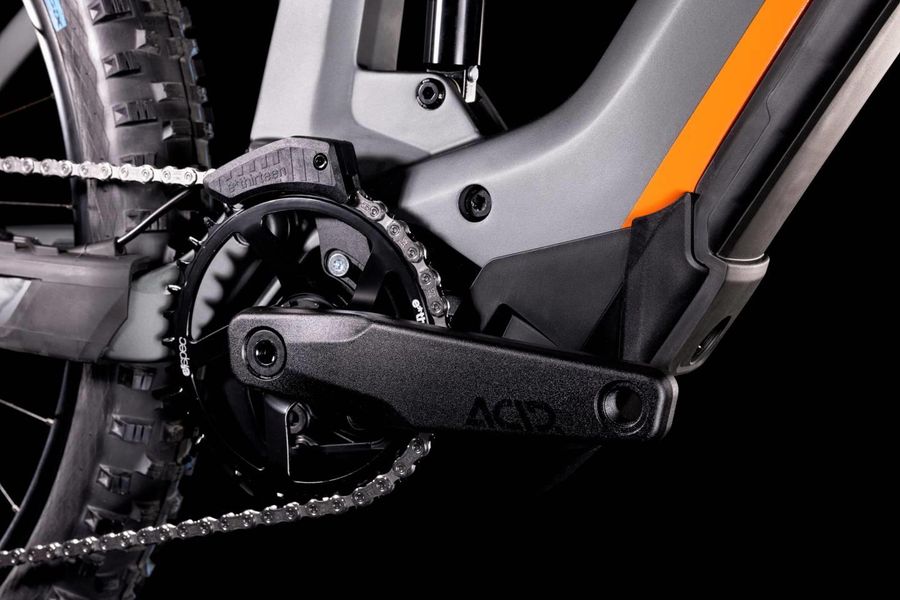

Crank | ACID E-Crank, 165mm, 36T |
Cassette | Shimano Deore CS-M6100, 10-51T |
Chain | Shimano CN-M6100 |
Brake | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
E-Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
Battery pack | Bosch PowerTube 625 |
Display | Bosch Kiox |
Charger | Bosch 4A |
Handlebar | Newmen Evolution SL 318.25, 760mm |
Grips | ACID Disrupt, Soft Compound |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Saddle | Natural Fit Venec |
Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm) |
Saddle clamp | CUBE Screwlock Semi Integrated, 34.9mm |
Max. total weight | 135 kg |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Manufacturer Information | Pending System GmbH & Co. KG |
