CUBE Stereo Hybrid 120 Pro 625 (2022)

Item no. 53448
3,749.00 € *
[1]
Size

Comfortable suspension, intuitive handling and reliable performance are all standard. Bosch's fourth-generation CX drive unit, Purion controller and our neat Modular Battery System mesh seamlessly with Shimano's precise 1x12 gears for trail-taming power.

Highlights

Frame

Aluminium Superlite

Fork

RockShox Recon Silver RL Air (120mm)

Shifter

Shimano Deore (1x12)

Brakes

Shimano BR-MT420 (203/203)

Rear Shock

RockShox Deluxe Select

Drive Unit

Bosch Performance CX Gen4 (85Nm) / PowerTube (625Wh)

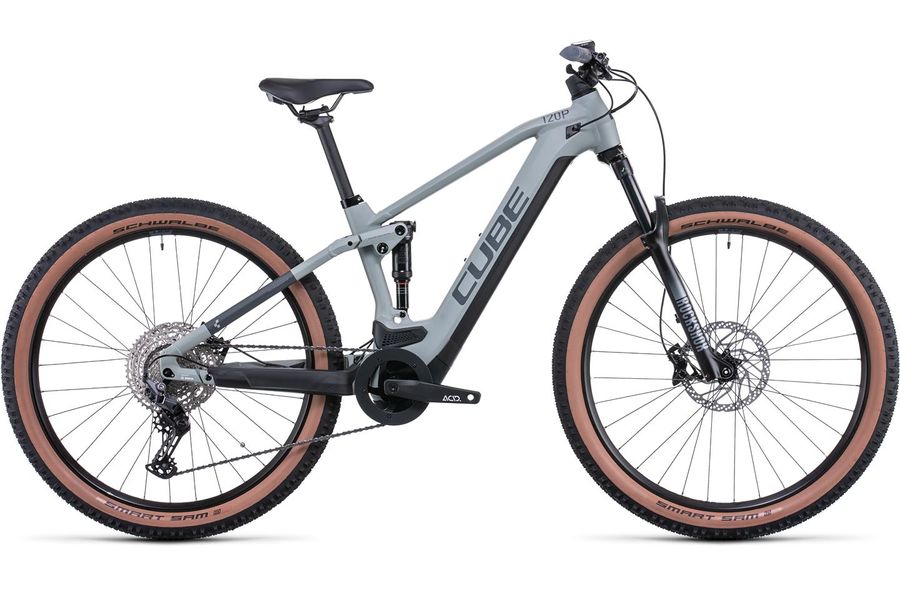

CUBE Stereo Hybrid 120 Pro 625 lunar'n'grey

With the Stereo Hybrid 120 Pro, comfortable, ground-hugging suspension combined with intuitive handling and reliable, fuss-free performance are all part of the deal. We combined Bosch's fourth-generation CX drive unit and a 625Wh battery with Shimano's legendarily easy-to-use Deore 1x12 gears for simple trail-taming power. Then we added four-piston hydraulic disc brakes with oversized rotors front and rear. Combined with Schwalbe's grippy 2.6in tyres, they'll ensure you're always in control. And RockShox suspension front and rear keeps the rubber side down. It's all you need for trail adventures.

Frame

There's some clever stuff going on inside the Stereo Hybrid 120's sleek frame. Our Modular Battery System tucks the battery out of sight - and out of the way of dust and water. The refined four-bar suspension design keeps you isolated from trail shocks and vibration, and we wrapped the whole lot in our Comfort Geometry - with a stiffness-enhancing Boost 148 rear end and 1.5in head tube - for easy handling. We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand. And our Size Split system means there's a Stereo Hybrid 120 to suit every rider.

Here you can find all CUBE Stereo Hybrid models:

Additional Information

General
Bike category E-MTB Full Suspension
Colour lunar'n'grey
Weight 25,4 kg
Max. total weight 135 kg
Frame
Frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Fork RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 120mm, Lockout

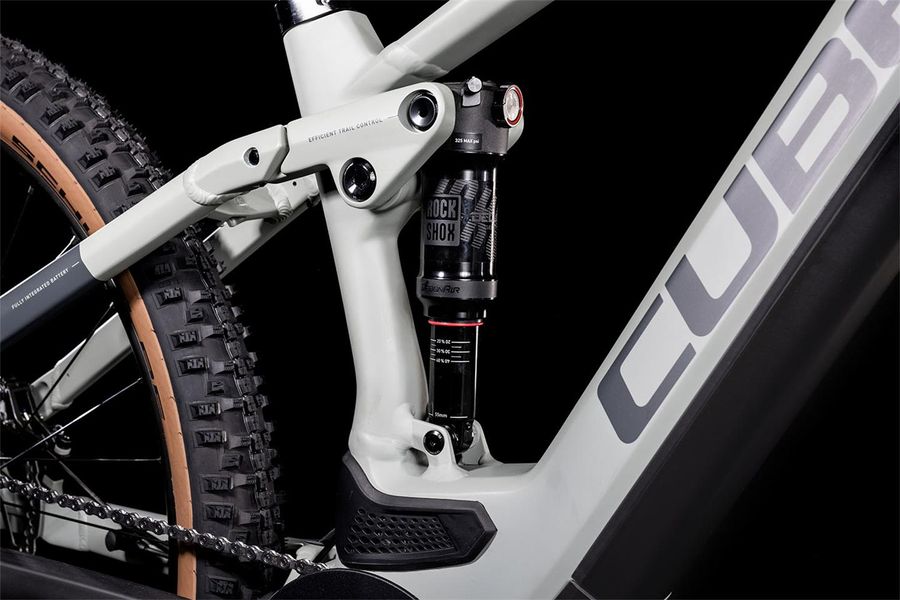

Rear Shocks RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount
Headset 27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Frame type Fully
Drive
Shifters Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Rear derailleur Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Crank ACID E-Crank, 170mm, 38T
Cassette Shimano Deore CS-M6100, 10-51T
Chain Shimano CN-M6100
Ebike
Battery pack Bosch PowerTube 625
E-Engine Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Display Bosch Purion
Charger Bosch 2A
Brakes
Brake Shimano BR-MT420, Hydr. Disc Brake (203/203)
Wheels
Rims CUBE EX30, 32H, Disc, Tubeless Ready
Tires Schwalbe Smart Sam, Active, 2.6
Wheel Size 27,5'', 29''
Front hub Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear hub Shimano FH-MT410-B, 12mm, Boost, Centerlock
Cockpit
Handlebar Newmen Evolution SL 318.25, 760mm
Stem CUBE Performance Stem E-MTB, 31.8mm
Grips Natural Fit All Terrain
Seat
Saddle Natural Fit Sequence
Seatpost CUBE Performance Post, 30.9mm
Saddle clamp CUBE Screwlock Semi Integrated, 34.9mm
Other
Customization - only in store Anpassen der optimalen Sitzposition entsprechend deiner Anatomie
Configuration - available in our stores Individuelles Fahrwerks Setup durch geschulte Mitarbeiter
Annotation Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality.
