Highlights
-
Lighting
ACID Dynamo PRO-D 100
-
Frame
Aluminium
-
Fork
SR Suntour NCX32 E LO Air (63mm)
-
Tires
Schwalbe Marathon Mondial, 47-622
-
Shifter
Shimano CUES (2x11)
-
Brakes
Shimano BR-MT200/UR300 (180/160)
CUBE Kathmandu EXC
From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. CUBE chose Shimano's Cues 2x11 gears for their ease of use and reliability. Then they added powerful Shimano hydraulic disc brakes and Schwalbe's 47mm Marathon Mondial tyres, so you know you're in full control at all times. Finally, CUBE selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With the Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need. Just jump on and go.
Frame Details

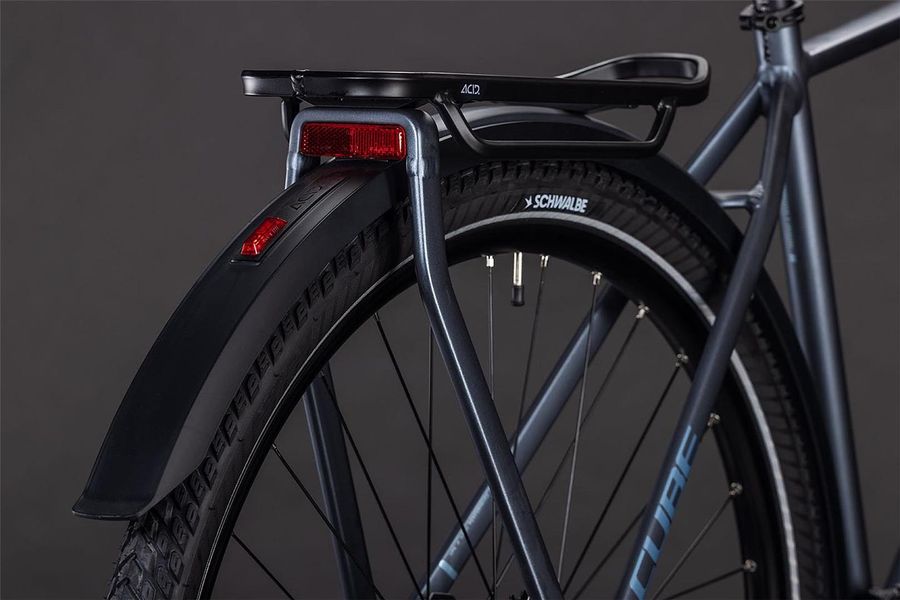

Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, CUBE designed it to work seamlessly with the ACID mudguard. They've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. They also equipped the rear end with a thru-axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to complement the frame's clean looks, CUBE reckons they've thought of everything. Just don't forget your toothbrush.
Additional Information
| General | |
| Bike category | Trekking Bike |
|---|---|
| Model year | 2026 |
| Colour | metallicgrey´n´chrome |
| Weight | 16,0 kg |
| Max. total weight | 140 kg |
| Frame | |
| Frame | Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted |
| Fork | SR Suntour NCX32 E LO Air, 63mm |
| Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| Bottom bracket | Shimano BB-MT501, 68mm BSA |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Front derailleur | Shimano Cues FD-U6010, Top Swing, 31.8mm |

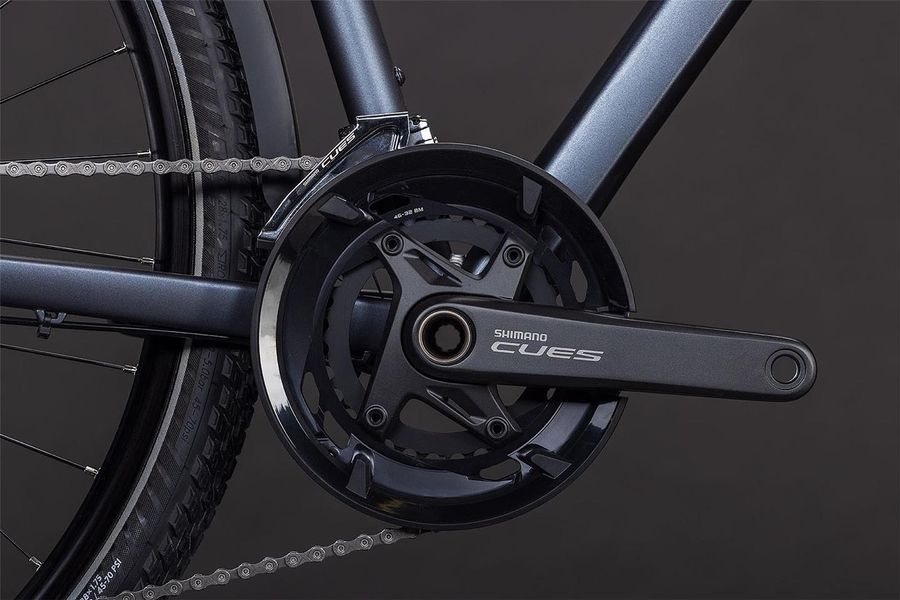

| Crank | Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard |
| Cassette | Shimano Cues CS-LG700, 11-45T |
| Chain | KMC xGlide |
| Brakes | |
| Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
| Wheels | |
| Rims | ACID EX25, 32H, Disc, Tubeless Ready |
| Front hub | ACID PL-8, 32H, QR, Centerlock |
| Rear hub | Shimano FH-TC500-HM, 12mm Through Axle, Centerlock |
| Tires | Schwalbe Marathon Mondial, 47-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | CUBE Comfort Trail Bar, 680mm |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Grips | ACID Travel Comfort |
| Seat | |
| Saddle | ACID Sequence Pro 170 |
| Seatpost | CUBE Performance Post, 27.2mm |
| Light | |

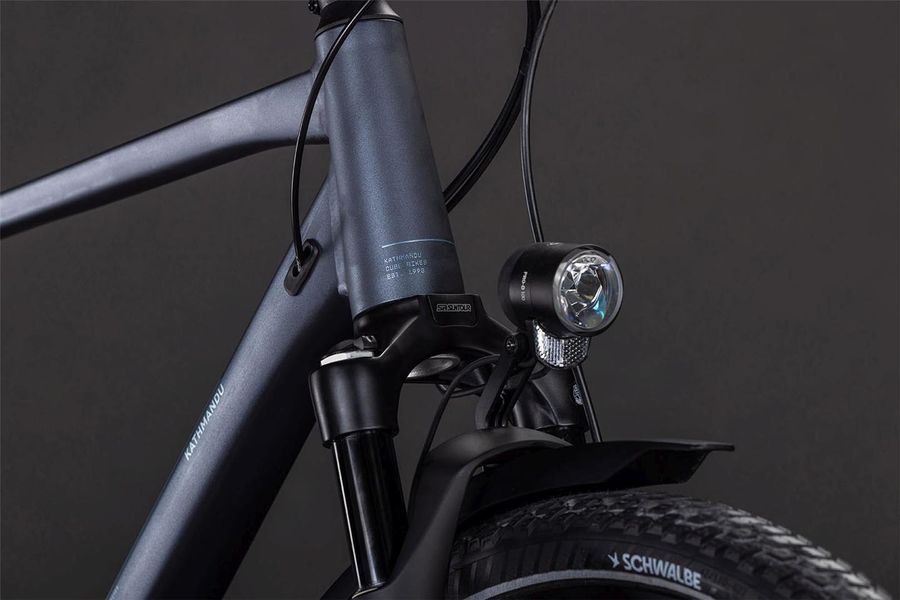

| Headlight | ACID Dynamo Front Light PRO-D 100 |
| Back light | ACID Mudguard Rear Light PRO-D, 6V, AC |
| Acessory | |
| Mudguards | ACID 56 Integrated Carrier 3.0 |
| Rack | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Bell | Reich Cycle Bells Ringsound |
| Bike stand | ACID FM Pure Kickstand |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
| Product Safety Documents | |
