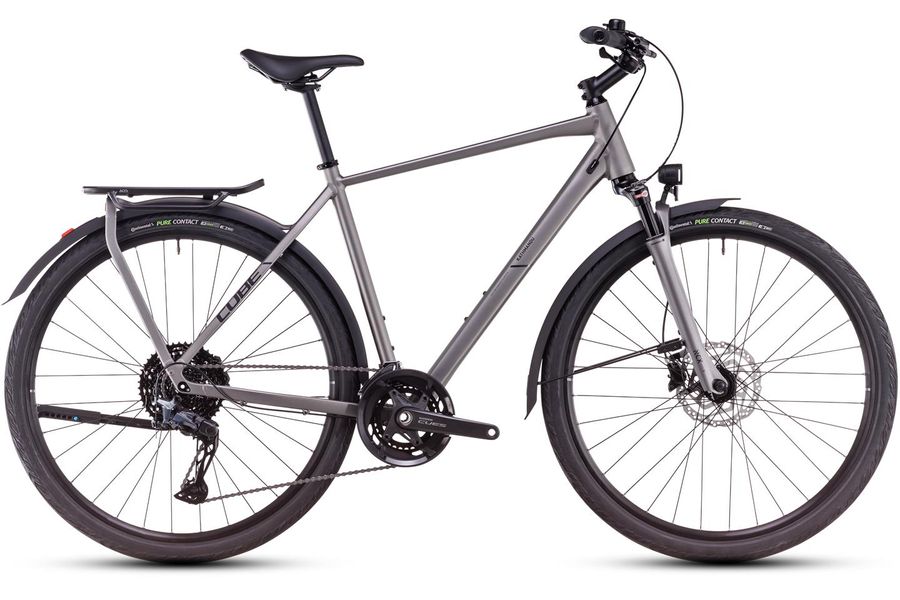

CUBE Kathmandu EXC
The CUBE Kathmandu EXC is the ideal companion for long tours. Equipped with a Suntour air suspension fork, a reliable Shimano Cues 2x11 drivetrain and service-friendly disc brakes, it will get you safely to your destination. The integrated pannier rack offers additional storage space for your adventure. Available in diamond und trapeze frames.
Highlights
Lighting
CUBE IQ-XS-Friendly N plus
Frame
Aluminium
Fork
SR Suntour NCX E RL Air T (63mm)
Tires
Continental Pure Contact, 47x622
Shifter
Shimano Cues (2x11)
Brakes
Shimano MT200/UR300 (160/180)
CUBE Kathmandu EXC
From zipping across town to tackling mountain passes you've never ridden before, the Kathmandu EXC from CUBE is designed to get you there – and back – in comfort and style. We chose Shimano's Cues 2x11 gears for their ease of use and reliability. Then we added powerful Shimano hydraulic disc brakes and Continental's Pure Contact tyres made from sustainably sourced rubber, so you know you're in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our Integrated Carrier 3.0 and a full complement of accessories – including mudguards, kickstand and lights – you've everything you need. Just jump on and go.
Frame details

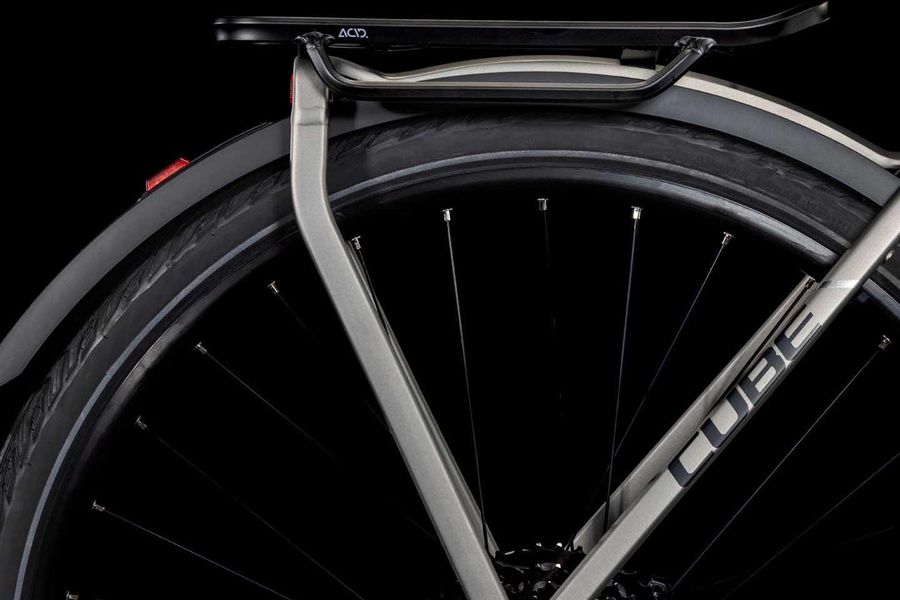

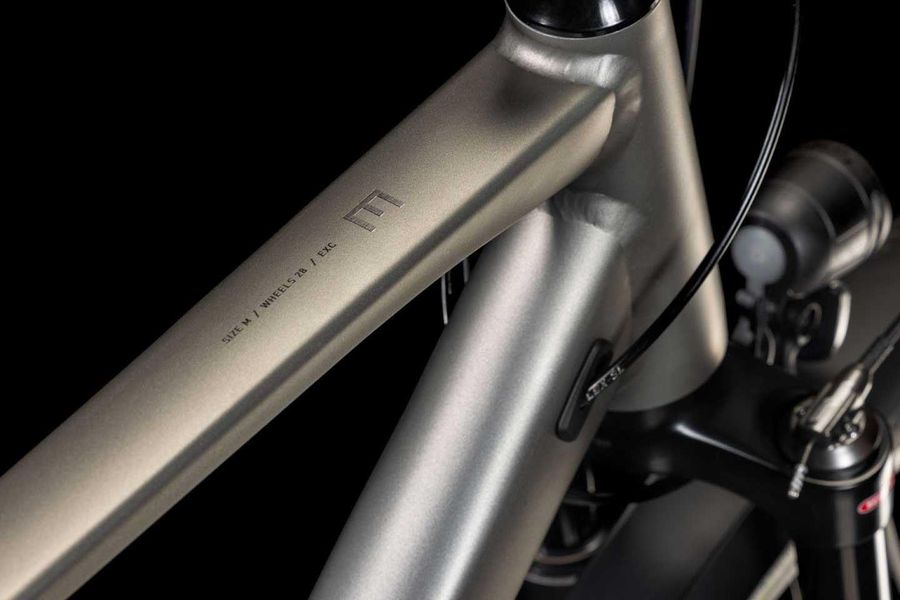

Attention to detail is a CUBE obsession. That's why, with the Kathmandu's Integrated Carrier 3.0, we designed it to work seamlessly with our ACID mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With Internal Cable Routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush.
Here you can find more models of this series:
Additional Information
Bike category | Trekking Bike |
---|---|
Brand | Cube |
Model year | 2025 |
Colour | grey´n´black |
Customization - only in store | |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |

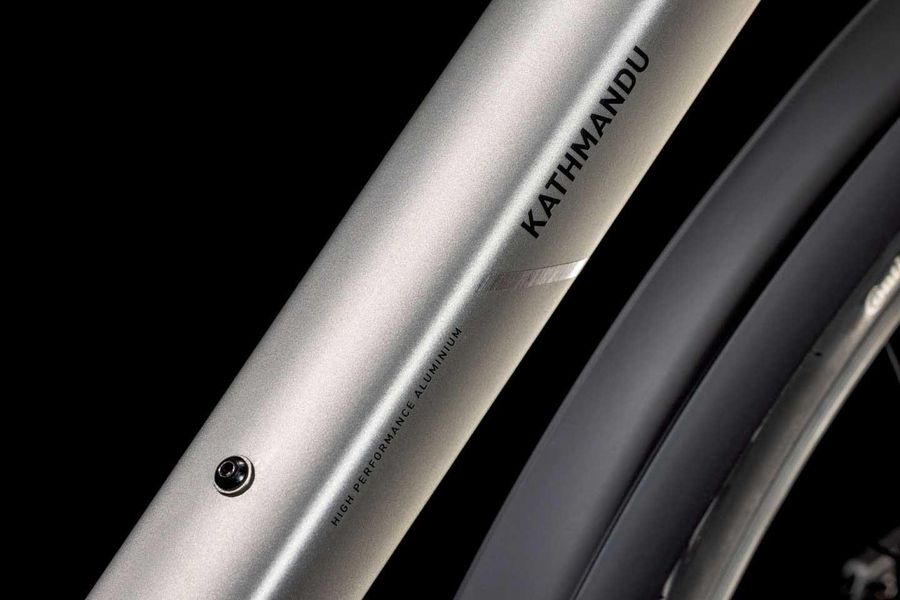

Frame | Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted |
Fork | SR Suntour NCX E RL Air T, 63mm, Remote Lockout |
Headset | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
Bottom bracket | Shimano BB-MT501, 68mm BSA |
Frame type | Diamond |
Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
Rear derailleur | Shimano Cues RD-U8020-SGS, 11-Speed |
Front derailleur | Shimano Cues FD-U6010, Top-Swing, 31.8mm |
Crank | Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard |
Cassette | Shimano Cues CS-LG700, 11-45T |
Chain | KMC xGlide |
Brake | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
Rims | CUBE EX25, 32H, Disc, Tubeless Ready |
Front hub | Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock |
Rear hub | Shimano FH-TC500-HM, 12mm Through Axle, Centerlock |
Tires | Continental Pure Contact, 47x622, Foldable |
Wheel Size | 28'' |
Handlebar | CUBE Comfort Trail Bar, 680mm |
Stem | CUBE Performance Stem Pro, 31.8mm |
Grips | ACID Travel Comfort |
Saddle | ACID Sequence Pro 160 |
Seatpost | CUBE Performance Post, 27.2mm |

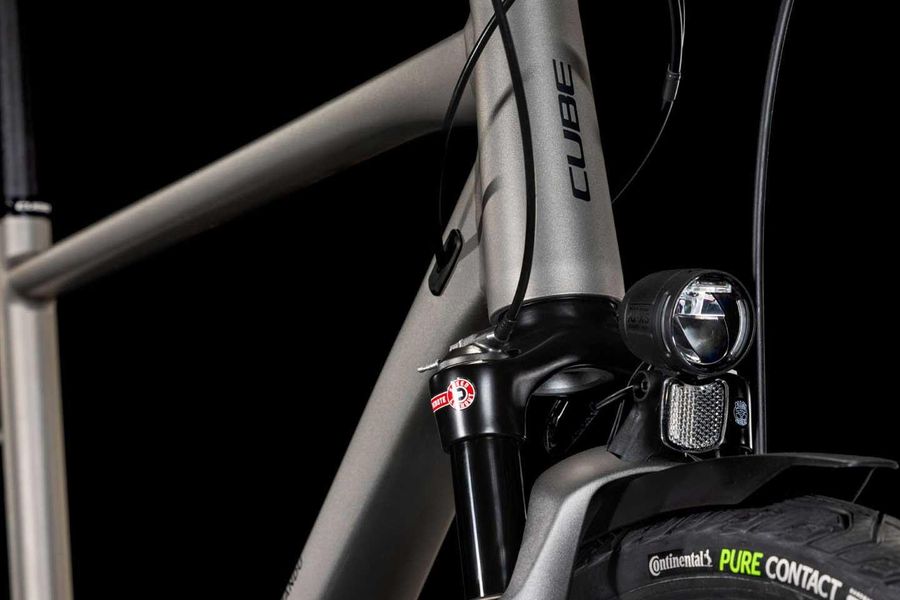

Headlight | CUBE IQ-XS-Friendly N plus |
Back light | ACID Mudguard Rear Light PRO-D, 6V, AC |
Mudguards | ACID 56 Integrated Carrier 3.0 |

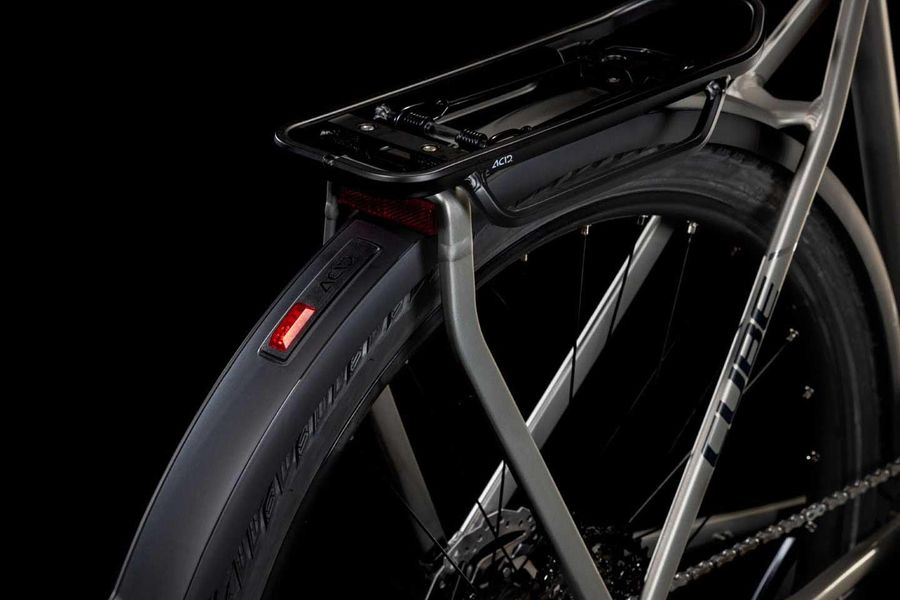

Rack | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
Bell | Easy Bell |
Bike stand | ACID FM Pure Kickstand |
Weight | 16 kg |
Max. total weight | 140 kg |
Manufacturer Information | Pending System GmbH & Co. KG |
