CUBE Fold Hybrid Deluxe 540 (2027)
Highlights
Lighting
ACID PRO-E 80 X-Connect
Frame
Aluminium
Fork
Aluminium
Shifter
Shimano Nexus (1x5)
Brakes
Shimano MT200 (180/180)
Drive Unit
Bosch Perf. Gen3 (75Nm) / PowerPack (540Wh)
CUBE Fold Hybrid Deluxe 540
A great bike should fit easily into your busy life – and that's exactly what we had in mind when we developed the Fold Hybrid Deluxe. Combining the power of Bosch's Smart System Performance motor and a 540Wh battery with the convenience of a sophisticated, easy-to-use folding design, it makes light work of any journey and stows into a compact form for storage or transport. Powerful hydraulic disc brakes help keep you safe in all weathers, while Shimano's simple, tough and almost maintenance-free 5-speed Nexus hub gears have the range you need. And the integrated rear carrier – and optional front carrier with simple HIC interface – make it easy to take everything you need with you. With mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.
Rahmen Details

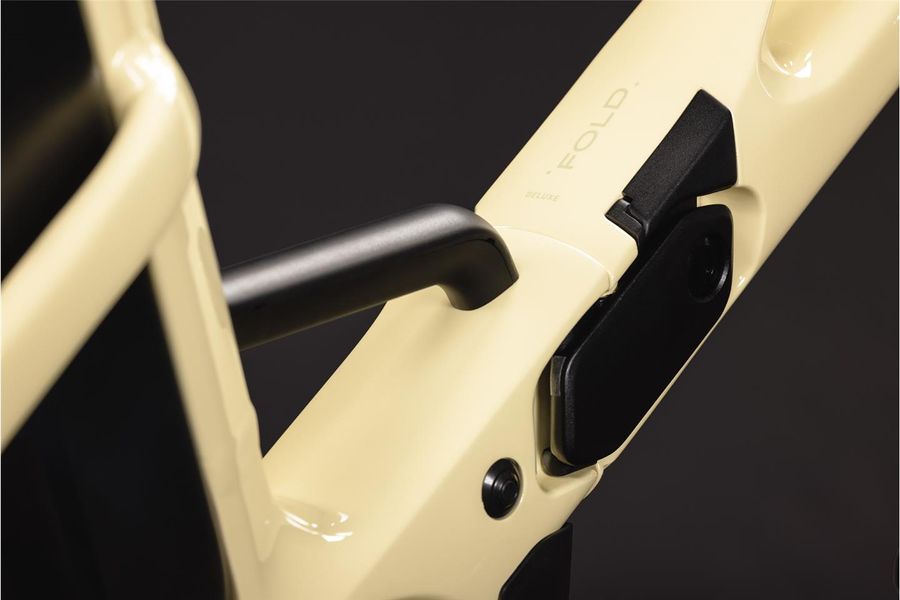

Our foldable Bosch e-bike already set the benchmark for flexibility, mobility and functionality. But now it also features an improved folding mechanism, a more ergonomic carry handle, HIC interface for easy attachment of front-mounted carriers and accessories, and a neatly integrated rear carrier. It's easy to store or transport, so it can go wherever you need it to go. The 540Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you the control you need via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height, and we included mudguards, a really stable kickstand and lights too. It's ready for anything.
Additional Information
| General | |
| Bike category | Compact Bike |
|---|---|
| Model year | 2027 |
| Colour | paleyellow´n´sage |
| Weight | 25,5 kg |
| Max. total weight | 150 kg |
| Frame | |
| Frame | Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar, Slider Dropout |
| Fork | Aluminium Rigid Fork, 20" |
| Headset | Acros Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Frame type | Compact Bike |
| Drive | |
| Shifters | Shimano Nexus SL-C7000-5, Revoshift |
| Crank | ACID Trekking Hybrid, 46T |
| Cassette | Gates CDX Shimano Nexus 28T |
| Belt | Gates CDC |
| Ebike | |
| Battery pack | Bosch PowerPack 540 |
| E-Engine | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Remote | Bosch Purion 200 with Integrated Display |
| Charger | Bosch 2A |
| Brakes | |
| Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Wheels | |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Front hub | Shimano HB-QC300, QR, Centerlock |
| Rear hub | Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut |
| Tires | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Wheel Size | 20'' |
| Cockpit | |
| Handlebar | CUBE Comfort Trail Bar, 25.4mm |
| Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |
| Grips | ACID Travel Comfort Gripshift |
| Seat | |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
| Light | |
| Headlight | ACID Front Light PRO-E 80 X-Connect, 12V, DC |
| Back light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Acessory | |
| Mudguards | ACID 62 IC-Mount |

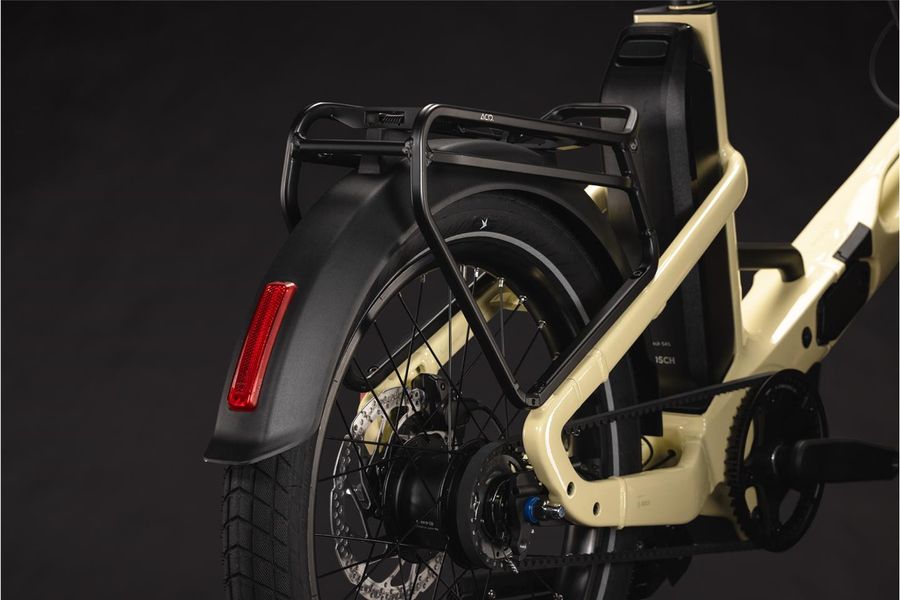

| Rack | ACID 20" Seatstay-Integrated Carrier, RILink, SM-Link |
| Bell | Easy Bell |
| Bike stand | Two Leg Kickstand |
| Other | |
| Customization - only in store | |
| Configuration - available in our stores | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
| Product Safety Documents | |
