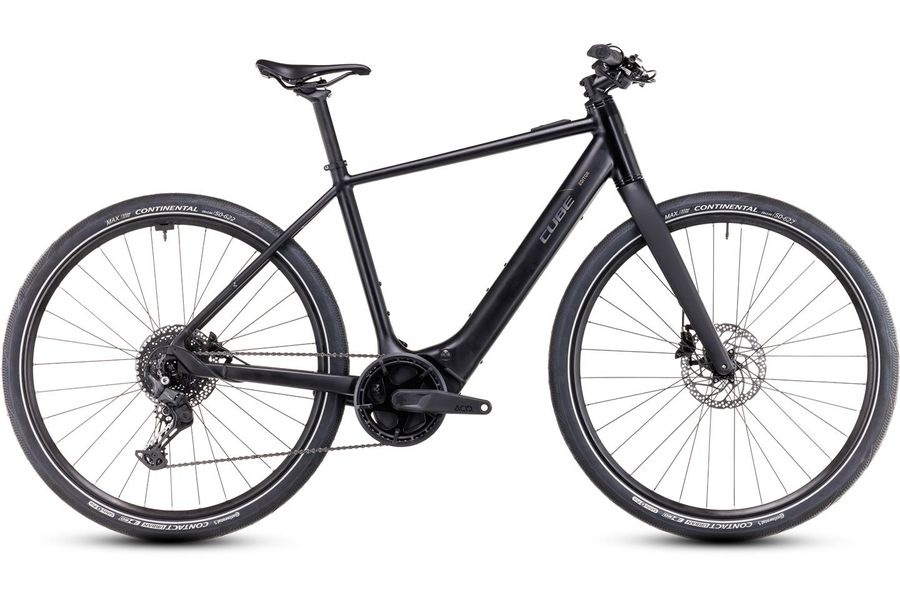

CUBE Editor Hybrid Pro 400X
This model is no longer available. Newer model: CUBE Editor Hybrid Pro 360 FE Trapeze (2027)
Newer model and more models from the series "CUBE Editor Hybrid"
- Item 1Coming soonNewer model

- Item 2Coming soon

- Item 3Coming soon

- Item 4Coming soon

- Item 5Coming soon

Highlights
-
Frame
Aluminium Superlite
-
Fork
Carbon
-
Tires
Conti Contact Urban, 50-622
-
Shifter
Shimano Cues (1x10)
-
Brakes
Shimano BR-MT200 (180/180)
-
Drive Unit
Bosch Perf. SX (55Nm) / CompactTube (400Wh)
CUBE Editor Hybrid Pro 400X
There's a new bike in town, and it's called the Editor Hybrid Pro 400X. Featuring Bosch's new lightweight SX drive system, a built-in 400Wh battery and a controller integrated into the top tube, it's the stealth urban e-bike you never knew you needed. Shimano's easy-to-use 10-speed Cues gears give you the range you need to make light work of any route, whilst powerful Shimano hydraulic disc brakes serve up safe stopping power in all weathers. With wide, grippy Continental Contact Urban 50mm tyres and a full carbon fork, you're always in control. Urban smarts, see?
Frame Details

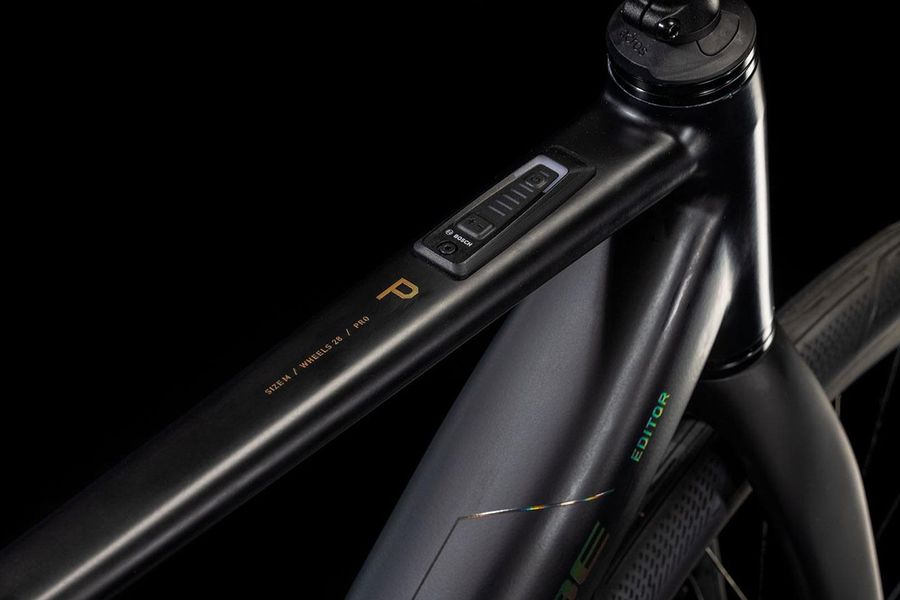

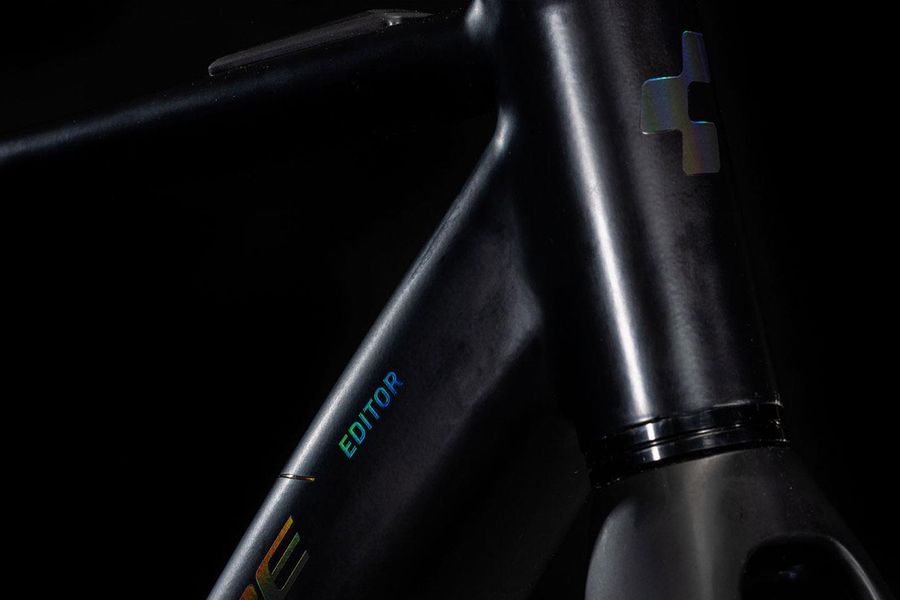

A practical urban bike should be elegant, understated and versatile. That's why, for the Editor Hybrid's frame, CUBE started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated for longer service life and to complement the uncluttered aesthetic, and CUBE even integrated the 400Wh battery in the down tube and mini controller in the top tube. And the full carbon fork is light, strong and suits the frame's pared-back aesthetic.
Additional Information
| General | |
| Bike category | City E-Bike |
|---|---|
| Model year | 2024, 2025 |
| Colour | black´n´spectral |
| Weight | 17,2 kg |
| Max. total weight | 115 kg |
| Fahrraddetails | |
| Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
| Frame | |
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fixed Integrated Battery, Advanced Internal Cable Routing |
| Fork | CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Rear derailleur | Shimano Cues RD-U6020-SGS, 10-Speed |
| Crank | ACID MTB Hybrid Pro, 44T |
| Cassette | Shimano Cues CS-LG300, 11-39T |
| Chain | KMC eGlide |
| Ebike | |
| Battery pack | Bosch CompactTube 400 |
| E-Engine | Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System |
| Remote | Bosch System Control, incl. Mini Remote |
| Charger | Bosch 2A |
| Brakes | |
| Brake | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Wheels | |
| Rims | CUBE EX21, 32H, Disc, Tubeless Ready |
| Front hub | Shimano Tiagra HB-RS470, 12mm, Centerlock |
| Rear hub | Shimano FH-QC300-HM, QR, Centerlock |
| Tires | Conti Contact Urban, 50-622 |
| Wheel Size | 28'' |
| Cockpit | |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Stem | CUBE Performance Stem Pro, 31.8mm |
| Grips | ACID Hybrid Tour |
| Seat | |
| Saddle | Natural Fit Venec |
| Seatpost | CUBE Performance Post, 30.9mm |
| Acessory | |
| Bell | ACID Alpha GR |
| Other | |
| Customization - only in store | |
| Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
