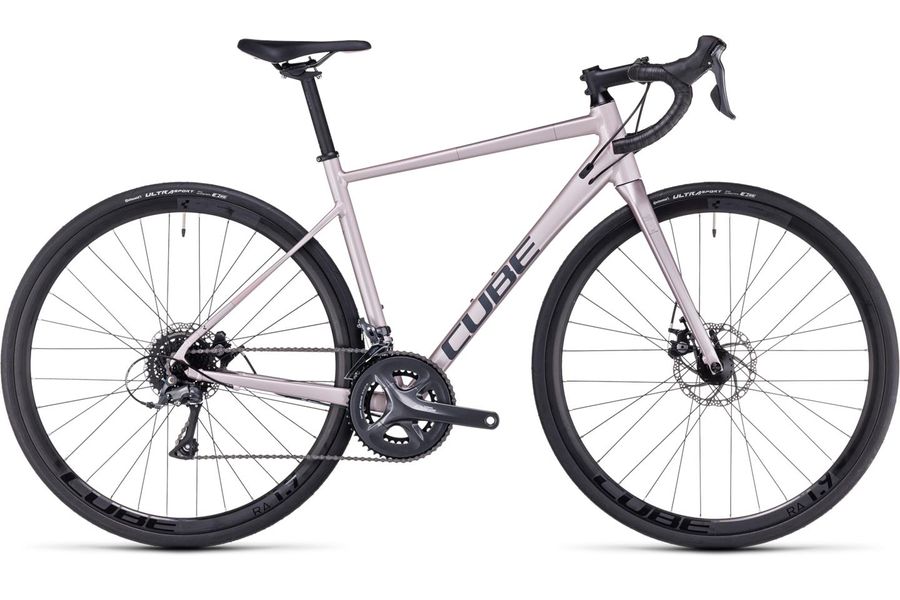

CUBE Axial WS
There's nothing like great freedom on two wheels - and many kilometres of open road in front of the front wheel. The Axial WS is the perfect tool for this passion, because it combines speed, riding comfort, elegance and easy handling. Full carbon fork and powerful, reliably decelerating disc brakes included.
Highlights
-
Frame
Aluminium Superlite
-
Fork
Carbon
-
Tires
Conti Ultra Sport 3, 28-622
-
Wheelset
28''
-
Shifter
Shimano Claris (2x8)
-
Brakes
Tektro MD-C510 (160/160)
Additional Information
| General | |
| Bike category | Road Bike |
|---|---|
| Model year | 2023, 2024 |
| Colour | greyrose´n´blush |
| Weight | 10,6 kg |
| Max. total weight | 115 kg |
| Frame | |

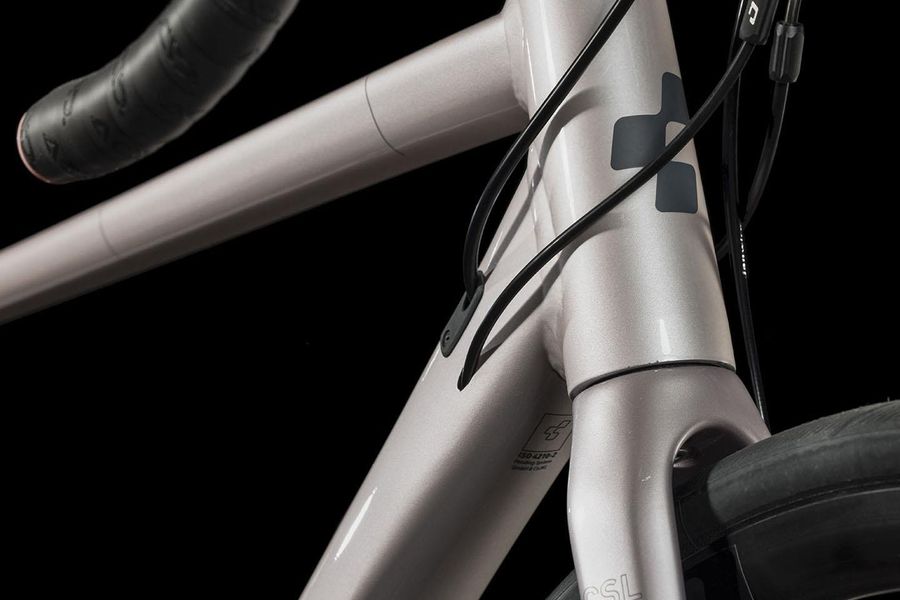

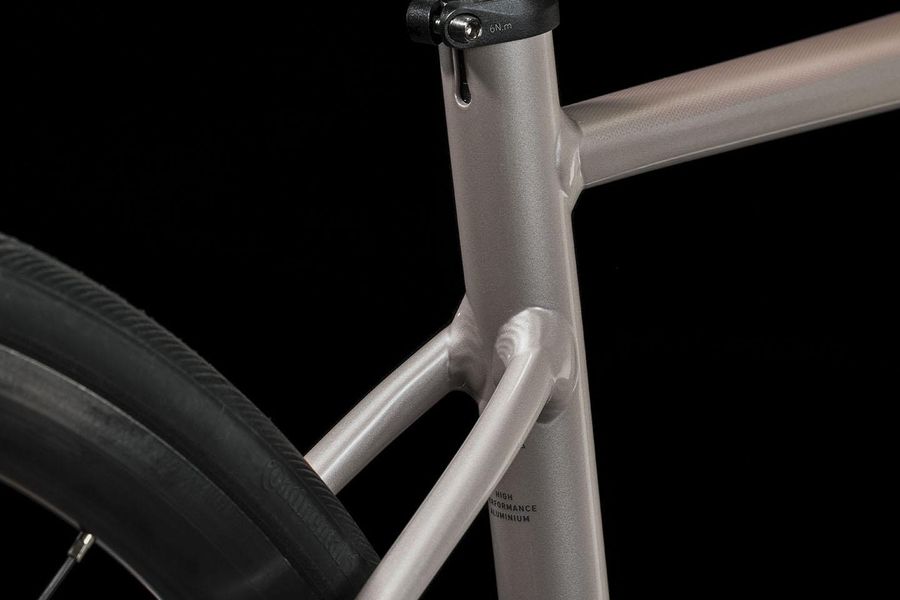

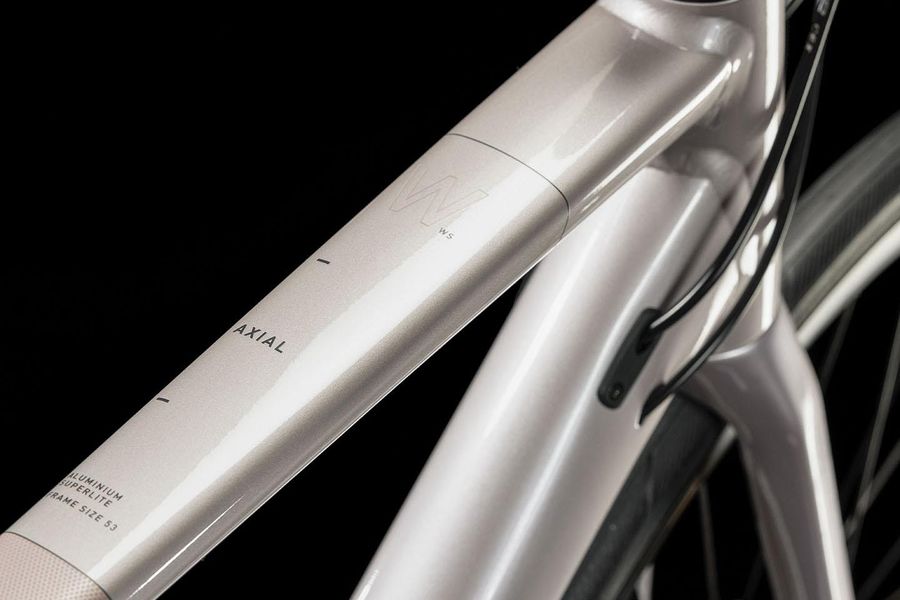

| Frame | Aluminium 6061 T6 Superlite, Road Comfort Geometry, Fender Option, QR Dropout |

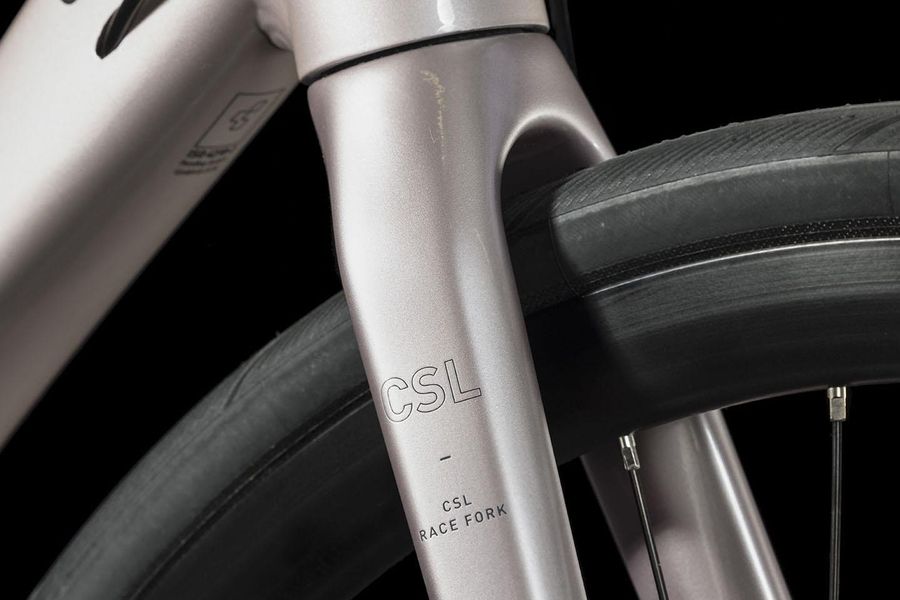

| Fork | CUBE CSL Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, QR |
| Headset | VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
| Frame type | Diamond |
| Drive | |
| Shift / brake unit | Shimano Claris ST-R2000 |
| Rear derailleur | Shimano Claris RD-R2000-GS, 8-Speed |
| Front derailleur | Shimano Claris FD-R2000-BM, 31.8mm |
| Crank | Shimano Claris FC-R2000, 50x34T, BB-RS500 |
| Cassette | Shimano CS-HG31, 11-34T |
| Chain | KMC Z8.3 |
| Brakes | |
| Brake | Tektro MD-C510, Flat Mount (160/160) |
| Wheels | |
| Rims | CUBE RA 1.9 Disc |
| Tires | Conti Ultra Sport 3, 28-622 |
| Wheel Size | 28'' |
| Front hub | Shimano HB-TX506, QR, 6-Bolt |
| Rear hub | Shimano HB-TX506, QR, 6-Bolt |
| Cockpit | |
| Handlebar | CUBE Compact Race Bar |
| Stem | CUBE Performance Stem SLX, 31.8mm |

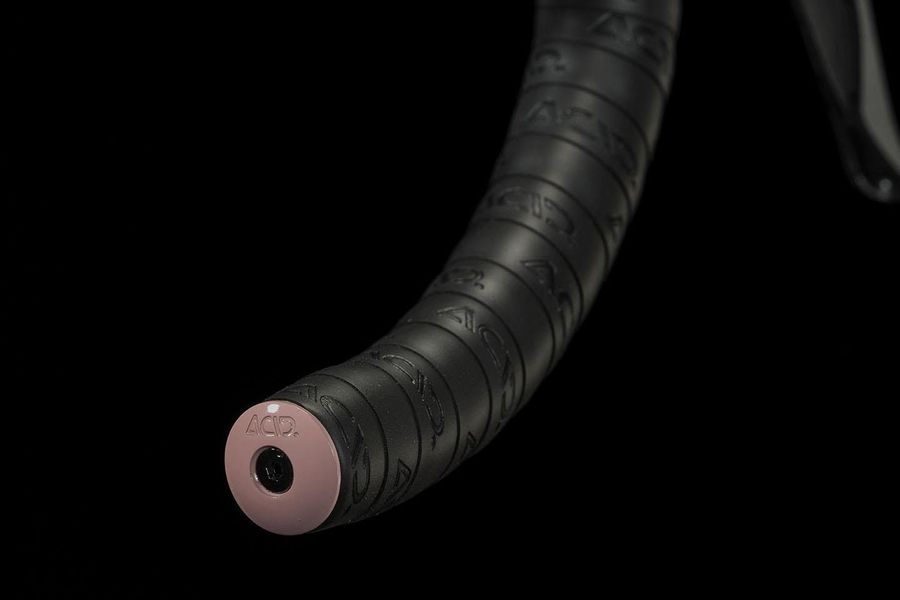

| Grips | ACID Bartape RD |
| Seat | |
| Saddle | Cube Natural Fit Venec Lite WS |
| Seatpost | CUBE Performance Post, 27.2mm |
| Saddle clamp | CUBE Screwlock, 31.8mm |
| Other | |
| Customization - only in store | |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
