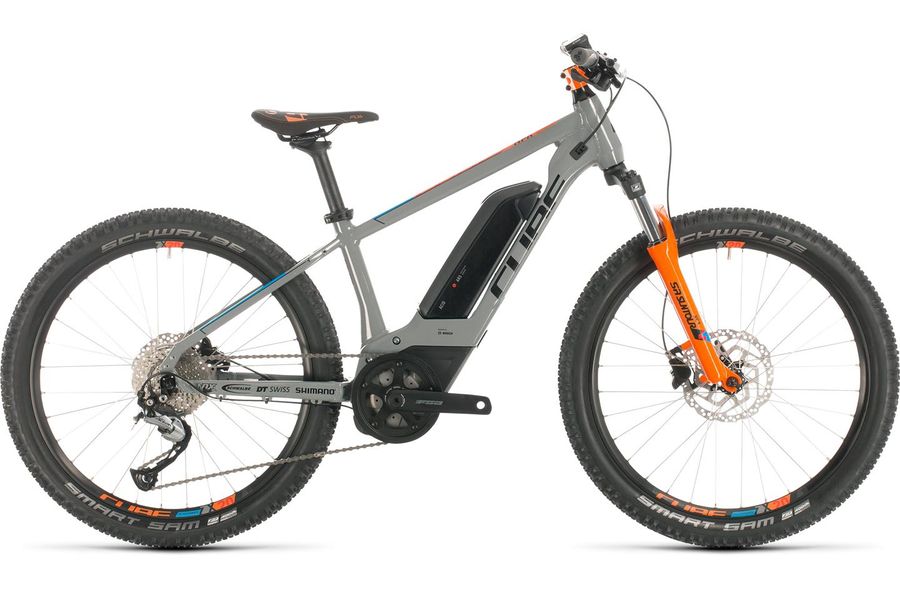

CUBE Acid 240 Hybrid Youth 400 (2020)
Can you think of any reason why only adults should have e-bike fun? No! a great electric mountain bike for tomorrow's professionals. From the Cube Acid 240 Hybrid Youth your junior will certainly not want to get off! For kids from 125 to 140cm.
Highlights
Frame
Aluminium Superlite
Fork
SR Suntour XCT JR (80mm)
Tires
24'' Schwalbe Smart Sam
Shifter
Shimano Acera/Altus (1x9)
Brakes
Shimano BR-MT200 (180/180)
Drive Unit
Bosch Perf. Gen3 (65 Nm) - PowerPack (400 Wh)
CUBE Acid 240 Hybrid Youth 400 actionteam 2020
Why should adults get to have all the fun? The Acid 240 Hybrid Youth brings the power and versatility of our renowned e-bike range within reach of the youngsters in your family, giving them an extra power boost so they can tackle longer rides and keep up with the grown-ups. Making use of the same technologies and design features as our full-size e-MTBs, it features a Bosch Active drive unit with Purion controller, and a 400Wh battery for long-lasting power. We won't bore you with all the details, but let's just say that fitting the Bosch drive system into a mountain bike frame suitable for kids wasn't as straightforward as our engineers have made it look. It's all designed with safe handling and our usual emphasis on durability in mind, so your kids can enjoy the ride and you can too, knowing that we've taken care of all the details. The Suntour XCT JR fork is designed specifically with younger, lighter riders in mind and helps smooth out the trail ahead, while Shimano's easy-shifting 9-speed transmission has the range your junior rider needs to make light work of any climb. Put the spark back in your family rides, and get your child an Acid 240 Hybrid Youth...
Details

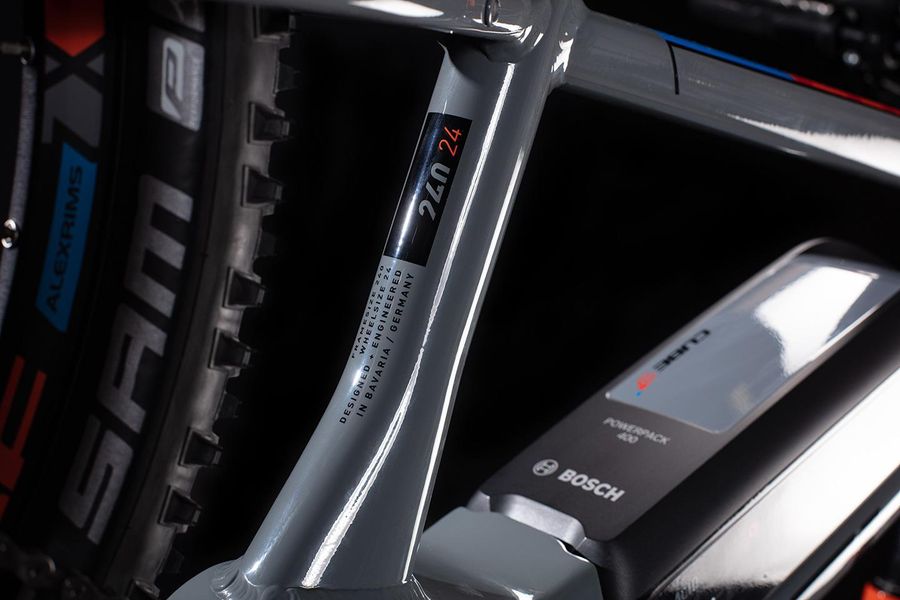

We're not going to bore you with all the details, but let's just say that fitting the Bosch drive system and battery into a mountain bike frame suitable for kids isn't as straightforward as our engineers have made it look. Long experience of working with this superb drive system has given them the knowhow to build an exceptionally neat aluminium frame around it, putting the drive unit in precisely the right position for the best handling and semi-integrating the battery into the down tube for a sleek, elegant look. There's a tough 30.9mm seat post, internal cable routing to keep gear shifting clean and precise without the need for fiddly maintenance, and we even included mounts to fit a CUBE kickstand. All that's left to do is for your junior rider to jump on, and show the adults how it's done.
- Recommended for kids between 125 and 140cm.
- Frame Geometry
More CUBE Kid Bikes: CUBE Kid
Additional Information
Manufacturer ID | 330050 |
---|---|
Bike category | Kids E-Bike |
Brand | Cube |
Colour | actionteam |
Price | Price in branch store might be lower. (info@rabe-bike.de / +4989 125 01 01 01) |
Weight | 19,2 kg |
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |
Fork | SR Suntour XCT JR, 80mm |
Wheel Size | 24'' |
Tires | Schwalbe Smart Sam, Active, 2.35 |
Rims | CUBE ZX20, 32H, Disc, Tubeless Ready |
Rear derailleur | Shimano RD-M3000-SGS, 9-Speed |
Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
Crank | FSA Metropolis, 38T, 152mm |
Cassette | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |
Front hub | Shimano HB-TX505, QR, Centerlock |
Rear hub | Shimano FH-TX505, QR, Centerlock |
Brake | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
E-Engine | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) Youth Edition (20km/h) |
Battery pack | Bosch PowerPack 400 |
Display | Bosch Purion |
Charger | Bosch 2A |
Handlebar | CUBE Rise Trail Bar, 680mm |
Stem | CUBE Performance Stem Pro, 31.8mm |
Headset | FSA No.10, Semi-Integrated |
Saddle | SDG 18 Fly JR |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle clamp | CUBE Varioclose, 34.9mm |
Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Pending System GmbH & Co. KG |
