Highlights
Frame
Aluminium Superlite
Fork
SR Suntour XCR32 LO-R Air (100mm)
Tires
Schwalbe Smart Sam (2.35)
Shifter
Shimano Deore (1x10)
Brakes
Magura MT Thirty (180/160)
Drive Unit
Bosch Active (40 Nm) - PowerTube (250Wh)
Cube Acid 240 Hybrid Rookie SL 400 trailmotion
Kids aren't daft, and there comes a time when they'll want a bike as good as mum and dad's. With the Acid 240 Hybrid Rookie SL, now they can. It features the same Bosch drive unit and battery as many of our adult hybrids, so your young rider has the power boost they need to ride further, faster and longer - good news for family outings. The Suntour air fork is easily adjustable to suit smaller, lighter riders - we even used a thinner handlebar and grips for better comfort and control with small hands. Shimano's 10-speed gears are super reliable and offer a great range, and powerful hydraulic disc brakes safely rein in any excess enthusiasm. It's good to go.
Frame

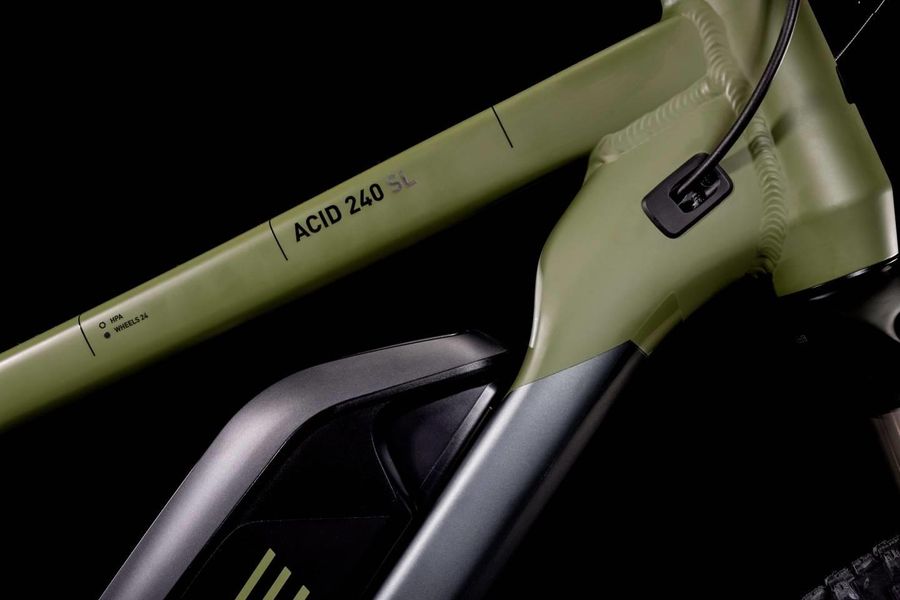

It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as our adult hybrid mtbs, we've built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and we even included mounts for a CUBE kickstand.
Additional Information
| General | |
| Manufacturer ID | 530060 |
|---|---|
| Bike category | Kids E-Bike |
| Colour | trailmotion |
| Weight | 18,7 kg |
| Frame | |
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |
| Fork | SR Suntour XCR LO Air JR, 80mm |
| Headset | CUBE FPH863, Semi-Integrated |
| Frame type | Diamond |
| Drive | |
| Shifters | Shimano Deore SL-M4100, Rapidfire-Plus |
| Rear derailleur | Shimano Deore RD-M4120-SGS, 10-Speed |
| Crank | ACID E-Crank, 160mm, 38T |
| Cassette | Shimano Deore CS-M4100, 11-42T |
| Chain | KMC X10 |
| Ebike | |

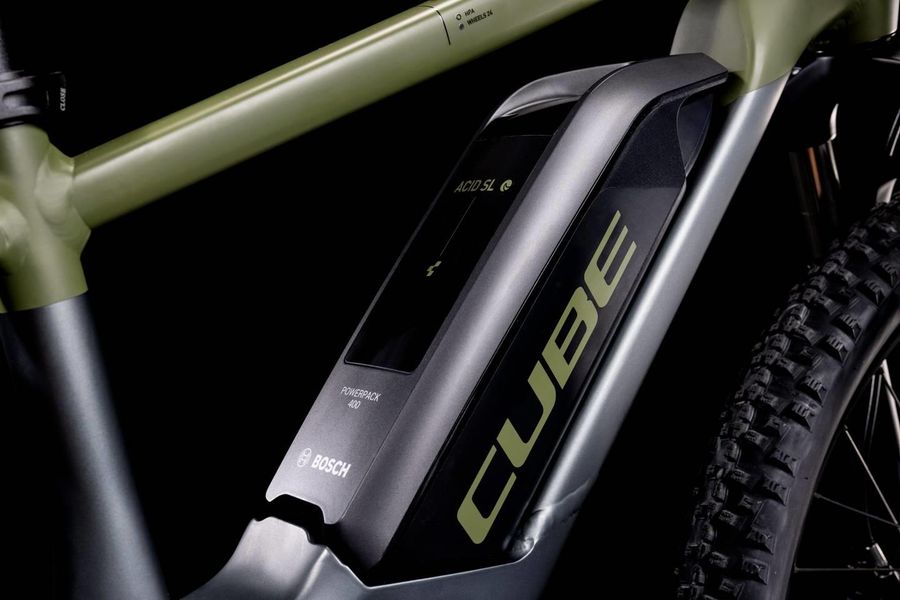

| Battery pack | Bosch PowerPack 400 |
| E-Engine | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) |
| Display | Bosch Purion |
| Charger | Bosch 2A |
| Brakes | |
| Brake | Magura MT Thirty, Front 2-Piston/Rear 2-Piston, Hydr. Disc Brake (180/160) |
| Wheels | |
| Rims | CUBE ZX20, 32H, Disc |
| Tires | Schwalbe Smart Sam, Active, 2.35 |
| Wheel Size | 24'' |
| Cockpit | |
| Handlebar | CUBE Rise Trail Bar Kids, 590mm, 25.4 |
| Stem | CUBE Performance Stem Kids, 25.4mm |
| Grips | Natural Fit Kids Grip, Ø 19mm |
| Seat | |
| Saddle | CUBE Kid |
| Seatpost | CUBE Performance Post, 30.9mm |
| Saddle clamp | CUBE Varioclose, 34.9mm |
| Other | |
| Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
| Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | |
| Manufacturer Information | Pending System GmbH & Co. KG |
