Highlights
Frame
Aluminium Superlite
Fork
SR Suntour XCR32 LO-R Air (100mm)
Tires
Schwalbe Smart Sam (2.35)
Shifter
Shimano (1x9)
Brakes
Shimano BR-MT200 (180/160)
Drive Unit
Bosch Active (40 Nm) - PowerTube (250Wh)
Cube Acid 240 Hybrid Rookie Pro 400 actionteam
The Acid 240 Hybrid Rookie gives younger riders an extra power boost, so they can tackle longer family rides and keep up with the grown-ups. Making use of the same technologies as our full-size e-mtbs, it features a Bosch Active drive unit coupled to Shimano's easy-to-use 9-speed gears. Suntour's XCT JR fork is designed specifically with younger, lighter riders in mind and helps smooth out the trail ahead. A kid-friendly cockpit and saddle make for a super-comfy ride position. And there's a set of powerful hydraulic disc brakes, for safe stopping. Put the spark back in your family rides...
Frame
It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as our adult hybrid mtbs, we've built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and we even included mounts for a CUBE kickstand.
Additional Information
Manufacturer ID | 530050 |
---|---|
Bike category | Kids E-Bike |
Brand | Cube |
Colour | actionteam |
Customization - only in store | Anpassen der optimalen Sitzposition entsprechend deiner Anatomie |
Configuration - available in our stores | Individuelles Fahrwerks Setup durch geschulte Mitarbeiter |
Wheel Size | 24'' |
Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |
Fork | SR Suntour XCT JR, 80mm |
Headset | CUBE FPH863, Semi-Integrated |
Frame type | Diamond |
Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
Rear derailleur | Shimano RD-M3100-SGS, 9-Speed |
Crank | ACID E-Crank, 160mm, 38T |
Cassette | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |

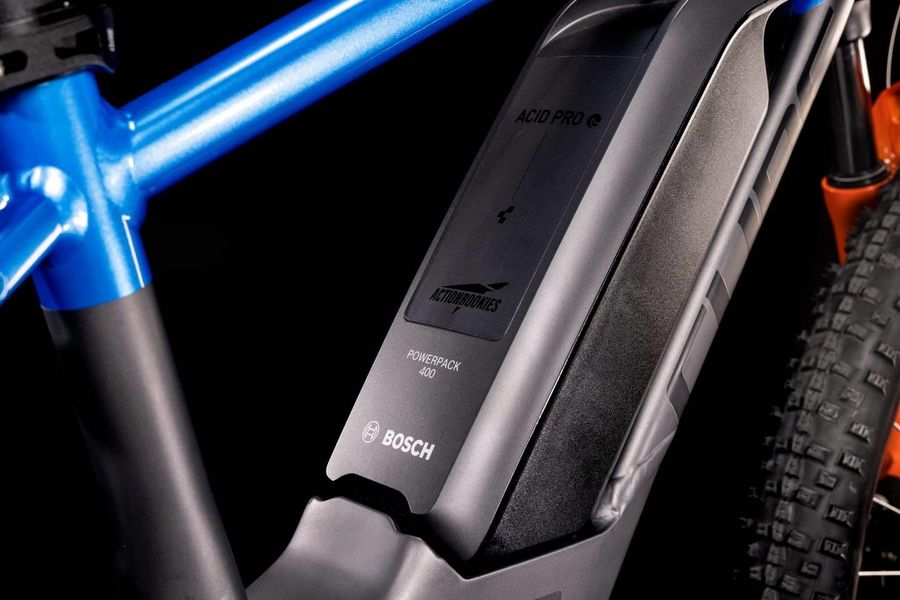

Battery pack | Bosch PowerPack 400 |
E-Engine | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) |

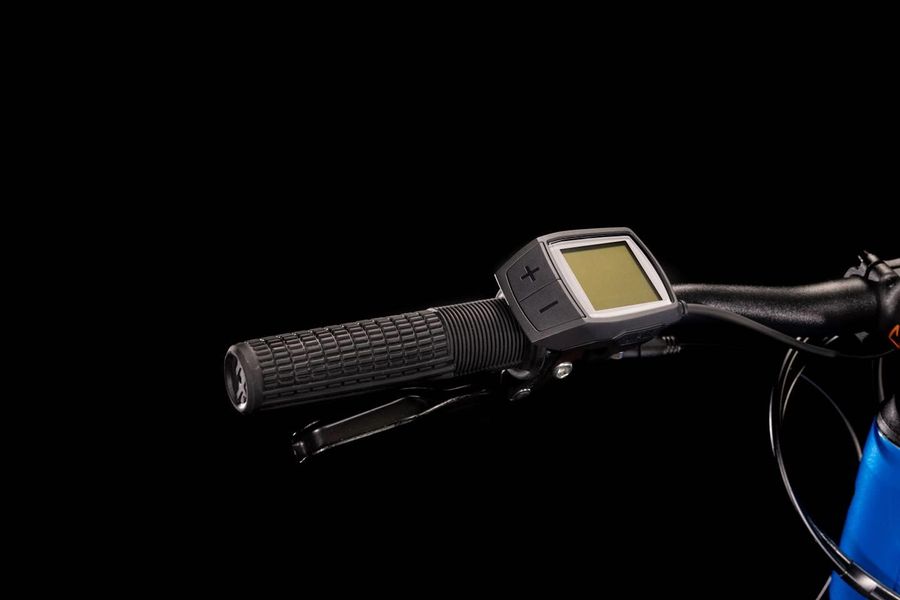

Display | Bosch Purion |
Charger | Bosch 2A |
Brake | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
Rims | CUBE ZX20, 32H, Disc |
Tires | Schwalbe Smart Sam, Active, 2.35 |
Front hub | Shimano HB-TX505, QR, Centerlock |
Rear hub | Shimano FH-TX505, QR, Centerlock |
Handlebar | CUBE Rise Trail Bar Kids, 590mm, 25.4 |
Stem | CUBE Performance Stem Kids, 25.4mm |
Grips | Natural Fit Kids Grip, Ø 19mm |
Saddle | CUBE Kid |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle clamp | CUBE Varioclose, 34.9mm |
Weight | 19,1 kg |
Manufacturer Information | Pending System GmbH & Co. KG |
