Highlights
Frame
Aluminium Superlite
Fork
SR Suntour XCT JR (80mm)
Tires
Schwalbe Smart Sam
Shifter
Shimano Alivio (1x9)
Brakes
Shimano BR-MT200 (180/160)
Drive Unit
Bosch Active Gen3 (40 Nm) - PowerPack (400 Wh)

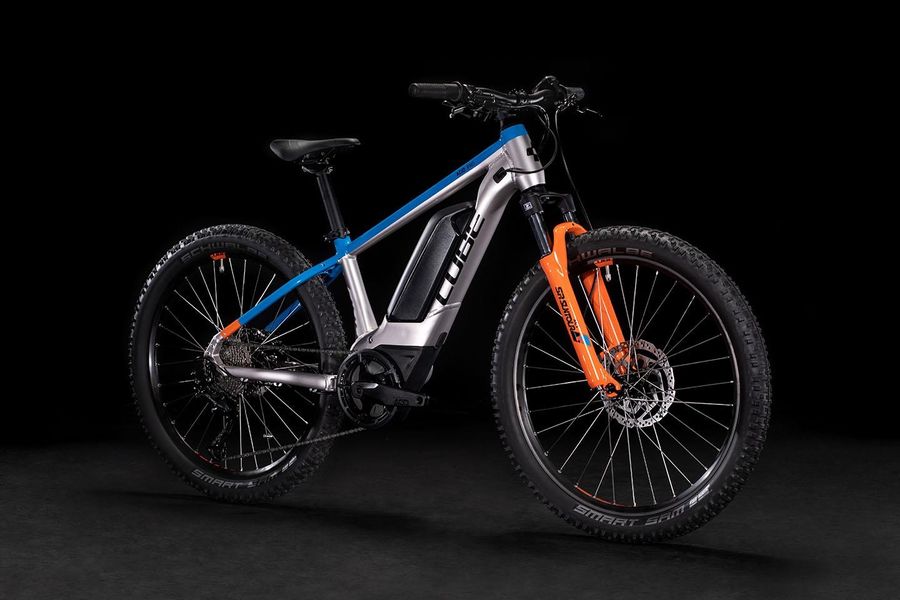

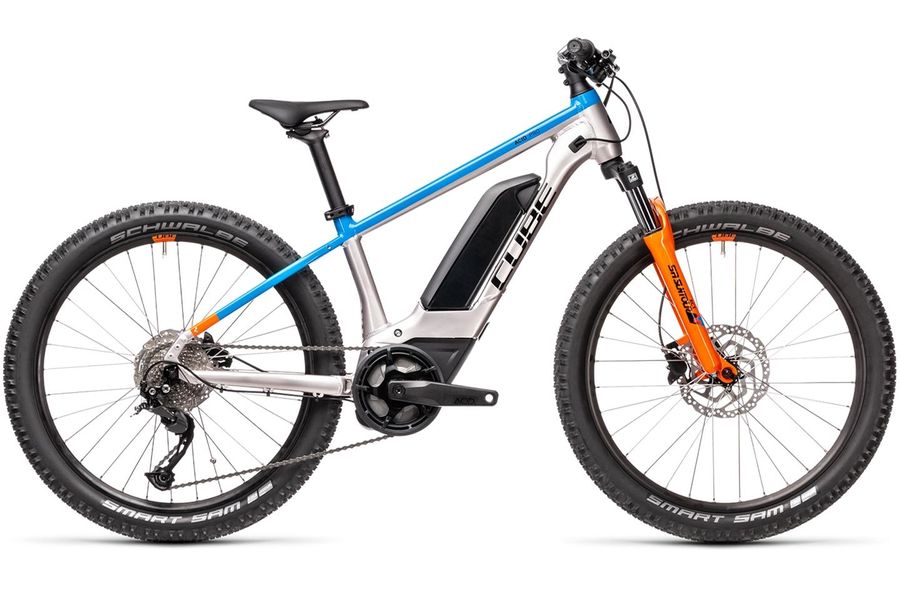

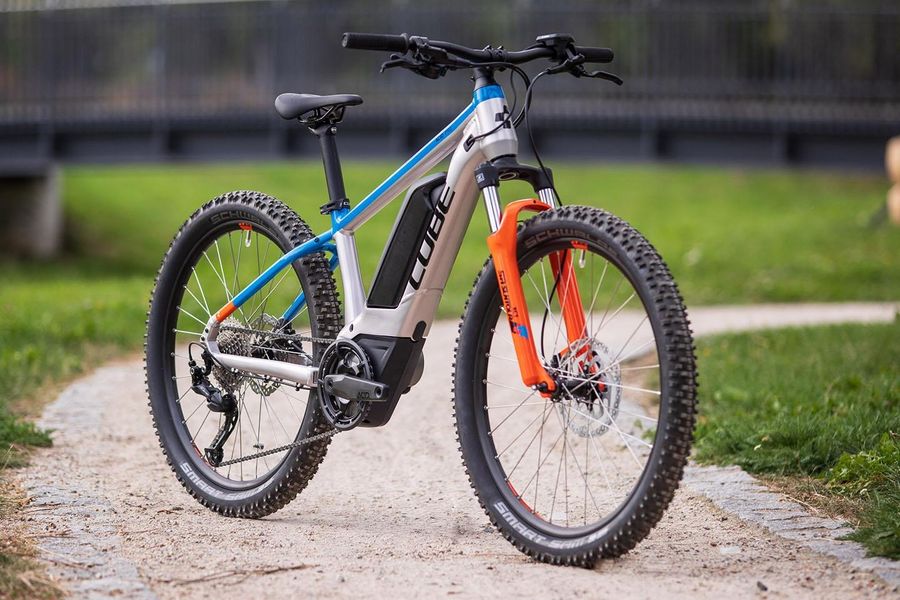

CUBE Acid 240 Hybrid Rookie Pro 400
The Acid 240 Hybrid Rookie gives younger riders an extra power boost, so they can tackle longer family rides and keep up with the grown-ups. Making use of the same technologies as our full-size e-mtbs, it features a Bosch Active drive unit coupled to Shimano's easy-to-use 9-speed gears. Suntour's XCT JR fork is designed specifically with younger, lighter riders in mind and helps smooth out the trail ahead. A kid-friendly cockpit and saddle make for a super-comfy ride position. And there's a set of powerful hydraulic disc brakes, for safe stopping. Put the spark back in your family rides...
Frame

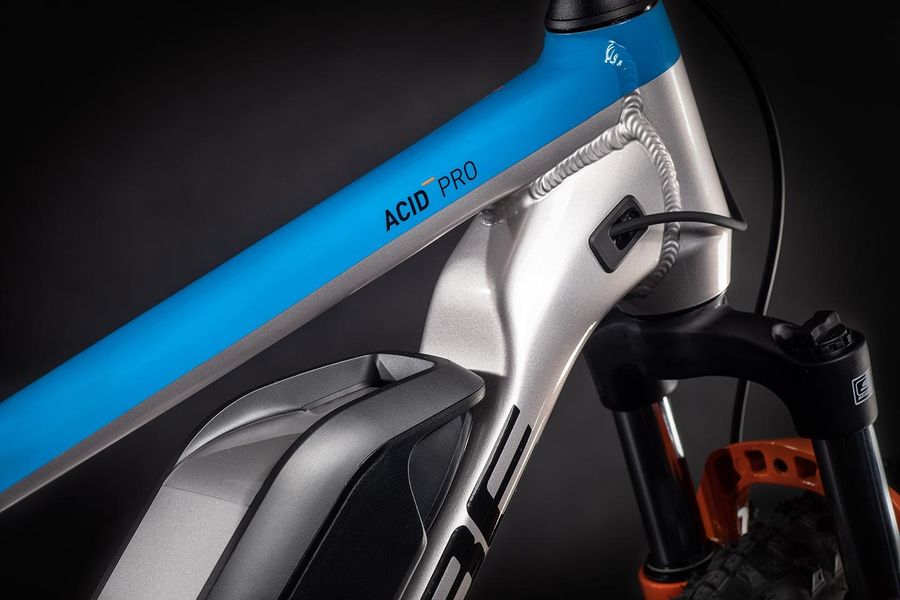

It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as the adult hybrid mtbs, CUBE have built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and they even included mounts for a CUBE kickstand.
Additional Information
General | |
Manufacturer ID | 430050 |
---|---|
Bike category | Kids E-Bike |
Fahrraddetails | |
Colour | actionteam |
Wheel Size | 24'' |
Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Frame | |
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |

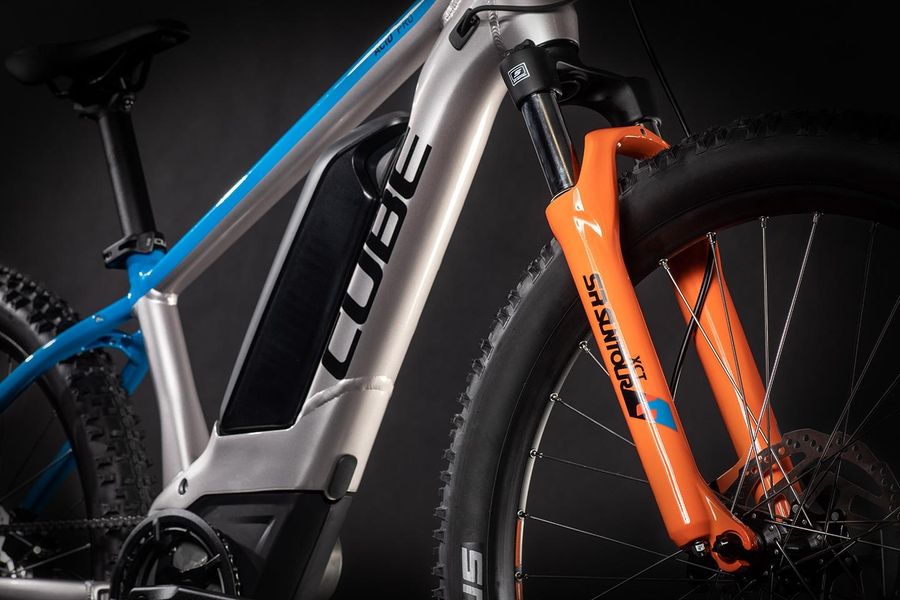

Fork | SR Suntour XCT JR, 80mm |
Headset | CUBE FPH863, Semi-Integrated |
Frame type | Diamond |
Drive | |
Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
Rear derailleur | Shimano RD-M3100-SGS, 9-Speed |
Crank | ACID E-Crank, 38T, 160mm |
Cassette | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |
Ebike | |

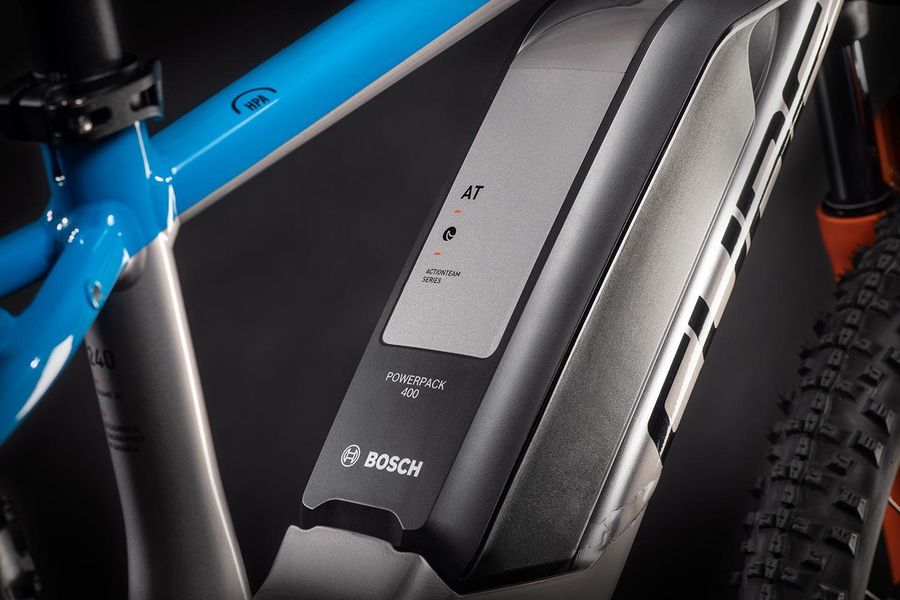

Battery pack | Bosch PowerPack 400 |
E-Engine | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) Youth Edition (20km/h) |
Display | Bosch Purion |
Charger | Bosch 2A |
Brakes | |
Brake | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
Wheels | |
Rims | CUBE ZX20, 32H, Disc, Tubeless Ready |
Tires | Schwalbe Smart Sam, Active, 2.35 |
Front hub | Shimano HB-TX505, QR, Centerlock |
Rear hub | Shimano FH-TX505, QR, Centerlock |
Cockpit | |

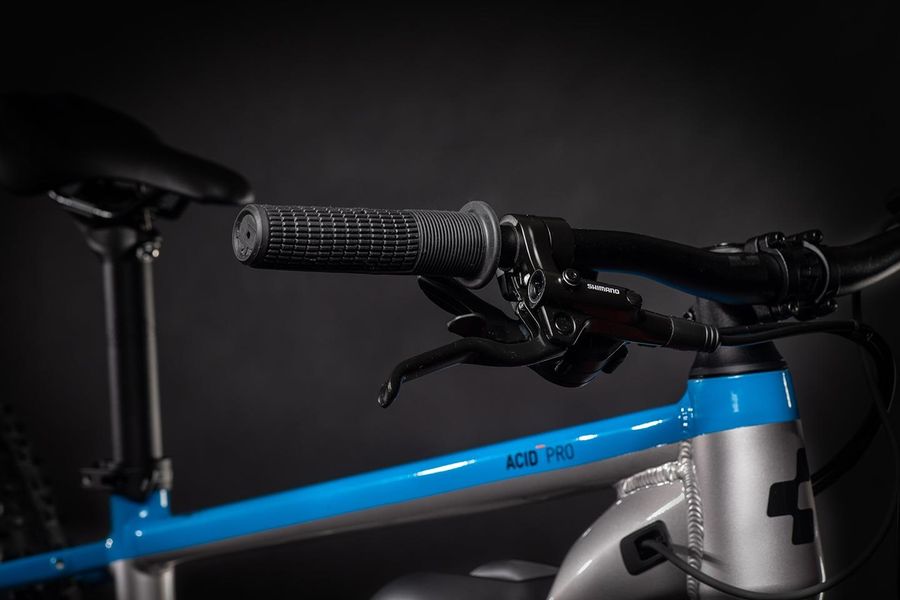

Handlebar | AR CUBE Aluminium, 580mm, 25.4 |
Stem | AR CUBE Aluminium Lite |
Seat | |
Saddle | CUBE Kid |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle clamp | CUBE Varioclose, 34.9mm |
Other | |
Weight | 19,1 kg |
Manufacturer Information | |
Manufacturer Information | Pending System GmbH & Co. KG |
