Highlights
Frame
Aluminium Superlite
Fork
SR Suntour XCT JR (80 mm)
Shifter
Shimano RD-M3100-SGS (1x9)
Brakes
Shimano BR-MT200 (180/160)
Drive Unit
Bosch Active Plus (40 Nm) - PowerPack (400 Wh)

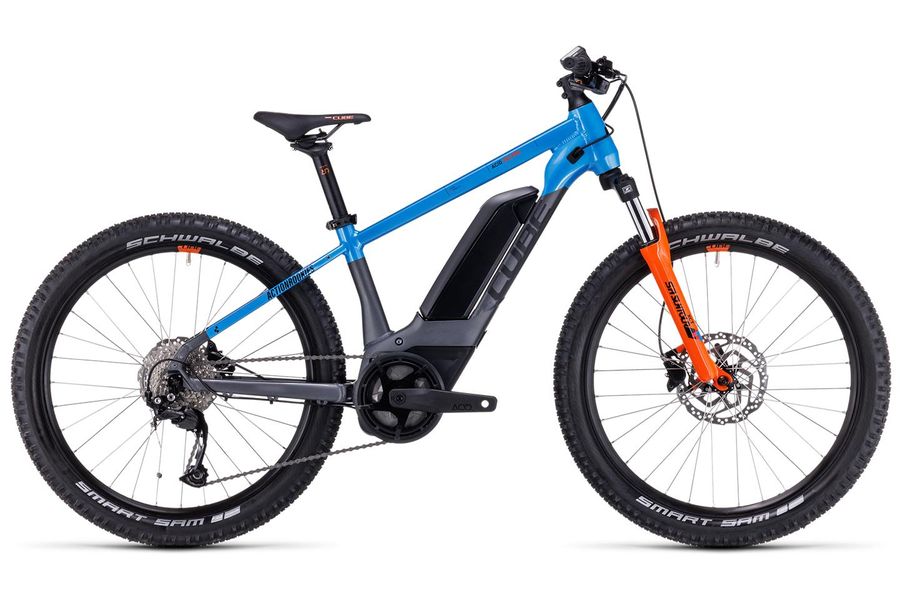

CUBE Acid 240 Hybrid Rookie Pro 400
The Acid 240 Hybrid Rookie gives younger riders an extra power boost, so they can tackle longer family rides and keep up with the grown-ups. Making use of the same technologies as our full-size e-mtbs, it features a Bosch Active drive unit coupled to Shimano's easy-to-use 9-speed gears. Suntour's XCT JR fork is designed specifically with younger, lighter riders in mind and helps smooth out the trail ahead. A kid-friendly cockpit and saddle make for a super-comfy ride position. And there's a set of powerful hydraulic disc brakes, for safe stopping. Put the spark back in your family rides...

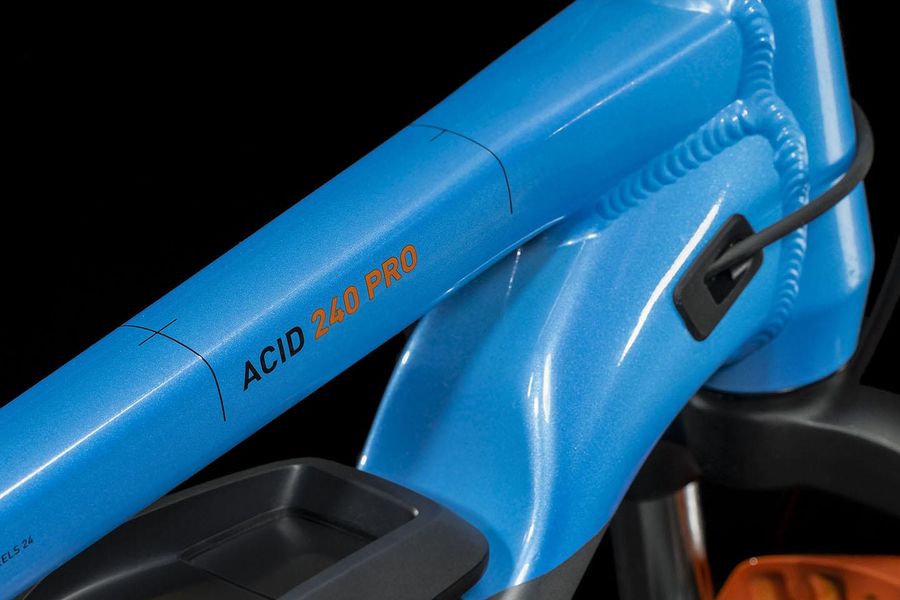

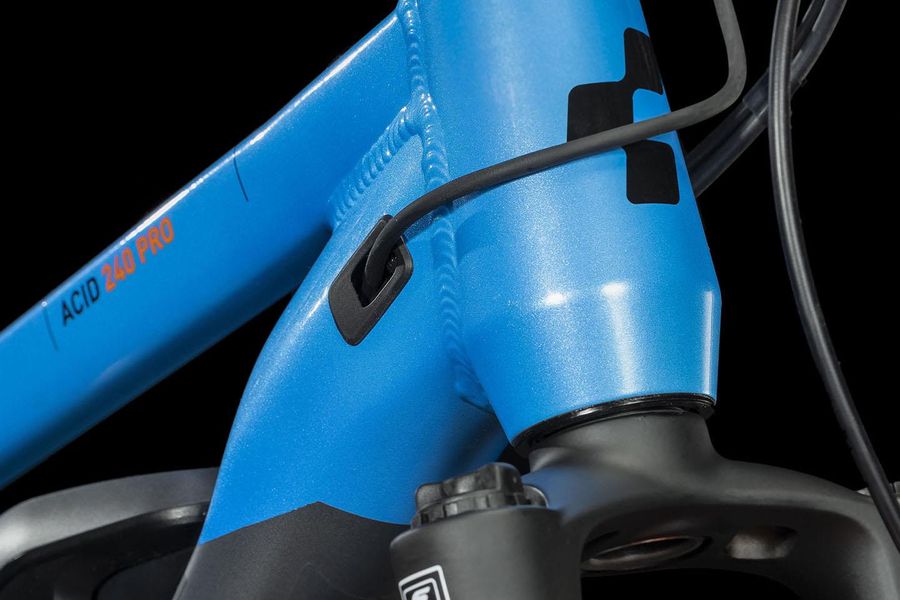

Frame Details
It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as our adult hybrid mtbs, we've built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and we even included mounts for a CUBE kickstand.
Additional Information
| Bike category | Kids E-Bike |
|---|---|
| Brand | Cube |
| Model year | 2023, 2024 |
| Colour | actionteam |
| Weight | 19,2 kg |
| Customization - only in store | |
| Configuration - available in our stores | |
| Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |
| Frame type | Diamond |
| Fork | SR Suntour XCT JR, 80mm |
| Wheel Size | 24'' |
| Tires | Schwalbe Smart Sam, Active, 2.35 |
| Rims | CUBE ZX20, 32H, Disc |
| Rear derailleur | Shimano RD-M3100-SGS, 9-Speed |
| Shifters | Shimano SL-M2010-9R, Rapidfire-Plus |
| Crank | ACID E-Crank, 38T, 160mm |
| Cassette | Shimano CS-HG201, 11-36T |
| Chain | KMC X9 |
| Front hub | Shimano HB-TX505, QR, Centerlock |
| Rear hub | Shimano FH-TX505, QR, Centerlock |
| Brake | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| E-Engine | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) |
| Battery pack | Bosch PowerPack 400 |
| Display | Bosch Purion |
| Charger | Bosch 2A |
| Handlebar | CUBE Rise Trail Bar Kids, 590mm, 25.4 |
| Grips | Natural Fit Kids Grip, Ø 19mm |
| Stem | CUBE Performance Stem Kids, 25.4mm |
| Headset | CUBE FPH863, Semi-Integrated |

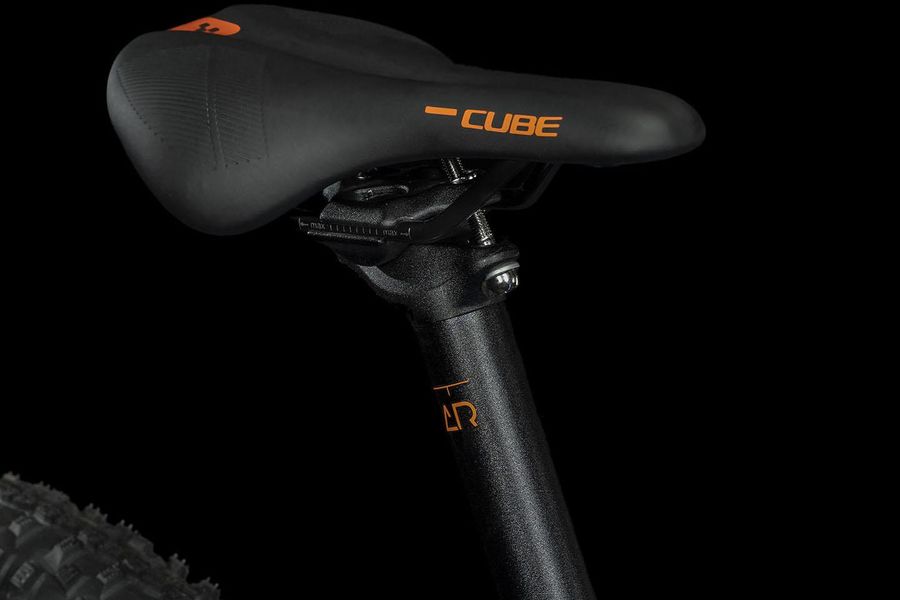

| Saddle | CUBE Kid |
| Seatpost | CUBE Performance Post, 30.9mm |
| Saddle clamp | CUBE Varioclose, 34.9mm |
| Max. total weight | 90 kg |
| Annotation | Illustrations and specifications may vary. The manufacturer reserves the right to replace certain components with components of similar quality. |
| Manufacturer Information | Pending System GmbH & Co. KG |
