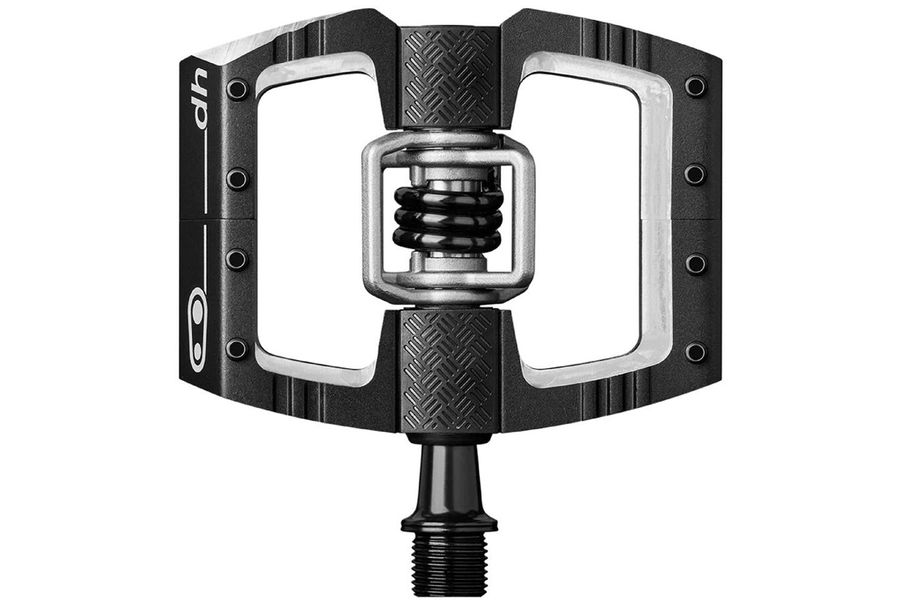

Crankbrothers Mallet DH

Crankbrothers Mallet DH

Designed specifically to meet the demands of downhill and freeride disciplines, the Crankbrothers Mallet DH pedals have made a name for themselves with their robust construction and reliable performance.

The special features of the Crankbrothers Mallet DH pedals include their unique design, which offers a large platform with six adjustable pins on each side for optimal grip. The platform has a concave shape that provides secure grip for aggressive riding and allows you to stay in control even in difficult conditions. The adjustable pins can be set to individual preferences to ensure a custom fit for maximum comfort and control.

Features

• Popular with downhill, enduro and freeride mountain bikers
• Concave platform with adjustable pins for optimal grip
• Durable construction with forged chromoly steel spindle and aluminium body
• Mud-repellent design prevents the accumulation of dirt and debris
• Reliable performance in all weather conditions
• Concave platform for secure grip
• 8 adjustable pins per side for secure grip
• Ribbed body for better traction when unsecured
• Bevelled edges to reduce stone chipping
• 57 mm Q-factor for stability at high speed
• 4-sided entry/excellent mud resistance
• Adjustable float and release angle
• High quality bearings and double sealing system

Technical data

• Housing material: Aluminium 6061-T6
• Housing dimensions (L x W): 100mm x 78mm
• Blade material: 17-4PH stainless steel
• Shaft length: 57mm
• Adjustable pins: 8 per side
• Inner bearing type: Igus LL plain bearing
• Outboard bearing type: Enduro MAX cartridge bearing
• End cap: Hex alloy
• Axle material: Forged SCM 435 chromoly steel
• Spring material: 300 series stainless steel
• Max. Rider weight: No restriction
• Weight: 479g per pair
• Cleats supplied: Type 15° / 20° Standard Release, 6° Float

Note on cleats: Third-party cleats are not approved for use with Crankbrothers pedal systems. The use of cleats from other manufacturers can shorten the life of the pedals and will void the pedal warranty.
