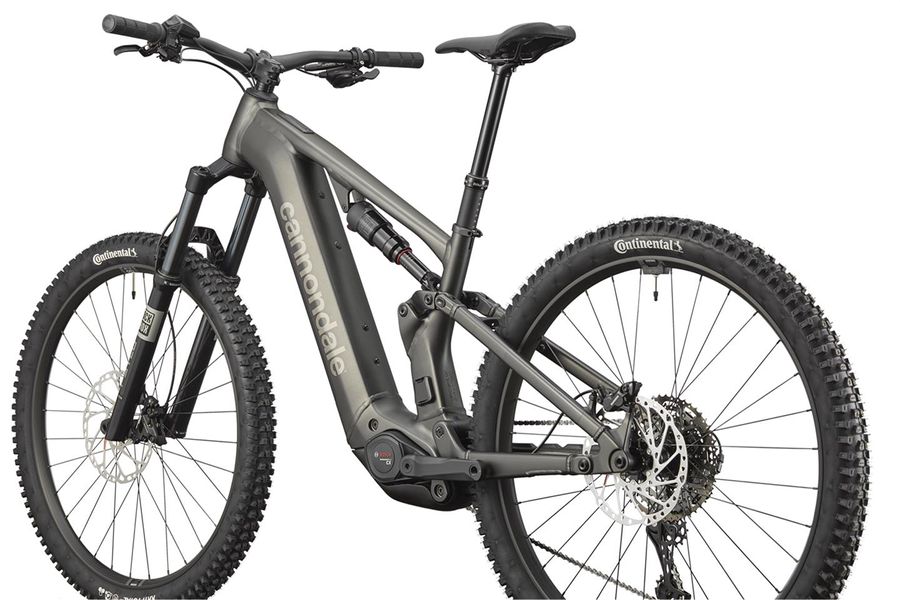

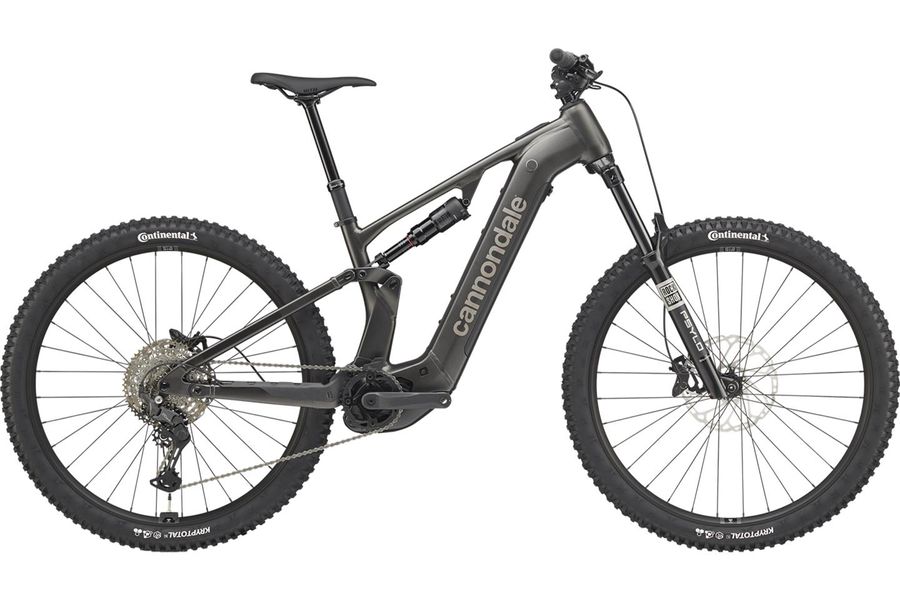

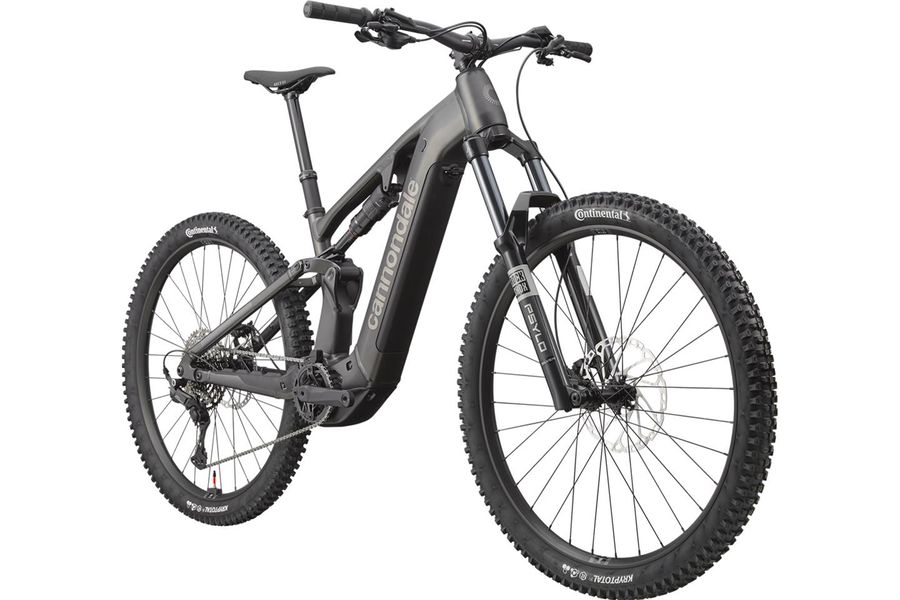

Cannondale Moterra 3
Highlights
Frame
Aluminium
Fork
RockShox Psylo Silver RC (160mm)
Shifter
Shimano CUES (1x11)
Brakes
Shimano MT520 (203/203)
Rear Shock
RockShox Deluxe Select
Drive Unit
Bosch Perf. CX (100Nm) / PowerTube (800Wh)
Cannondale Moterra 3 – Ready to Send It
The Moterra 3 takes trail adventures to the next level: robust, agile, and built to handle anything. Its lightweight yet durable SmartForm C1 aluminum frame with 150 mm rear and 160 mm front travel, combined with Proportional Response suspension, delivers perfect balance – stable on descents, efficient on climbs, and lively across all terrain.

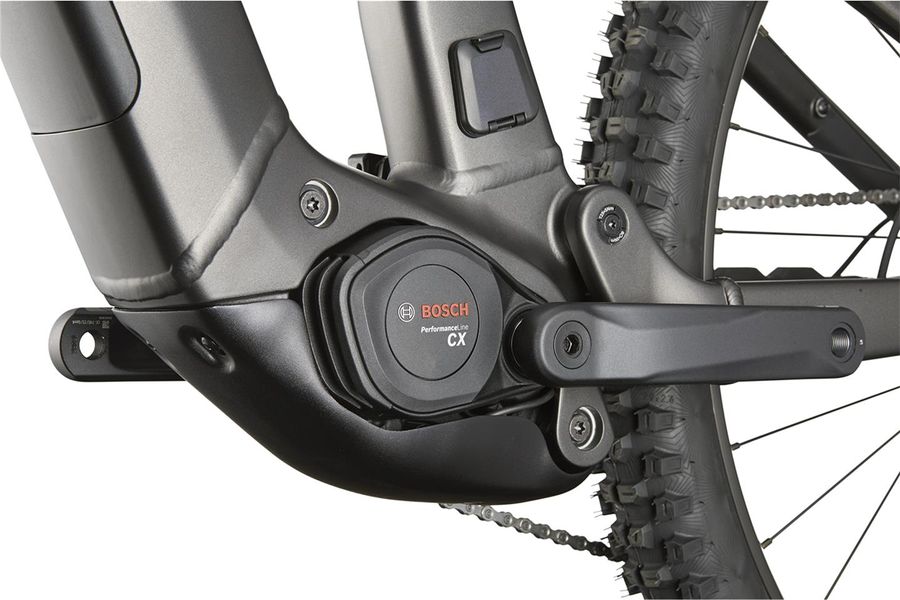

Powered by the Bosch Performance Line CX motor with up to 85 Nm of torque and a massive 800 Wh PowerTube battery, this bike provides endless endurance and smooth, natural pedal assistance, even on the steepest climbs.
RockShox suspension components – the Psylo Silver RC fork and Deluxe Select shock – ensure precise handling, control, and comfort on demanding trails. Shimano’s CUES U6000 11-speed drivetrain guarantees crisp, reliable shifting, while powerful Shimano MT520 4-piston brakes with oversized 203 mm rotors deliver confident stopping power.
Strong WTB ST i30 wheels paired with Shimano hubs and grippy Continental Kryptotal tires complete the package, offering maximum traction, durability, and performance.
Highlights
-
SmartForm C1 alloy frame with Proportional Response suspension for optimized performance in every frame size
-
Bosch Performance Line CX motor with 800 Wh PowerTube battery – powerful support and long range
-
RockShox Psylo Silver RC 160 mm fork & Deluxe Select shock for responsive trail handling
-

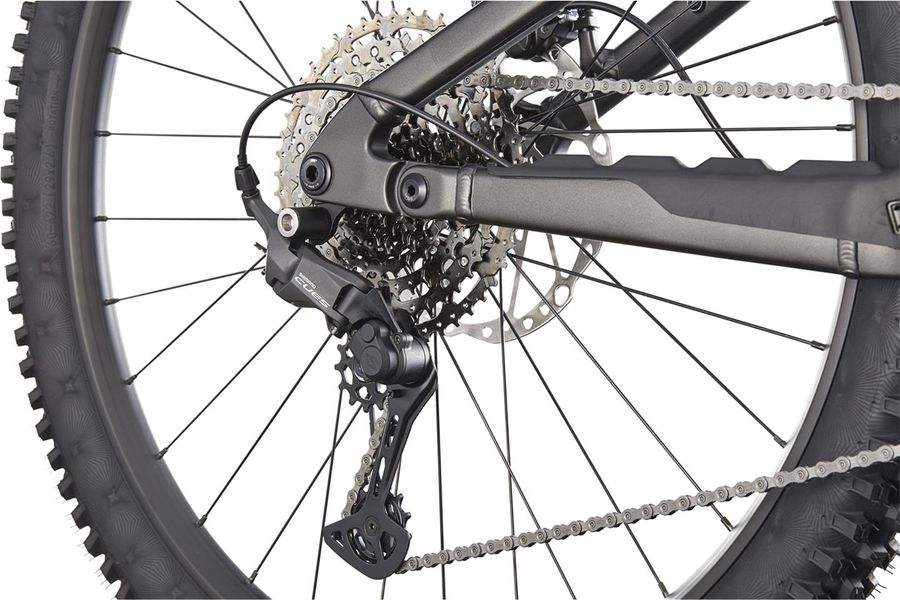

Shimano CUES U6000 11-speed drivetrain for smooth and precise gear shifts
-
Shimano MT520 4-piston brakes with 203 mm rotors for strong, controllable braking power
-
WTB ST i30 wheels and Continental Kryptotal tires for grip and reliability
Additional Information
Bike category | E-MTB Full Suspension |
---|---|
Brand | Cannondale |
Model year | 2025, 2026 |
Colour | Obsidian |
Customization - only in store | |
Configuration - available in our stores | |
Wheel Size | 29'' |
Annotation | The illustration may differ. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Frame | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
Fork | RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset |
Rear Shocks | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |
Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
Frame type | Fully |
Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
Rear derailleur | Shimano CUES U6000, LinkGlide |
Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
Cassette | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
Chain | Shimano LG500, LinkGlide, 11-speed |
Battery pack | Bosch PowerTube, 800Wh |
E-Engine | Bosch Performance Line CX 85Nm (BDU38) bis zu 100 Nm per Bosch App selbst freischaltbar |
Display | Bosch Purion 200 |
Charger | Bosch 4A |
Brake | Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors |
Brake lever | Shimano MT501 hydraulic disc |
Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless ready |
Tires | (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable |
Front hub | Shimano TC500, 15x110mm thru-axle |
Rear hub | Shimano TC500, 12x148mm thru-axle, centerlock |
Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
Grips | Cannondale TaperRidge |
Saddle | WTB Silverado Medium |
Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
Manufacturer Information | Cycling Sports Group Europe B.V. |
