Bosch SmartphoneGrip

Bosch SmartPhone Grip BSP3200

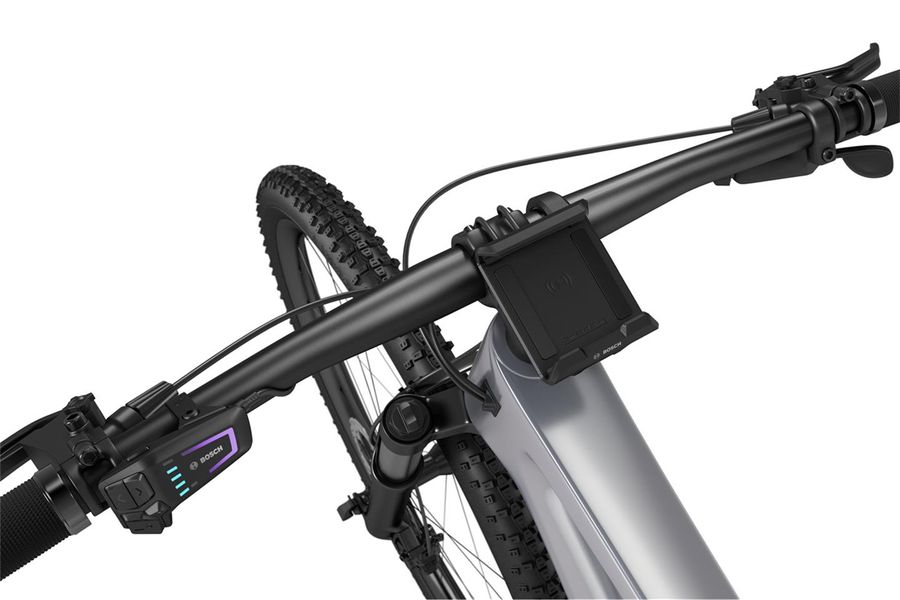

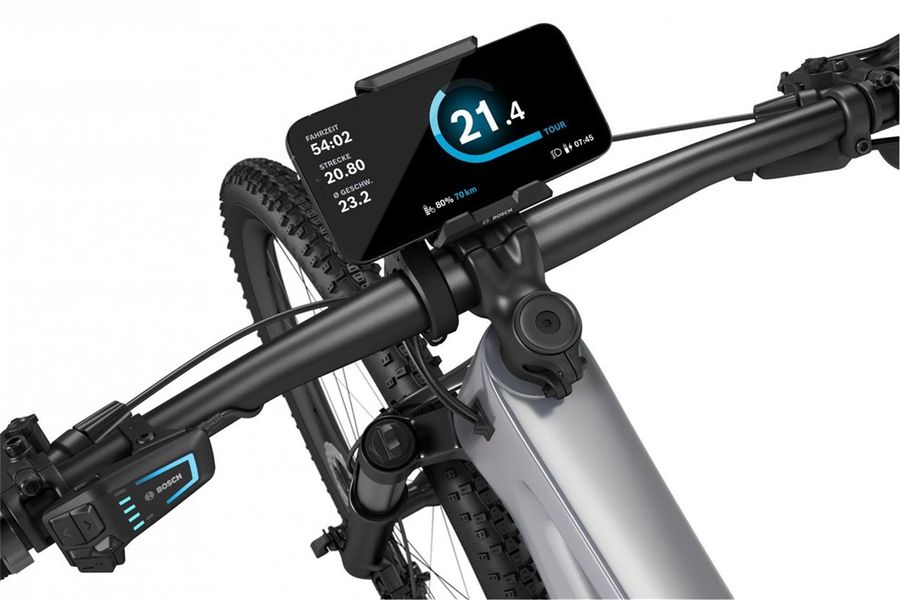

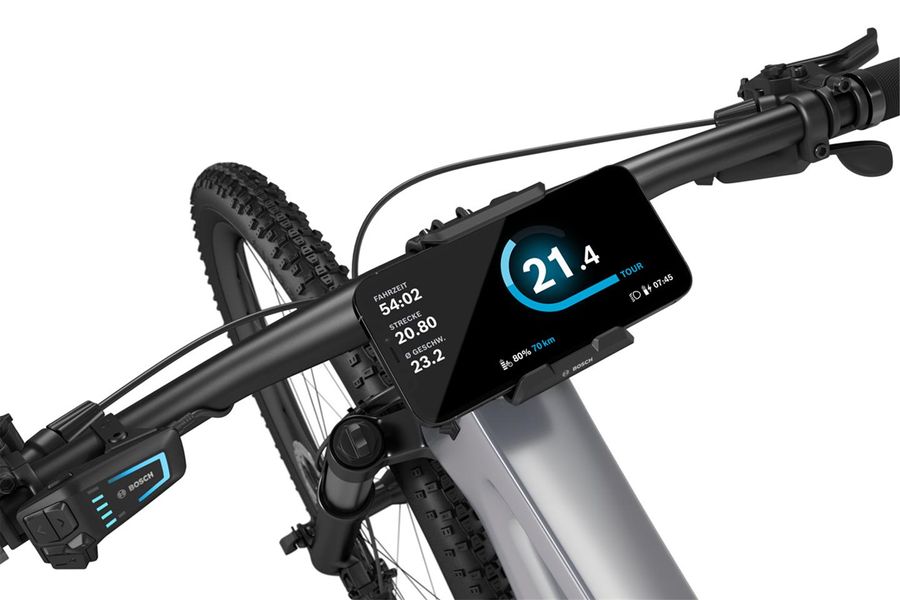

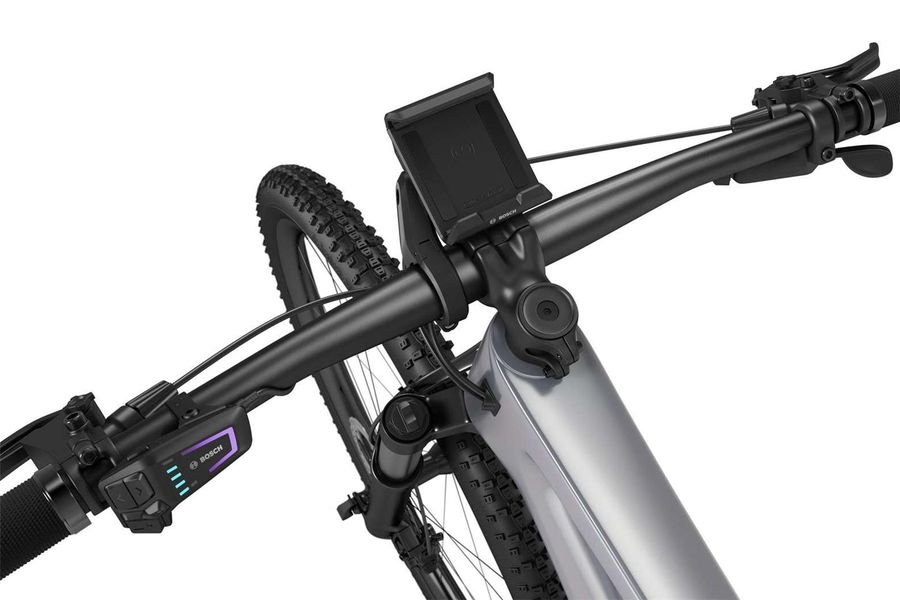

With the SmartphoneGrip mounted on the handlebar, your smartphone becomes a horizontal eBike display: while your smartphone is charged wirelessly, the eBike Flow App reliably guides you to your destination and shows all important riding data. At the same time, the SmartphoneGrip keeps your smartphone securely mounted on the handlebar – whether on paved roads or compacted paths. The app can be operated safely and conveniently via the LED Remote, Mini Remote or Purion 200 without taking your hands off the handlebar.

The SmartphoneGrip securely holds your smartphone on the handlebar – both on paved roads and compacted paths. At the same time, your smartphone is charged while riding, either wirelessly or via cable. Thanks to the identical interface, the SmartphoneGrip Vertical can also be flexibly swapped with a Kiox 300/500 display.

The mechanical locking mechanism ensures a secure hold and easy smartphone insertion. Thanks to direct integration into the Bosch Smart System, the cockpit remains clean and functional.

The SmartphoneGrip holds your smartphone while the eBike Flow App provides all important information:

• Navigation data
• Speed
• Battery charge level
• Remaining range

Attention: Charging cable and display mount are not included in the scope of delivery.

Details

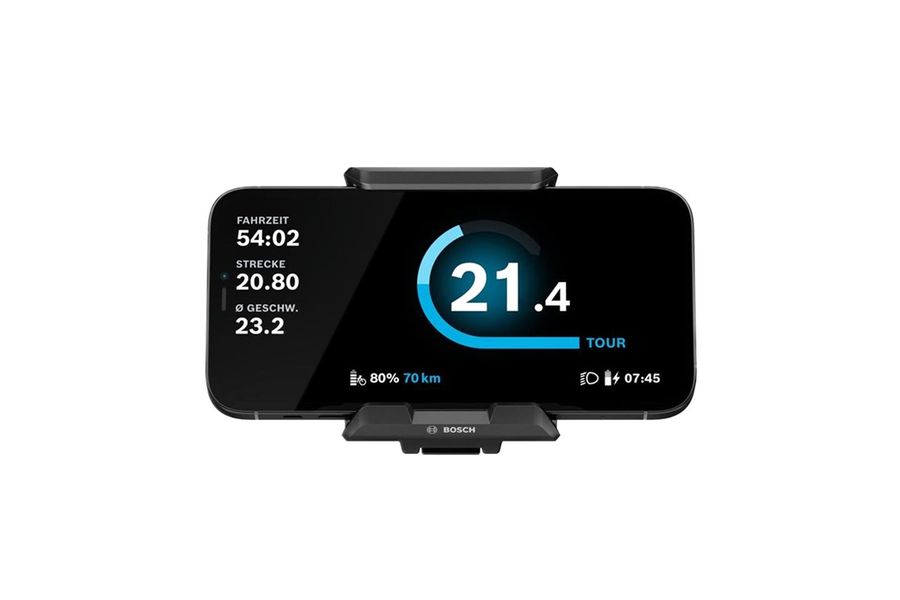

• Landscape mode: Smartphone is used as a horizontal eBike display
• Operation: Control of the eBike Flow App via LED Remote, Mini Remote or Purion 200
• Secure hold: Firm mounting even on uneven surfaces
• Charging function: Smartphone charges wirelessly or via cable while riding
• Flexibility: Can be exchanged with Kiox 300/500 via the identical interface
• Integration: Clean integration into the Bosch Smart System cockpit
• Locking mechanism: Mechanical securing for stable hold and easy handling

Compatible Mount

Full modularity and complete freedom of choice between displays: thanks to the identical interface, you can replace the SmartphoneGrip with the Kiox 300 or Kiox 500. The Kiox is ideal for sporty use, while your smartphone is the perfect display for more relaxed rides, for example through the city.

If your e-bike is not equipped with a Kiox display, you need to install a Bosch 1-arm mount in order to attach the SmartphoneGrip. This mount is not included in the scope of delivery. The required mount depends on your handlebar diameter – either 31.8 mm or 35 mm.

• Bosch 1-arm mount 31.8 mm
• Bosch 1-arm mount 35.0 mm

Measurements

• Weight: approx. 75 g
• Dimensions (L x W x D): 65.2 x 75.8 x 32.9 mm
• Smartphone dimensions (including case): H: 6.8 - 13 mm, W: 67 - 88 mm, L: 123 - 175 mm
• Maximum total weight (including case): 276 g

Technical Data

• Smartphone platform: iPhone / Android
• Smartphone charging function: inductive, or via USB-C to USB-C / USB-C to Lightning
• Charging power via USB port: 7.5 W (1.5 A @ 5 V), efficiency > 67%
• Inductive charging power: 5 W

Compatibility

• The SmartphoneGrip is not suitable for paths with drops higher than 15 cm or for rides involving jumps.
• Supported smartphone dimensions including camera bump and case: H: 6.8 – 13 mm, W: 67 – 88 mm, L: 123 – 175 mm.
• Suitable for smartphones with a maximum total weight of 276 g including case.
• Flip covers and wallet-style cases are not supported.
• For the Performance Line Speed, the SmartphoneGrip is only compatible in combination with Purion 200.
