Bosch GPS retrofit kit ConnectModule for BDU38YY (BCM3100)

Bosch GPS retrofit kit ConnectModule for BDU38YY (BCM3100)

The ConnectModule is the hardware component required to be able to use the eBike Alarm service and thus significantly improve theft protection for eBikes with the smart system from Bosch. It is equipped with motion sensors, a radio and GPS module and its own battery. This ensures that the eBike alarm continues to function even if the eBike's main battery has been removed. The ConnectModule mounted under the motor cover uses its sensors to recognise movements of the eBike and initially triggers a local alarm. In a second stage, the current position of the eBike is determined via the GPS module, transmitted via mobile radio (LTE and NB-IoT) and displayed in the eBike Flow app.

The ConnectModule is installed invisibly on the eBike and equips it with GPS, a SIM card and motion sensors.

• The eBiker remains connected to the eBike via the eBike Flow app and can use the premium services of the Flow+ subscription.
• eBike Alarm, for example, offers smart theft protection for worry-free parking, including location tracking and a two-stage alarm.
• A paid Flow+ subscription is required for the ConnectModule to work. The Flow+ subscription is free for the first 12 months.

Hardware facts

• Mandatory requirement for using the eBike Alarm anti-theft service
• Invisibly installed in the eBike (under the motor cover)
• Integrated radio and GNSS module, motion sensors and own battery
• eBike Alarm can be activated after installation via the eBike Flow app (Flow+ subscription)

Compatibility

• For eBikes with the smart system from Bosch
• Only if ‘Connect Module ready’ is enabled in the Bosch DiagnosticTool 3
• Suitable for drive unit BDU38YY (Bosch Performance CX Gen. 5)

Note: Installation and repairs may only be carried out by authorised specialist dealers. Installation requires specialised knowledge. Incorrect installation may result in the ConnectModule or the eBike no longer being able to be operated in compliance with the law.

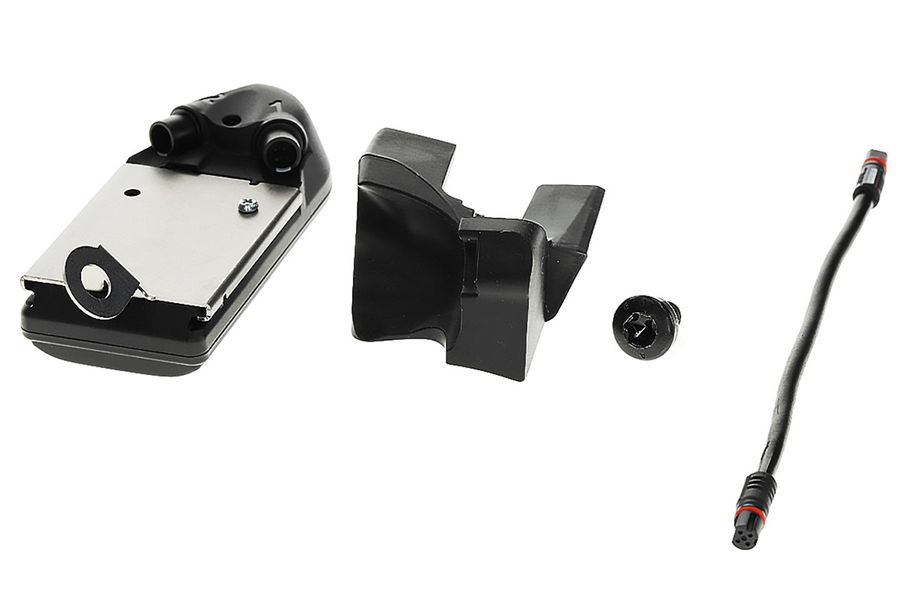

Scope of delivery

• 1x ConnectModule EB1310000B
• 1x mounting plate EB13900019
• 1x screw mounting plate EB13200031
• 1x bracket EB13900018
• 1x cable 100 mm EB1212003S
• 1x screw EB112000TA
• 1x operating and installation instructions
