Bosch Display Kiox 500 (BHU3700) Smart System

Bosch - Bosch Smart System Kiox500 Display

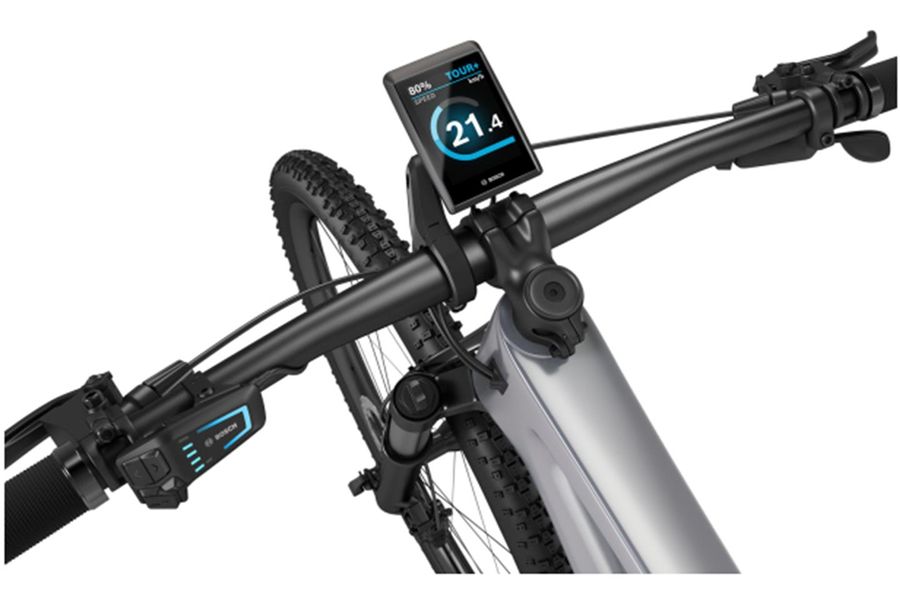

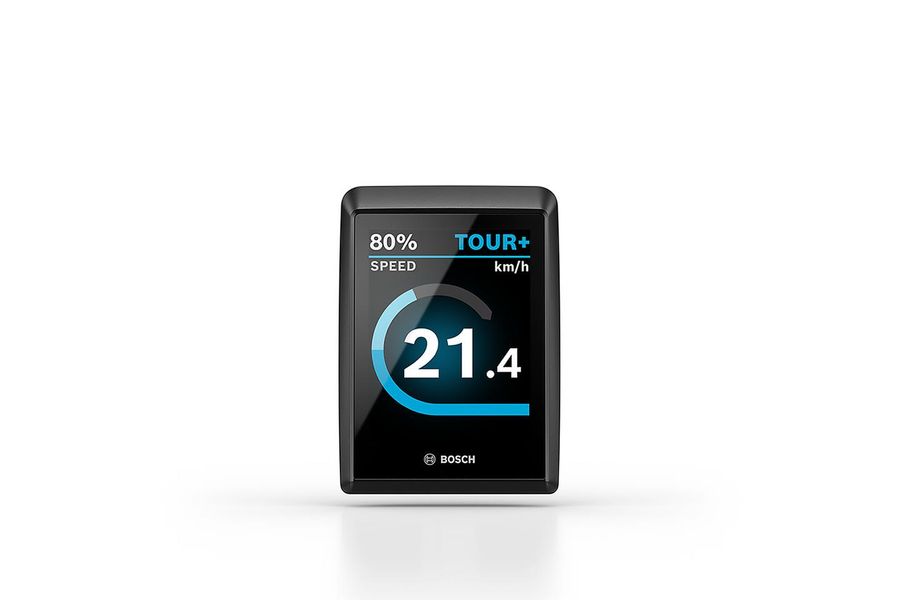

Kiox500 is the display for the smart system and your intelligent and robust companion for sporty tours. It can be operated intuitively via the LED Remote or the Mini Remote, is compact and offers a splash-proof and dust-proof colour display that is easy to read. Fully networked in the smart system, it continuously receives new functions through the eBike Flow app.

Technical details

• Display: 2.8-inch TFT display (240 x 320 pixels)
• Operating temperature: -5°C to 40°C
• Storage temperature: 10°C to 40°C
• Protection class: IP55
• Dimensions: 61 x 86 x 16 mm
• Weight: 61 g

Features

• eBike Flow App: Even after purchase: Receive regular updates over-the-air via the eBike Flow app for your Kiox500 and your eBike - e.g. in the area of theft protection.
• eBike Lock: eBike Lock, as additional theft protection for your eBike, is a free feature in the smart system. Activate the motor assistance using your smartphone as a digital key. The lock status is shown on the display of the Kiox500 and in the eBike Flow app.
• Navigation function: Route planning is done via the eBike Flow app. Connect your eBike to the app and continuously transfer the route to your Kiox500 display. Let yourself be navigated with the help of helpful turn-by-turn directions and a clear, minimalist display.
• Activity Tracking: As you ride, Kiox500 automatically records your trip and fitness data such as cadence, power and calories burned. New: Kiox500 now also shows you the current altitude, ascent and maximum altitude. You can synchronise the recorded activities with komoot, Apple Health and Strava via the eBike Flow app.
• Smart push assist and hill hold: Kiox500 offers helpful support, e.g. in the form of a guide to the smart push aid, including the automatic hill hold function to make it easier to master steep climbs while walking.
• Retrofittability: Kiox 500 can be retrofitted for eBikes with the smart system.

Scope of delivery

• 1 Kiox500 (BHU3700)
• incl. operating and assembly instructions

Compatibility

• Compatible with all Bosch Smart Systems (BES 3), no compatibility with Bosch E-Bike System 2 and 1.
