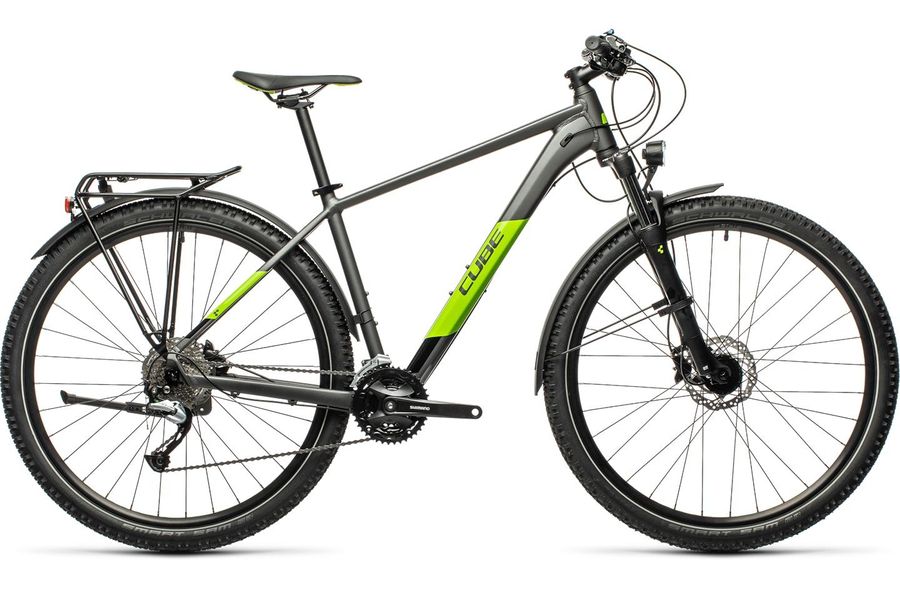

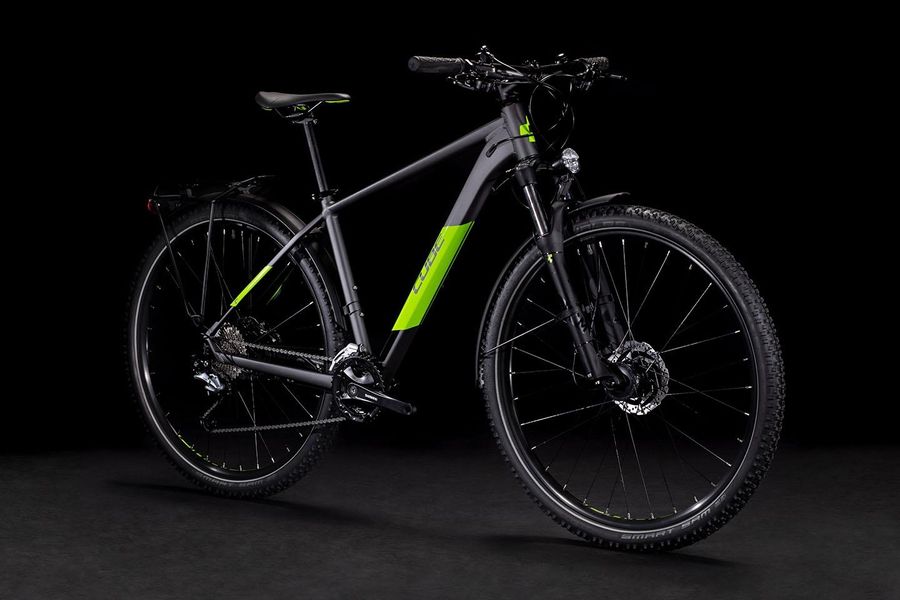

CUBE Aim SL Allroad (2021)
Tackle the urban jungle just as easily as forested mountain trails, thanks to the included luggage carrier, kickstand and an integrated lighting system. The Shimano 27-speed gear system's huge range and slick shifting will get you up any climb with ease.
Highlights
Lighting
Trelock LS 592
Frame
Aluminium Lite
Fork
SR Suntour XCM RL Disc (100mm)
Tires
Schwalbe Smart Sam
Shifter
Shimano Altus/Acera (3x9)
Brakes
Shimano BR-MT200 (160/160)
CUBE Aim SL Allroad
Tackle the urban jungle just as easily as forested mountain trails, thanks to the included luggage carrier, kickstand and an integrated lighting system. The Shimano 27-speed gear system's huge range and slick shifting will get you up any climb with ease, whilst powerful all-weather hydraulic disc brakes ensure you'll be safe come rain or shine. And the Suntour suspension fork has a remote lockout and 100mm of travel for comfort and control, from potholed street to rocky path.
Frame

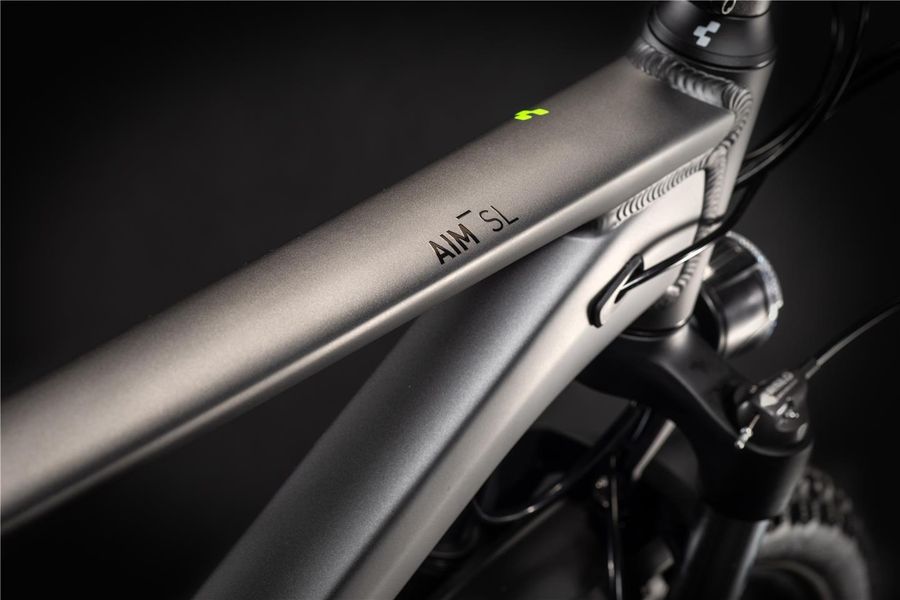

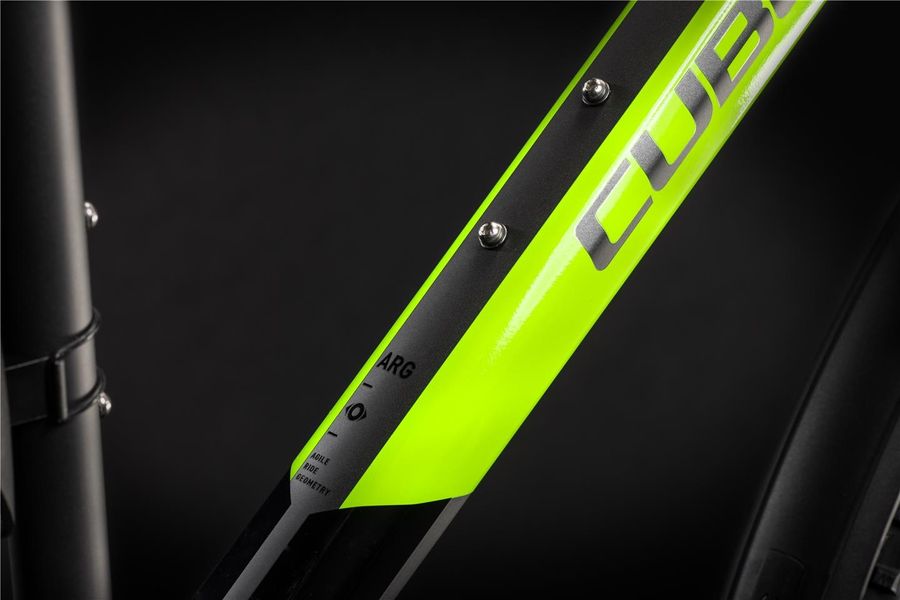

You want a bike that responds quickly, safely and intuitively. That's why the Aim's top and down tubes have complex profiles - to ensure that it steers accurately and accelerates effortlessly. Built with 6061 aluminium using our Advanced Mechancial Forming process, it's your guarantee of a lightweight, comfortable and durable frame. Internally routed cables keep your gears running smoothly with reduced maintenance, and Agile Ride Geometry delivers assured, nimble handling to put a smile on your face, every time. There's even rack and guard mounts, too, for added versatility.
Here you can find more information about all Aim models:
Additional Information
Bike category | Hardtail MTB |
---|---|
Brand | Cube |
Colour | grey'n'green |
Weight | 16,7 kg |
Frame | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
Frame type | Diamond |
Fork | SR Suntour XCM RL Disc, 100mm, Remote Lockout |
Wheel Size | 27,5'', 29'' |
Tires | Schwalbe Smart Sam, Active, 2.25 |
Rims | CUBE ZX20, 32H, Disc |
Rear derailleur | Shimano RD-M3100, 9-Speed |
Front derailleur | Shimano FD-M3000, Top Swing, 31.8mm Clamp |
Shifters | Shimano SL-M2010, Rapidfire-Plus |
Crank | Shimano FC-MT101, 40x30x22T, 175mm |
Cassette | Shimano CS-HG201, 11-36T |
Chain | KMC X9 |
Front hub | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
Rear hub | Shimano FH-TX505, QR, Centerlock |
Brake | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
Handlebar | CUBE Rise Trail Bar, 680mm |
Stem | CUBE Performance Stem Pro, 31.8mm |
Headset | CUBE FPH863, Semi-Integrated |

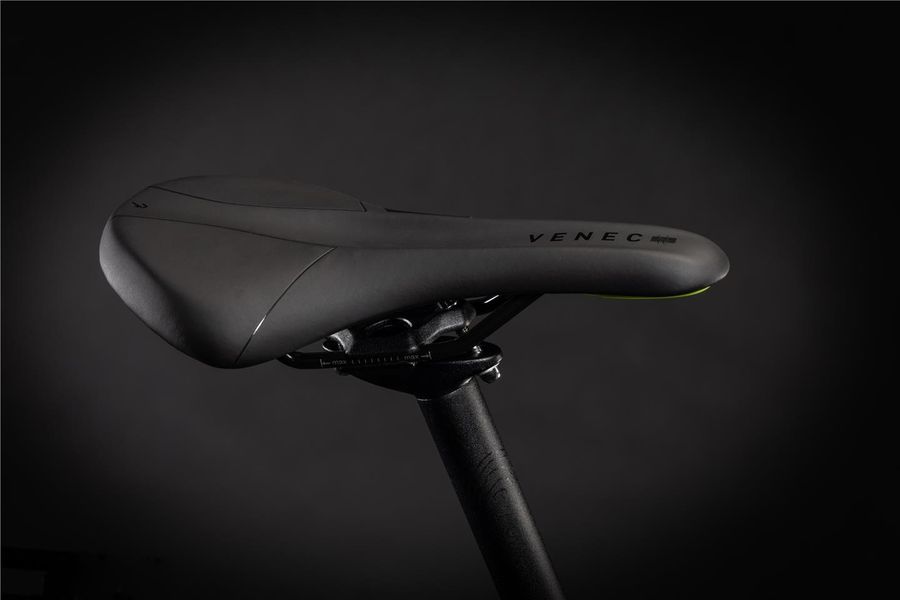

Saddle | Natural Fit Venec Lite |
Seatpost | CUBE Performance Post, 27.2mm |
Saddle clamp | CUBE Varioclose, 31.8mm |
Headlight | Trelock LS 592 |
Back light | Trelock LS 613 Duo Flat |
Mudguards | ACID 60 |

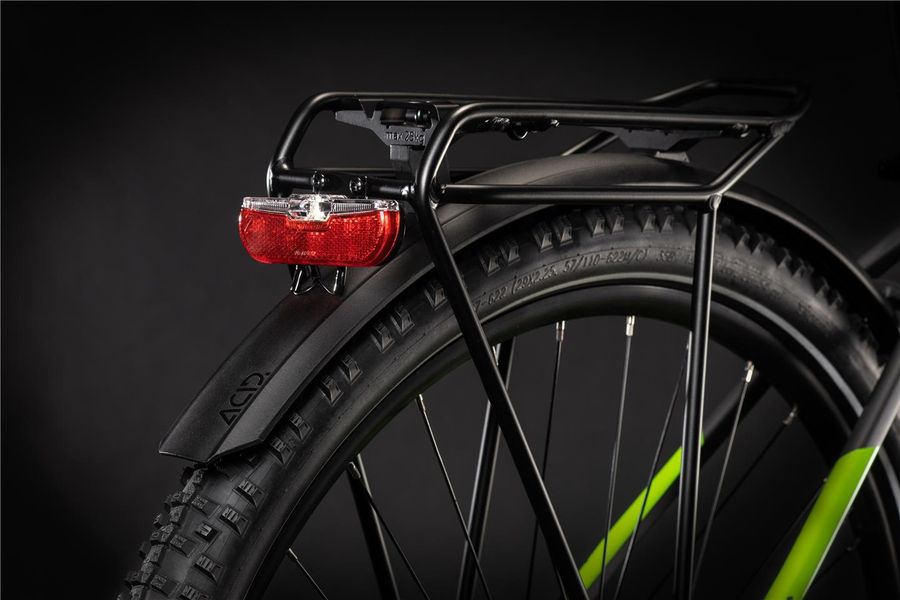

Rack | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
Bike stand | CUBEstand Pro, Adjustable |
Annotation | The illustration may vary. The manufacturer reserves the right to replace certain components with components of equivalent quality. |
Manufacturer Information | Pending System GmbH & Co. KG |
